Sony STR-DA5300ES - 7-7. ANALOG BOARD SECTION

179
STR-DA5300ES
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 1-823-669-51 WIRE (FLAT TYPE) (11 CORE) (AEP, ECE, UK)
301 1-828-956-51 WIRE (FLAT TYPE) (9 CORE) (US, CND)
302 A-1252-336-A ANALOG BOARD, COMPLETE (US, CND)
302 A-1252-337-A ANALOG BOARD, COMPLETE (AEP, ECE, UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-682-547-04 SCREW +B 3X6 (US, CND)
#1
#1
#1
#3
#1
MAIN board section
heat sink section
not supplied
not supplied
(CONNECTOR 2 board)
not supplied
(CONNECTOR 1 board)
302
301
(US, CND)

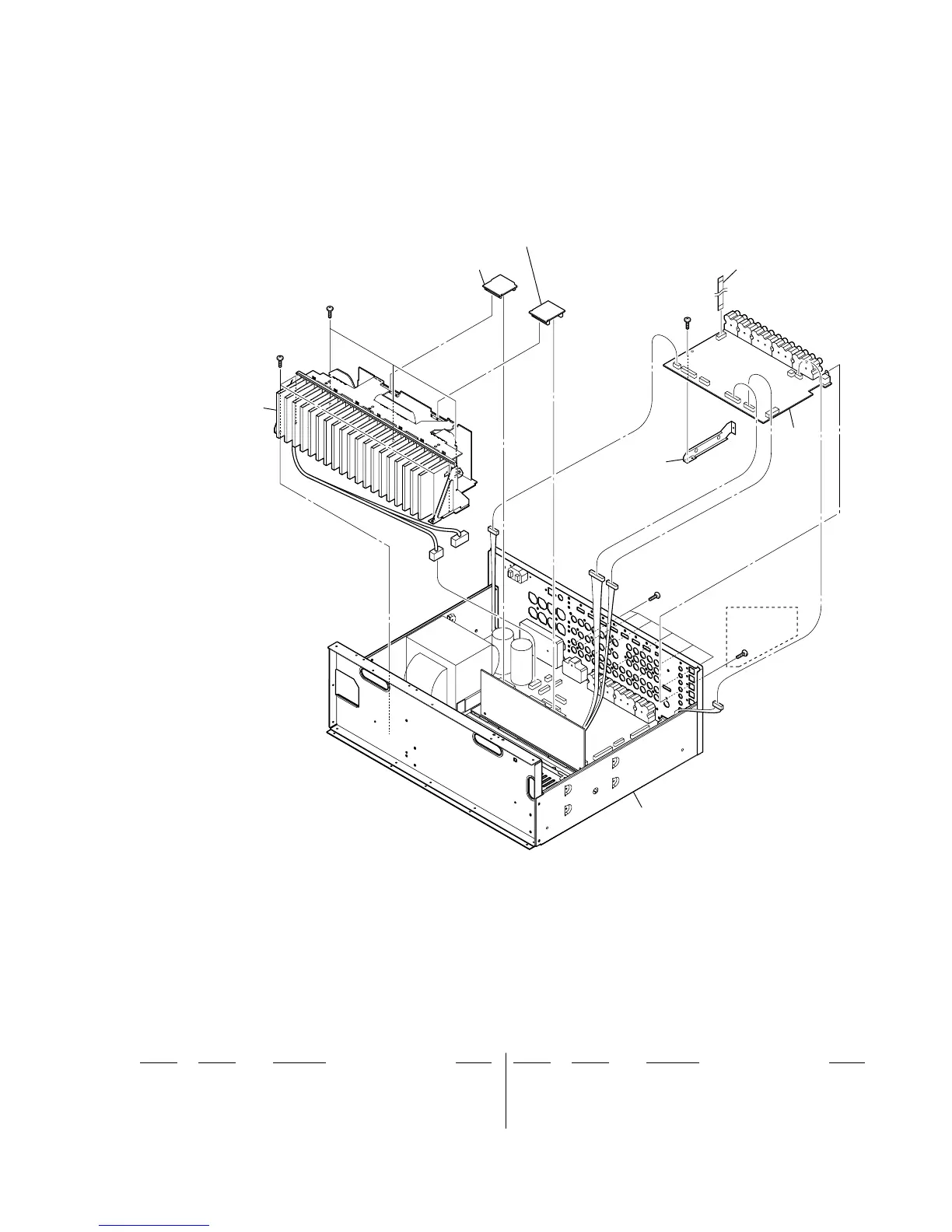

7-7. ANALOG BOARD SECTION
Ver. 1.1
