Sony STR-DA5300ES - 7-3. D-VIDEO BOARD SECTION

175
STR-DA5300ES
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 2-698-310-01 LID (A2) (BLACK)
101 2-698-310-11 LID (A2) (SILVER)
102 3-701-748-00 CLAMP
9 103 A-1317-984-A D-VIDEO BOARD, COMPLETE (for SERVICE)
(US, CND)
9 103 A-1317-985-A D-VIDEO BOARD, COMPLETE (for SERVICE)
(AEP, ECE, UK)
104 3-077-331-21 +BV3 (3-CR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-682-547-04 SCREW +B 3X6

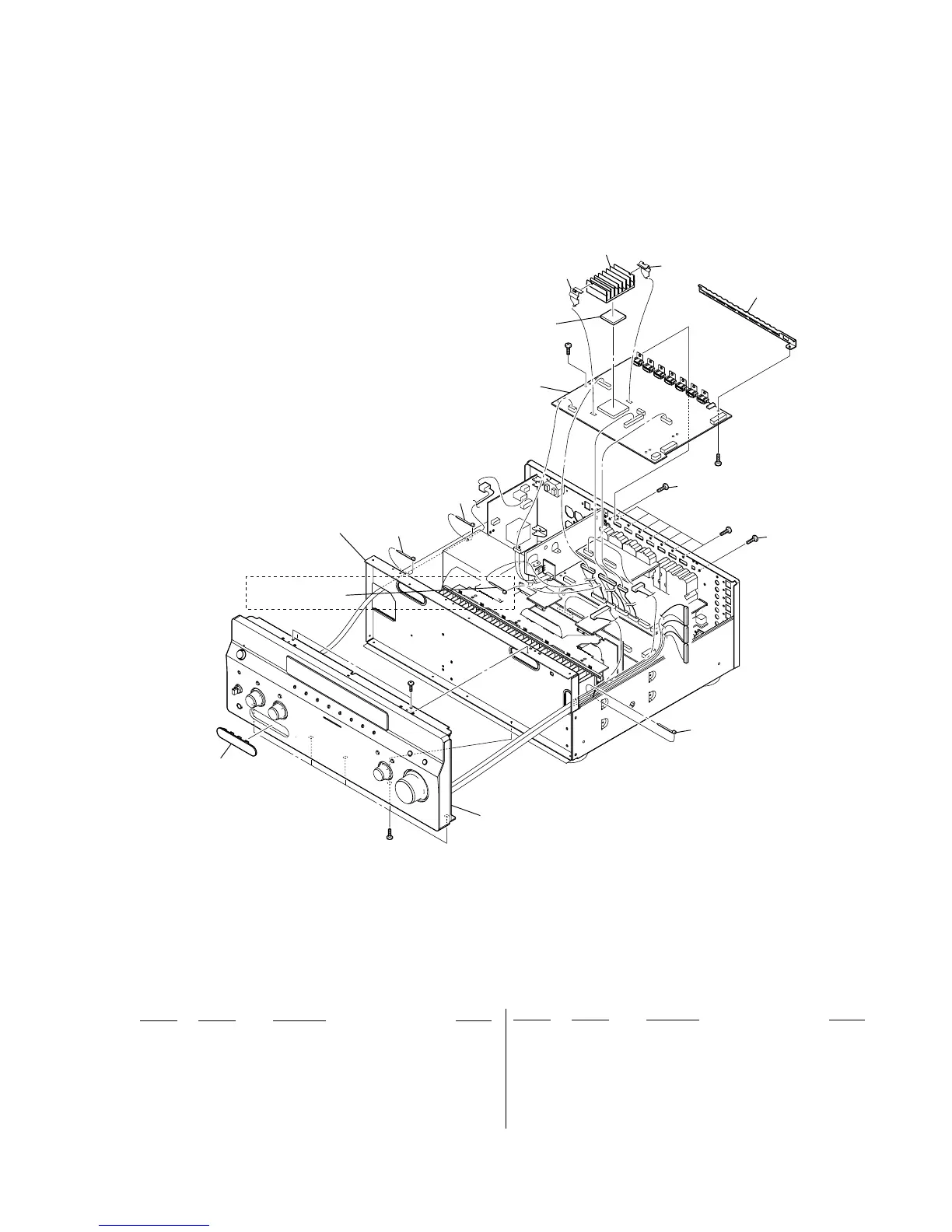

7-3. D-VIDEO BOARD SECTION
#1
A-VIDEO board section
#1
DISPLAY board section
101
102
102
103
102
102
104
104
#3
#1
#1
not supplied
not supplied
not supplied
not supplied
not supplied
(US, CND)
Ver. 1.1
