Sony STR-DA5500ES - Page 105

STR-DA5500ES
STR-DA5500ES
105105
ra
IC2208 wk (XOUT)
1 V/DIV, 20 ns/DIV
4 Vp-p
40.7 ns
yd
IC5208 tj (XOUT)
1 V/DIV, 50 ns/DIV
80 ns
3.5 Vp-p
ya
IC5002 A2 (XTAL)
1 V/DIV, 50 ns/DIV
81.4 ns
3 Vp-p
ys
IC5202 A2 (XTAL)
1 V/DIV, 20 ns/DIV
33 ns
2 Vp-p
ia
IC8204 qg (XOUT)
2 V/DIV, 200 ns/DIV
270 ns
3.44 Vp-p
id
X8003 (OUT)
2 V/DIV, 20 ns/DIV
37.4 ns
4 Vp-p
is
IC6801 wh (OSCOUT)
2 V/DIV, 20 ns/DIV
22.6 ns
3.2 Vp-p
es
IC3604 <zvx (XOUT)
2 V/DIV, 20 ns/DIV
30.2 ns
3.4 Vp-p
ea
IC3511 4 (XTALOUT)
1 V/DIV, 10 ns/DIV
35.6 ns
2.7 Vp-p
ed
IC3610 rs (XO)
2 V/DIV, 200 ns/DIV
248 ns
2.4 Vp-p
qa
IC6002 1 (VIN3)
(Color bar)
500 mV/DIV, 20 Ps/DIV
1.2 Vp-p
qs
IC6002 3 (VIN2)
(Color bar)
500 mV/DIV, 20 Ps/DIV
1.2 Vp-p
qd
IC6002 5 (VOUT2)
(Color bar)
1 V/DIV, 20 Ps/DIV
2.4 Vp-p
qf
IC6001 3 (CH1IN2)
(Color bar)
500 mV/DIV, 20 Ps/DIV
H
1 Vp-p
qg
IC6001 0 (CH2IN2)
(Color bar)
200 mV/DIV, 20 Ps/DIV
H
0.6 Vp-p
qh
IC6001 qg (CH3IN2)
(Color bar)
200 mV/DIV, 20 Ps/DIV
H
0.6 Vp-p
qj
IC6001 w; (CH3OUT)
(Color bar)
500 mV/DIV, 20 Ps/DIV
H
1.4 Vp-p
qk
IC6001 ws (CH2OUT)
(Color bar)
500 mV/DIV, 20 Ps/DIV
H
1.4 Vp-p
ql
IC6001 wf (CH1OUT)
(Color bar)
1 V/DIV, 20 Ps/DIV
H
2 Vp-p
w;
IC6007 2 (CV-1)
(Color bar)
500 mV/DIV, 20 Ps/DIV
0.6 Vp-p
wa
IC6007 td (CV-OUT1)
(Color bar)
500 mV/DIV, 20 Ps/DIV
1.2 Vp-p
1
IC2514 rd (XI)
2 V/DIV, 200 ns/DIV
250 ns
3.5 Vp-p
us
Q705, 706 (Base)
2 V/DIV, 2 Ps/DIV
4.6 Ps
4.4 Vp-p
ud
Q705, 706 (Collector)
20 V/DIV, 2 Ps/DIV
4.6 Ps
41.6 Vp-p
ua
IC105 9 (OSC OUT)
2 V/DIV, 100 ns/DIV
200 ns
3.6 Vp-p
– A-VIDEO Board –– NETWORK Board –– D-VIDEO Board –

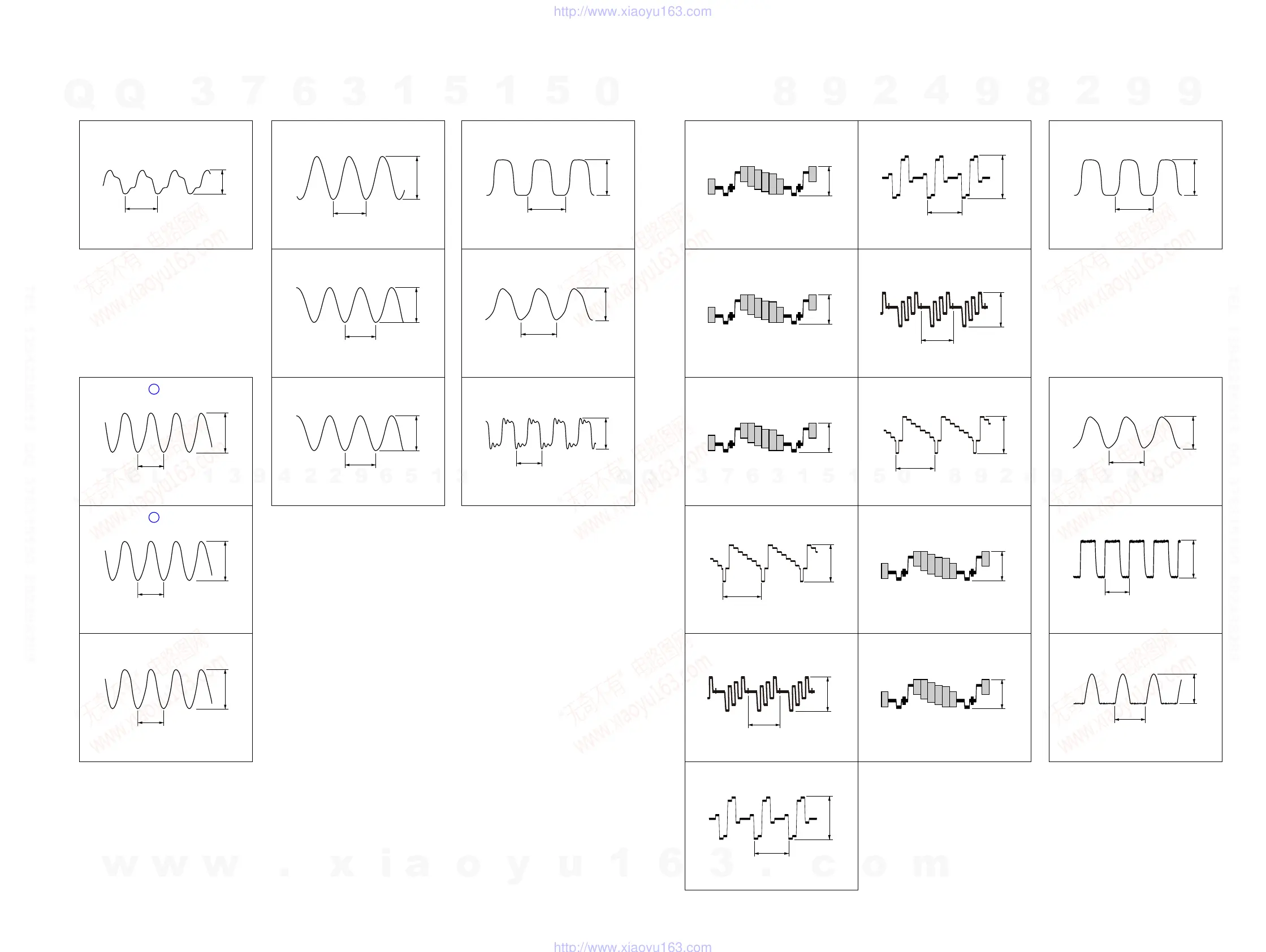

• Waveforms
– D-AUDIO Board –
– DSP Board –
– CONTROL Board –
– DISPLAY Board –
