STR-DA5500ES

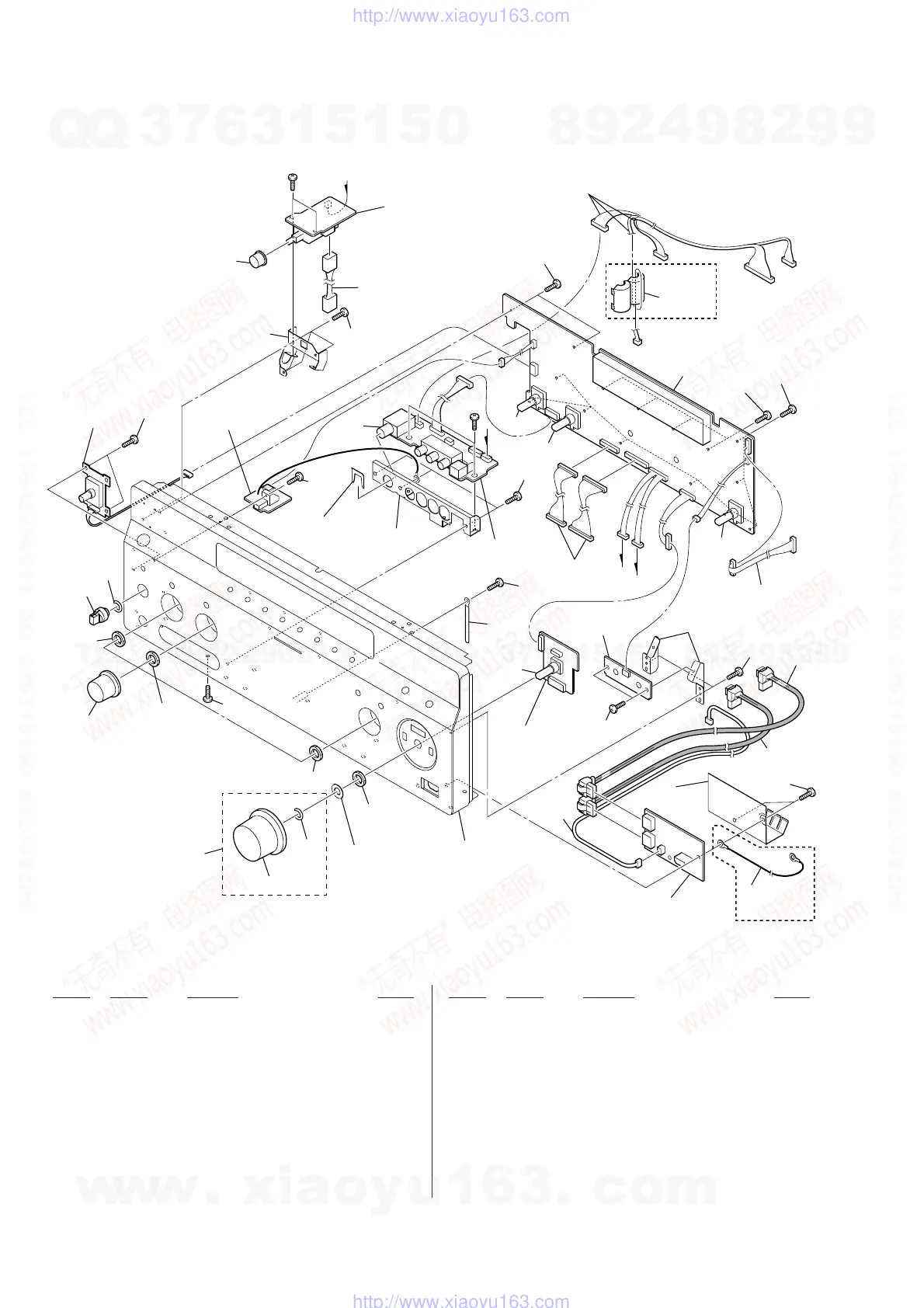

6-6. DISPLAY BOARD SECTION
251 X-2176-946-1 KNOB (VOL) ASSY
252 3-704-515-22 SCREW (BV/RING)
253 2-661-141-31 MENU KNOB
254 3-087-053-01 +BVTP2.6 (3CR)
256 X-4955-616-1 BUTTON (POWER) ASSY
257 A-1710-797-A DISPLAY BOARD, COMPLETE (US, CND)
257 A-1710-895-A DISPLAY BOARD, COMPLETE (AEP, UK)
258 3-087-053-11 +BVTP2.6 (3CR)
259 3-350-426-01 SPRING, RING
260 4-246-103-22 KNOB (SPEAKER)
261 2-893-374-01 SPRING, RING
262 1-543-793-11 FILTER, CLAMP (FERRITE CORE) (AEP, UK)
263 1-966-745-11 HARNESS (With white line mark)
264 1-966-746-11 HARNESS
265 4-237-065-01 CLAMP (L35)
J261 1-815-313-11 JACK (PHONES)
S231 1-418-725-41 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
S713 1-418-400-11 ENCODER, ROTARY (TONE)
S714 1-418-400-11 ENCODER, ROTARY (TUNING)
S715 1-418-400-11 ENCODER, ROTARY (INPUT SELECTOR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
