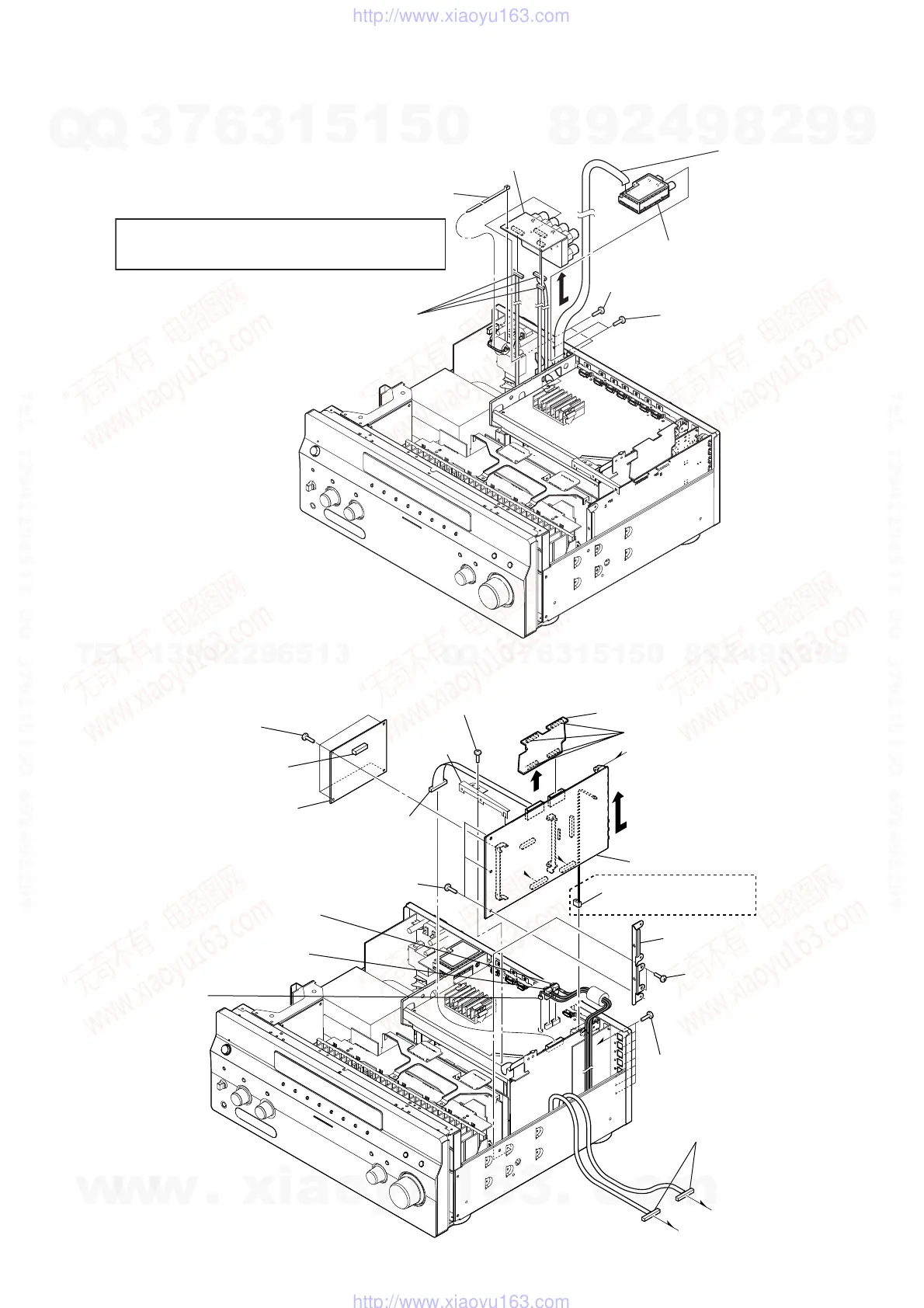

2-3. TUNER (FM/AM), SPTM BOARD
3 tuner (FM/AM)
1 wire (flat type) (9 core)
(US, Canadian models)
wire (flat type) (11 core)
(AEP, UK models)
(tuner (FM/AM))
6
8 SPTM board
5 two screws (BV/ring)
7 three connectors
(CX4101, CX4102,
CX4103)
4 Cut the binding band (taiton).
2
two screws
(
BVTT2.6
u
6
)
Note: In reassembling, use new binding band (taiton)
to fasten the binding band (taiton) same as before.
2-4. DSP/D-AUDIO BOARDS
qg three screws
(BVTP3 u8)
A
B
A
B
C
C
qj D-AUDIO board
5 connector
(CN3525)
qh bracket (digital)
7 two screws
(BVTP3 u8)
0
3 D CONNECT board
2 four connectors
(CN2403, CN2404, CN2405, CN2406)
6 eight screws
(BVTP3 u8)
4 connector
(CN3571)
qa two connectors
(CN2204, CN2207)
qd connector
(CN2206)
qf DSP board
qs four screws
(BVTP3 u8)
8 screw
(BVTP3 u8)
9 bracket
(D-AU)
1 harnes (with white line mark)
connector (CN3515)
1 harnes connector
(CN3514)
1 connector
(CN3507)
(AEP, UK)
