Sony STR-DA5500ES - CIS;CONTROL Boards; D-VIDEO;NETWORK Boards

STR-DA5500ES
12

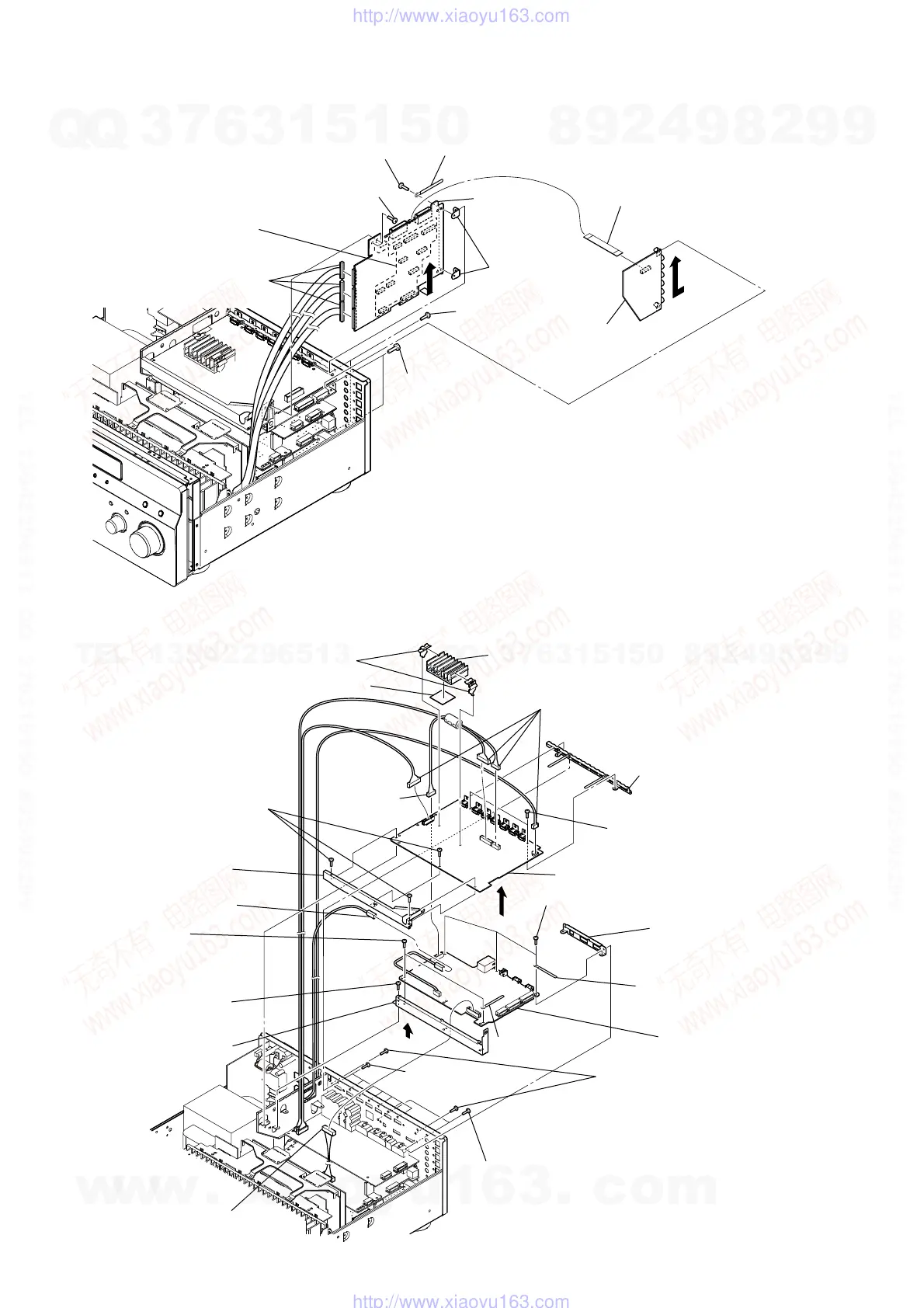

2-6. D-VIDEO/NETWORK BOARDS
2-5. CIS/CONTROL BOARDS
qs CONTROL
board
2 two screws
(BVTP3 u8)
5 two screws
(BVTP3 u8)
4 two screws
(BVTP3 u8)
9 two screws
(BVTP3 u8)
qa two brackets
(control)
q; clamp (L35)
8 three connectors
(CN2516, CN2519, CN2520)
3 CIS board
6 eleven connectors
(CN2502, CN2503, CN2504,
CN2505, CN2507, CN2508,
CN2509, CN2511, CN2512,
CN2513, CN2515)
1 wire (flat type) (13 core)
(CIS board (CN807),
CONTROL board (CN2510))
7
2 two screws (BV3)
3 seven screws
(B3 u6)
1 four connectors
(CN3509, CN3607,
CN3609, CN3610)
qd connector
(CN8200)
qd connector
(CN8006)
qd connector
qf two screws
(BVTP3 u8)
qf screw
(BVTP3 u8)
9 two HS holders
8 bracket (HDMI-A64) block
qk bracket (NW-F)
5 reinforcement plate (HDMI)
wa bracket (DMPORT-A64)
qj clamp (L35)
q; heatsink (S58F)
qa radiation sheet (F)
qs D-VIDEO board
ws NETWORK board
4 three screws
(BVTP3 u8)
6
qg
7 two screws
(BVTP3 u8)
qh two screws
(BVTP3 u8)
ql three screws
(BVTP3 u8)
w; clamp (L35)
