STR-DA5500ES
14

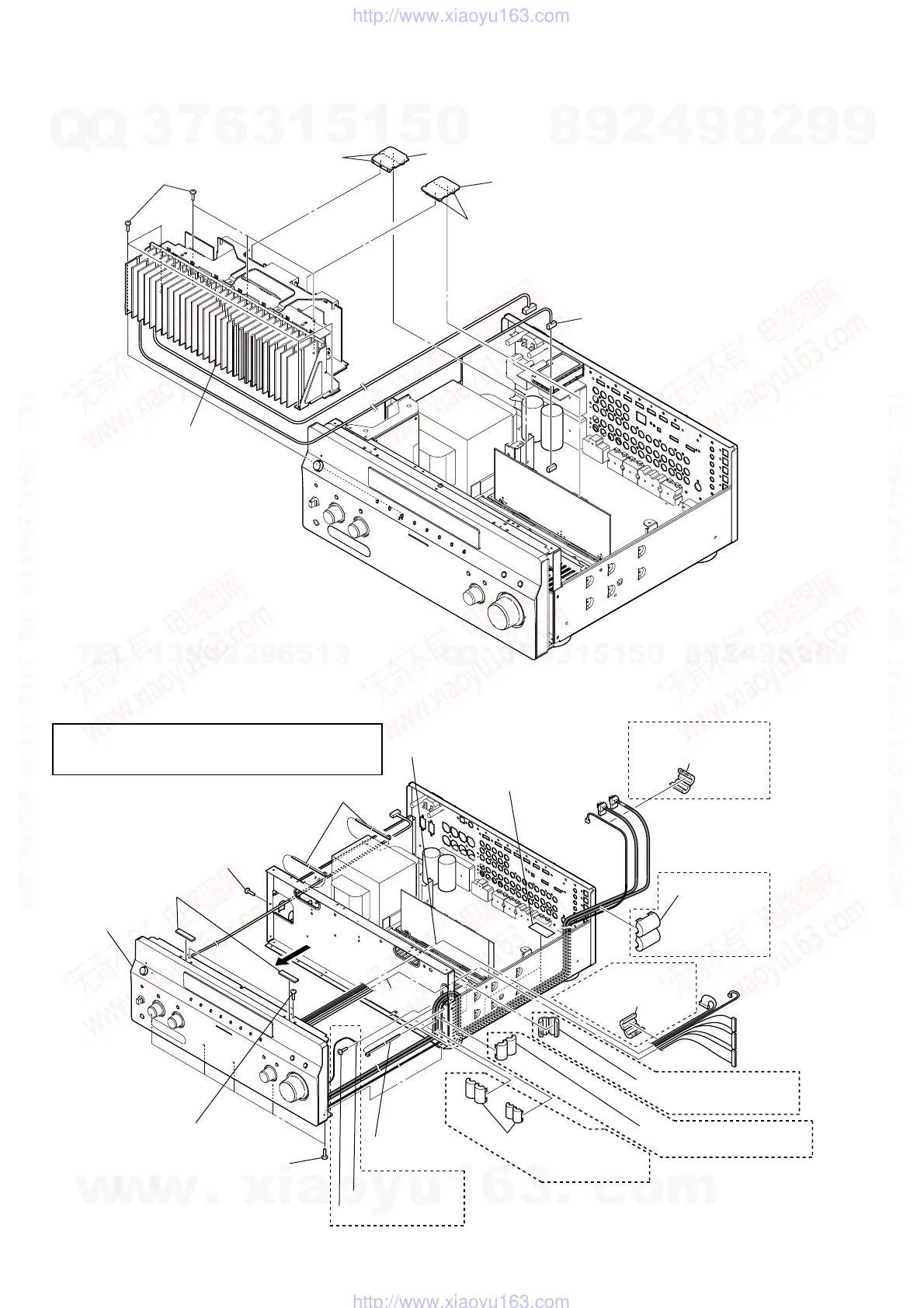

2-9. HEAT SINK BLOCK
1
connector
(CN1405)
2
two connectors
(CN1207, CN1209)
4
two connectors
(CN1205, CN1206)
6
seven screws
(BV3
u
8 CU)
3
CONNECTOR1 board
7
heat sink block
5
CONNECTOR2 board
2-10. FRONT PANEL BLOCK
(AEP, UK)
(AEP, UK)
7
qs
two spacers (408)
3
two saranet cushions
5
screw
(BVTP3
u
8)
5
five screws
(BVTP3
u
8)
8
screw (BVTP3
u
8)
9
terminal
5
two screws
(BVTP3
u
8)
qd
front panel block
6
Cut the binding band (taiton).
q;
Cut the binding
band (taiton).
4
clamp filter (ferrite core)
qa
clamp filter (ferrite core)
qa
two clamp filters
(ferrite core)
1
clamp filter
(ferrite core)
2
clamp filter
(ferrite core)
1
sleeve ferrite clamp
(US, Canadian)
(US, Canadian)
(US, Canadian)
(US, Canadian)
(US, Canadian)
(AEP, UK)
Note: In reassembling, use new binding band (taiton)
to fasten the binding band (taiton) same as before.
(US, Canadian)
