1-4 (E)
VPL-EX100
5
Rear panel
4
Two screws
(BVTP3
x
10)
3
Eight connector screws
(VPL-EX120/EX145/EX175)/
Six connector screws
(VPL-EX100)
6
Connector sheet
*
The illustration indicates VPL-EX120.
2
Two screws
(K3
x
10)
1
Two blank sheets

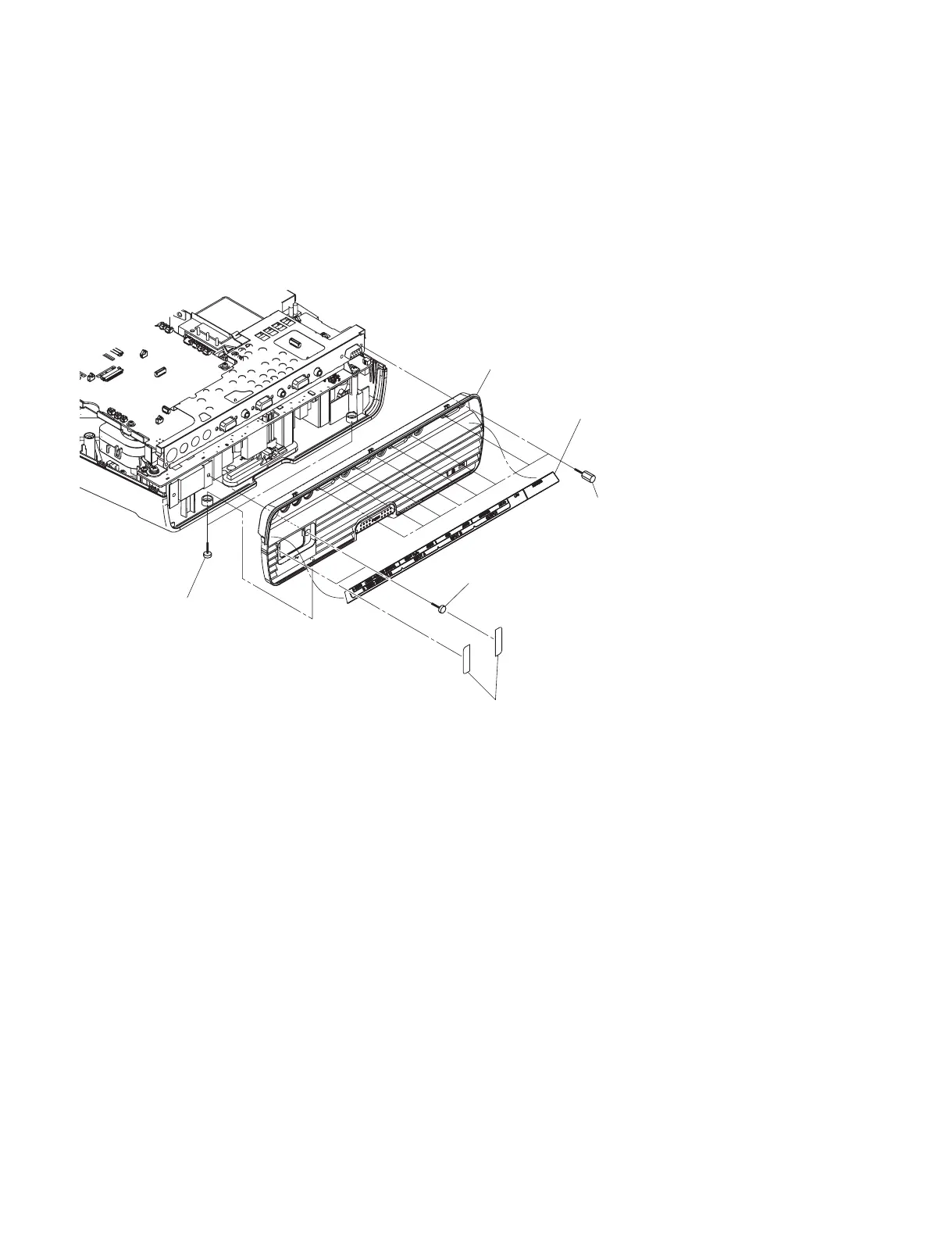

1-3-2. Rear Panel
n
When removing the rear panel, replace the blank sheets with the new one.
Remove the upper case assembly. (Refer to Section 1-3-1.)
