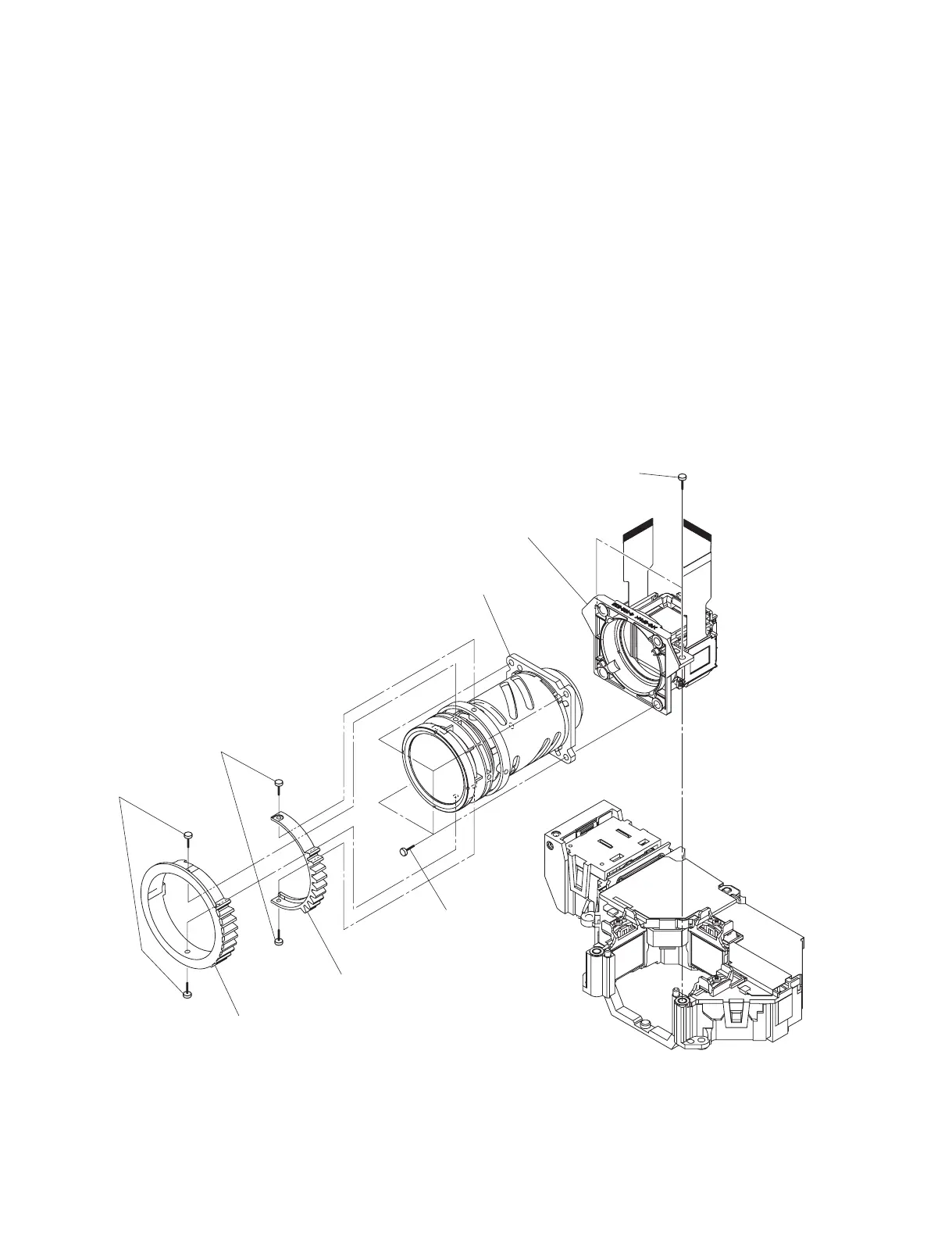

Sony VPL-EX145 - Lens Assembly and S Prism Block Assembly

1-14 (E)
VPL-EX100
1
Four screws
(PSW M3
x
10)
3
Two screws
(P2
x
5)
5
Two screws
(P2
x
5)
7
Two screws
(PSW M3
x
10)
2
Lens assembly
8
S prism block assembly
4
Focus ring
6
Zoom ring
1-3-12. Lens Assembly and S Prism Block Assembly
m
. When the S prism block assembly is replaced, perform the adjustment. (Refer to Section 2-1-1.)
. The focus ring and zoom ring cannot be installed to reverse the removal procedure (steps 3 to 6).
Install them referring to the next page.
. Remove the upper case assembly. (Refer to Section 1-3-1.)
. Remove the rear panel. (Refer to Section 1-3-2.)
. Remove the main board. (Refer to Section 1-3-3.)
. Remove the G board. (Refer to Section 1-3-4.)
. Remove the lamp duct. (Refer to steps 1 and 2 in Section 1-3-5.)
. Remove the speaker. (Refer to Section 1-3-6.)
. Remove the optical block. (Refer to Section 1-3-7.)
