1-20 (E)
VPL-EX100
1

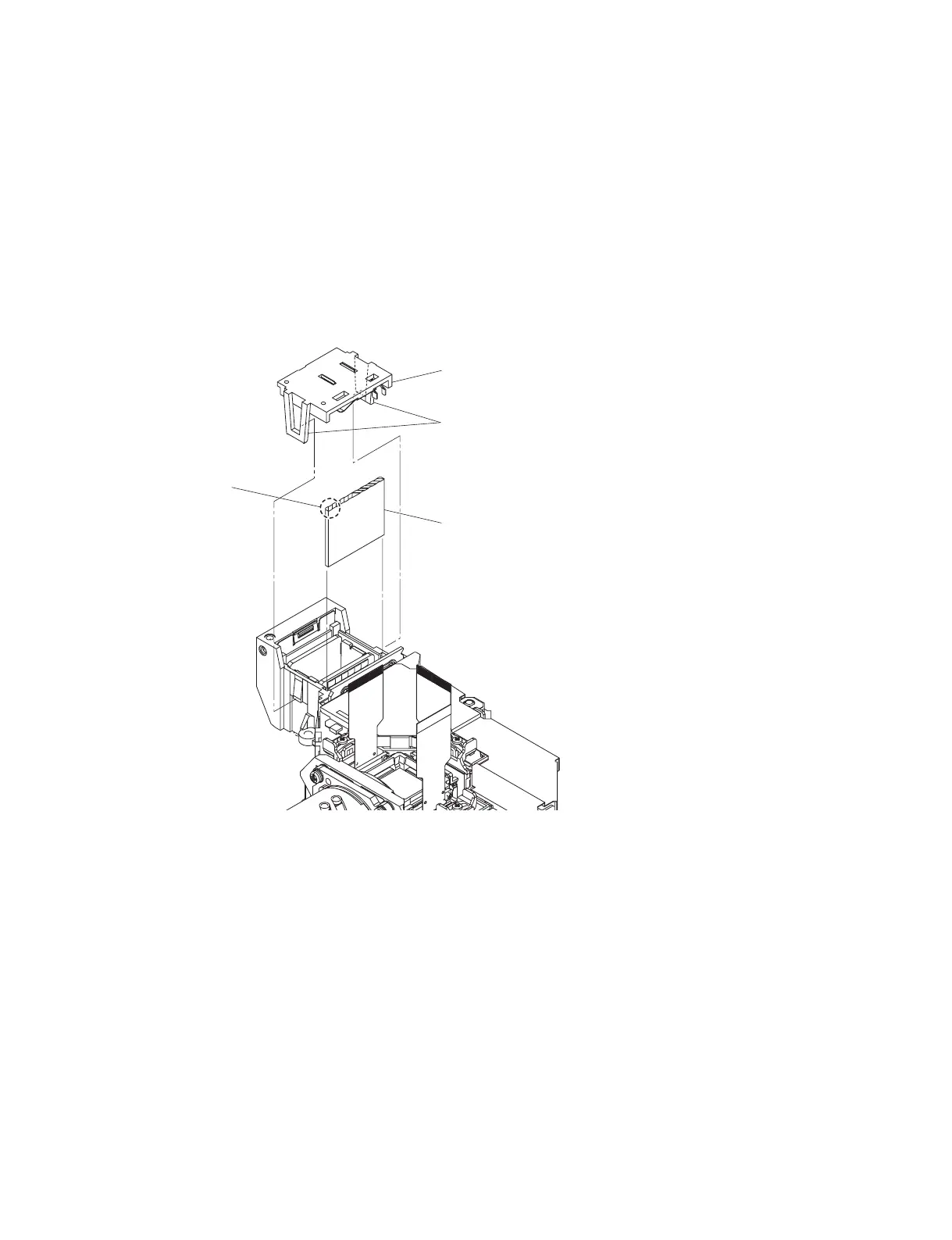

Two hooks
3
S PS assembly
n
When attaching the S PS assembly,
attach with the marking in the direction
as shown in the figure.
2
Unit cover (FE)
Marking
1-3-15. S PS Assembly
. Remove the upper case assembly. (Refer to Section 1-3-1.)
. Remove the rear panel. (Refer to Section 1-3-2.)
. Remove the main board. (Refer to Section 1-3-3.)
. Remove the G board. (Refer to Section 1-3-4.)
. Remove the lamp duct. (Refer to steps 1 and 2 in Section 1-3-5.)
. Remove the speaker. (Refer to Section 1-3-6.)
. Remove the optical block. (Refer to Section 1-3-7.)
To Next Page
