Sony VPL-EX145 - S In-Polarizer (R);(G);(B) Assembly

1-18 (E)
VPL-EX100

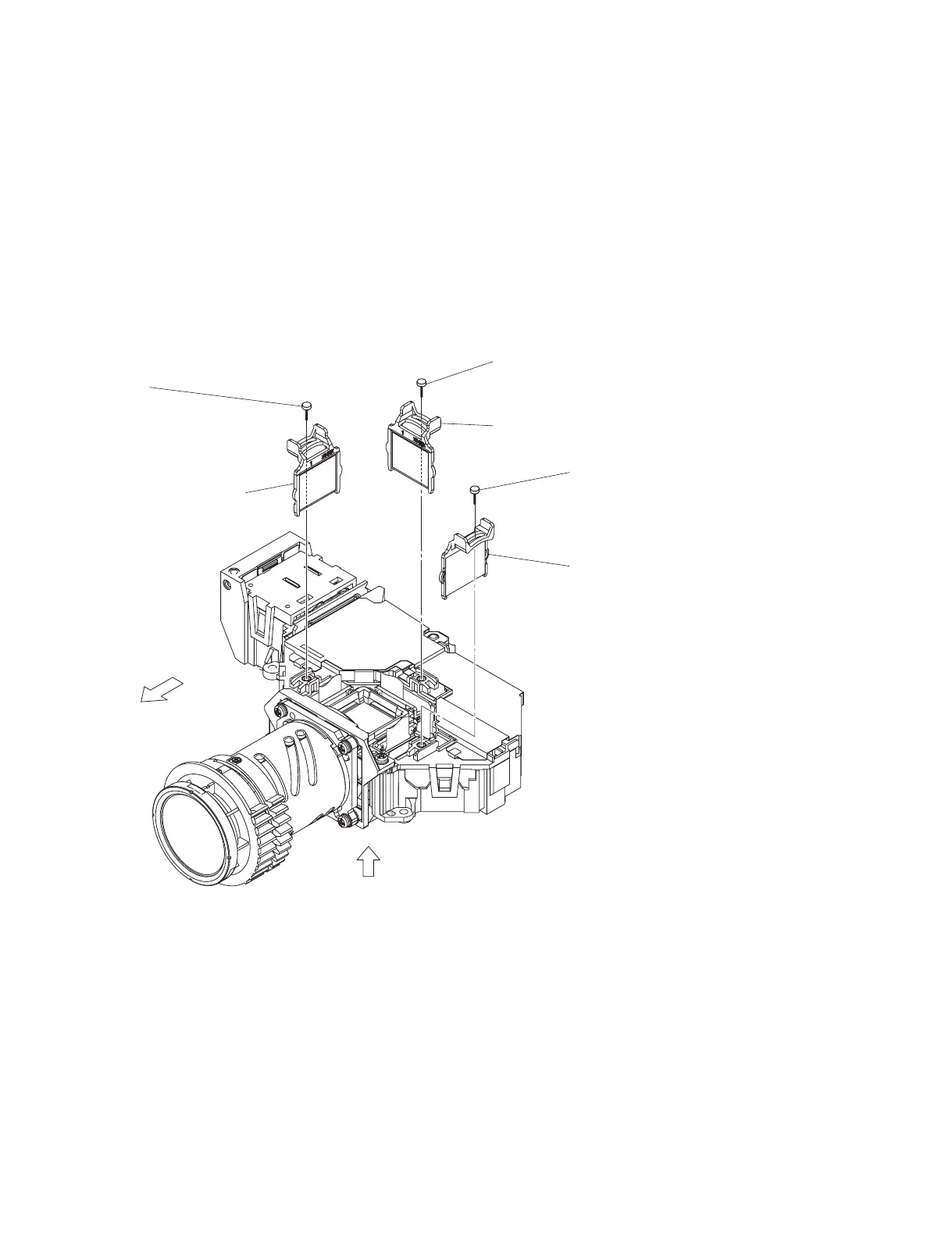

Front side
A
1
Screw
(B2
x
5)
2
S in-polarizer (R) assembly
3
Screw
(B2
x
5)
4
S in-polarizer (G) assembly
5
Screw
(B2
x
5)
6
S in-polarizer (B) assembly
1-3-14. S In-polarizer (R)/(G)/(B) Assembly
. Remove the upper case assembly. (Refer to Section 1-3-1.)
. Remove the rear panel. (Refer to Section 1-3-2.)
. Remove the main board. (Refer to Section 1-3-3.)
. Remove the G board. (Refer to Section 1-3-4.)
. Remove the lamp duct. (Refer to steps 1 and 2 in Section 1-3-5.)
. Remove the speaker. (Refer to Section 1-3-6.)
. Remove the optical block. (Refer to Section 1-3-7.)
