Sony VPL-EX145 - S Out-Polarizer (G);(B) Assembly and 2-5-5. S Out-Pre-Polarizer (R);(G);(B) Assembly

1-16 (E)
VPL-EX100
1
S out-pre-polarizer (R) assembly
2
S out-pre-polarizer (G) assembly
Front side
3
S out-polarizer (G) assembly
A
4
S out-pre-polarizer (B) assembly
5
S out-polarizer (B) assembly

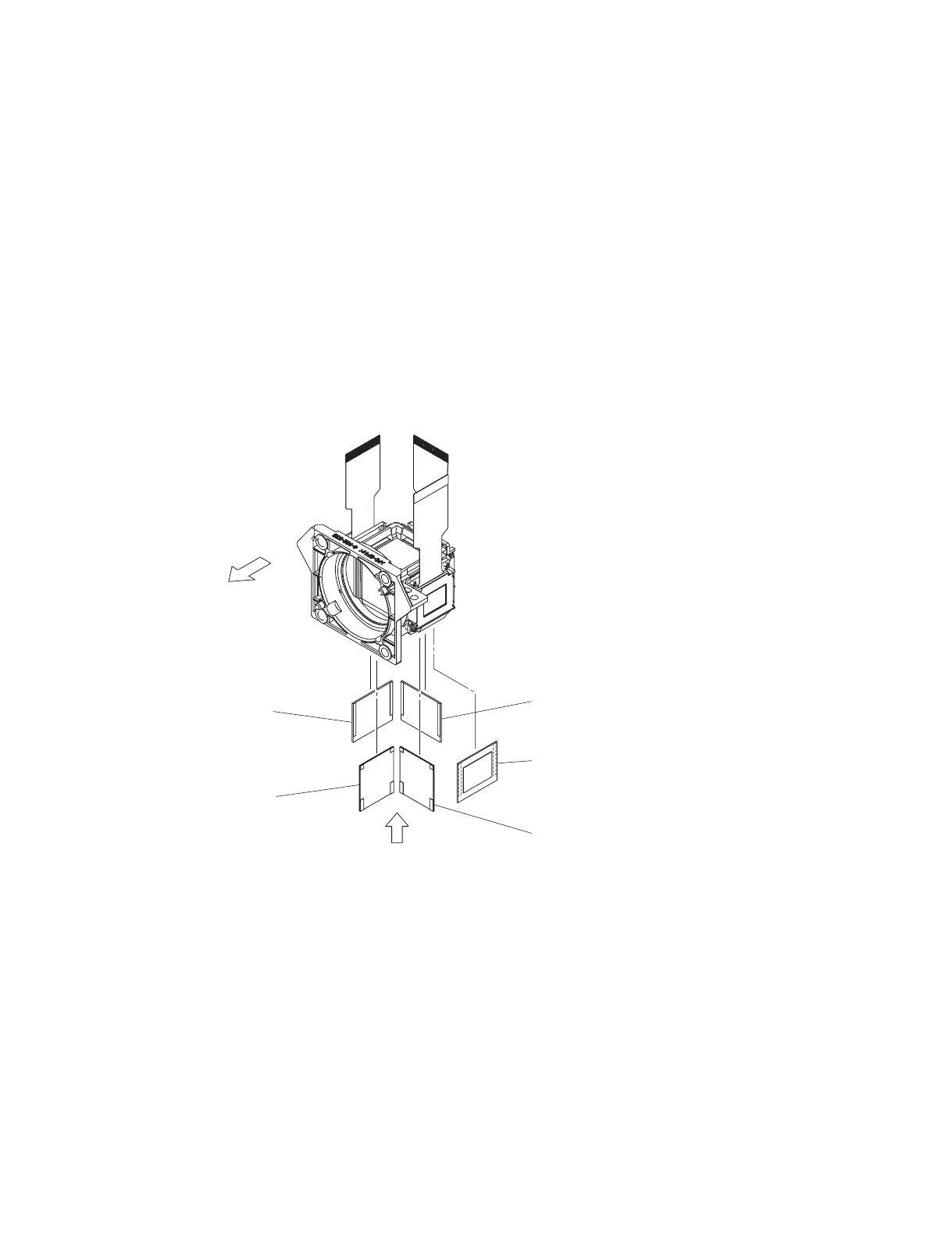

1-3-13. S Out-polarizer (G)/(B) Assembly and S Out-pre-polarizer (R)/(G)/(B)
Assembly
n
The out-polarizer (R) assembly is not replaceable because it is pasted on the prism.
. Remove the upper case assembly. (Refer to Section 1-3-1.)
. Remove the rear panel. (Refer to Section 1-3-2.)
. Remove the main board. (Refer to Section 1-3-3.)
. Remove the G board. (Refer to Section 1-3-4.)
. Remove the lamp duct. (Refer to steps 1 and 2 in Section 1-3-5.)
. Remove the speaker. (Refer to Section 1-3-6.)
. Remove the optical block. (Refer to Section 1-3-7.)
. Remove the lens assembly and S prism block assembly. (Refer to Section 1-3-12.)
