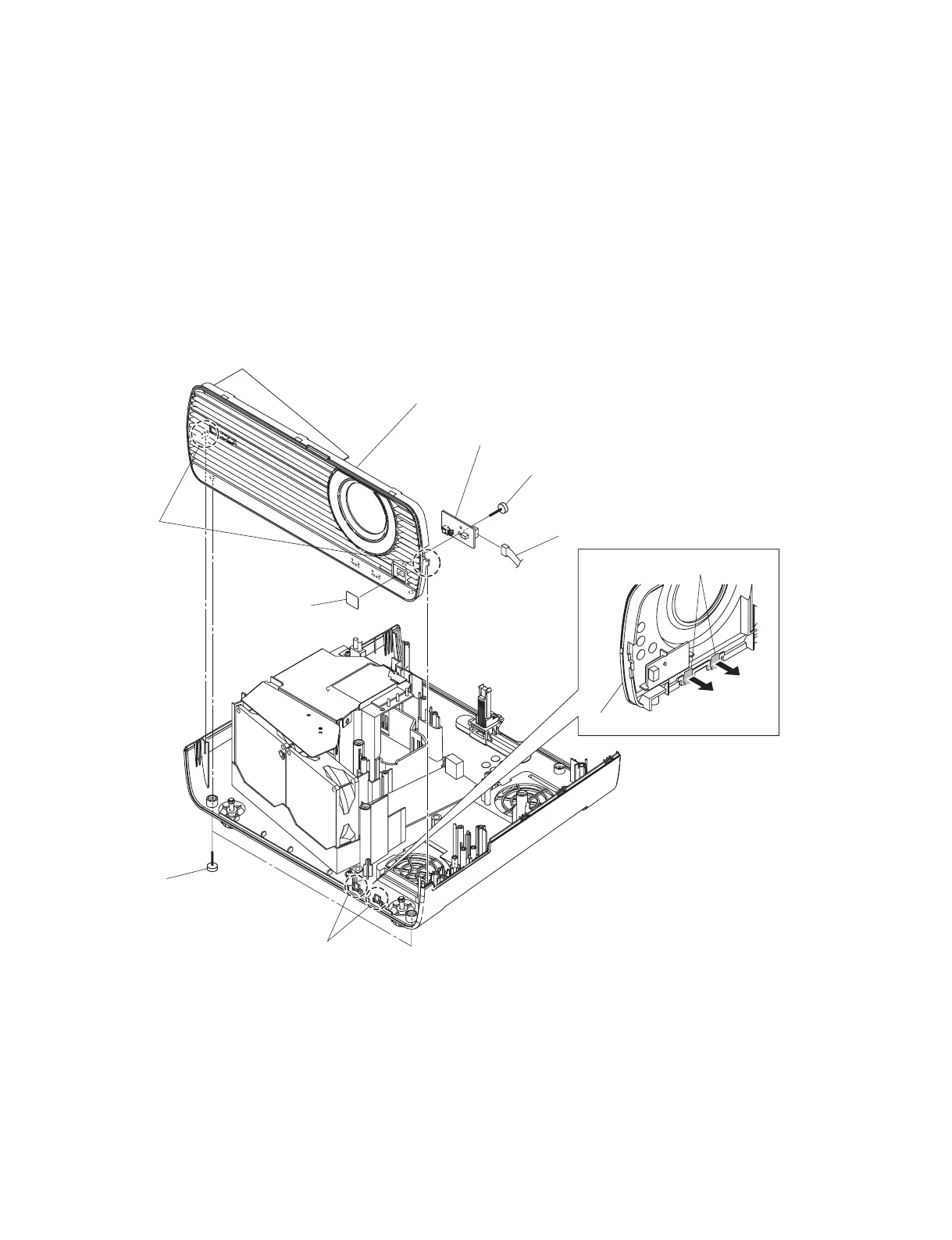

Sony VPL-EX145 - Front Panel Assembly and NFTA Board

1-12 (E)
VPL-EX100
7
Harness
8
Emblem
(ELK)
4
Front panel assembly
6
NFTA board
2
Two hooks
3
Two hooks
1
Two screws
(BVTP3
x
10)
5
Screw
(BVTP3
x
8)
4
Front panel assembly
2
Two hooks
1-3-10. Front Panel Assembly and NFTA Board
. Remove the upper case assembly. (Refer to Section 1-3-1.)
. Remove the rear panel. (Refer to Section 1-3-2.)
. Remove the main board. (Refer to Section 1-3-3.)
. Remove the G board. (Refer to Section 1-3-4.)
. Remove the lamp duct. (Refer to steps 1 and 2 in Section 1-3-5.)
. Remove the speaker. (Refer to Section 1-3-6.)
. Remove the optical block. (Refer to Section 1-3-7.)
. Remove the DC fan (Intake). (Refer to Section 1-3-8.)
