Sony VPL-EX145 - Power Supply (Ballast)

1-11 (E)
VPL-EX100
1
Harness
3
Power supply
(Ballast)
3
Power supply (Ballast)
4
Two harnesses
2
Release
the hook.

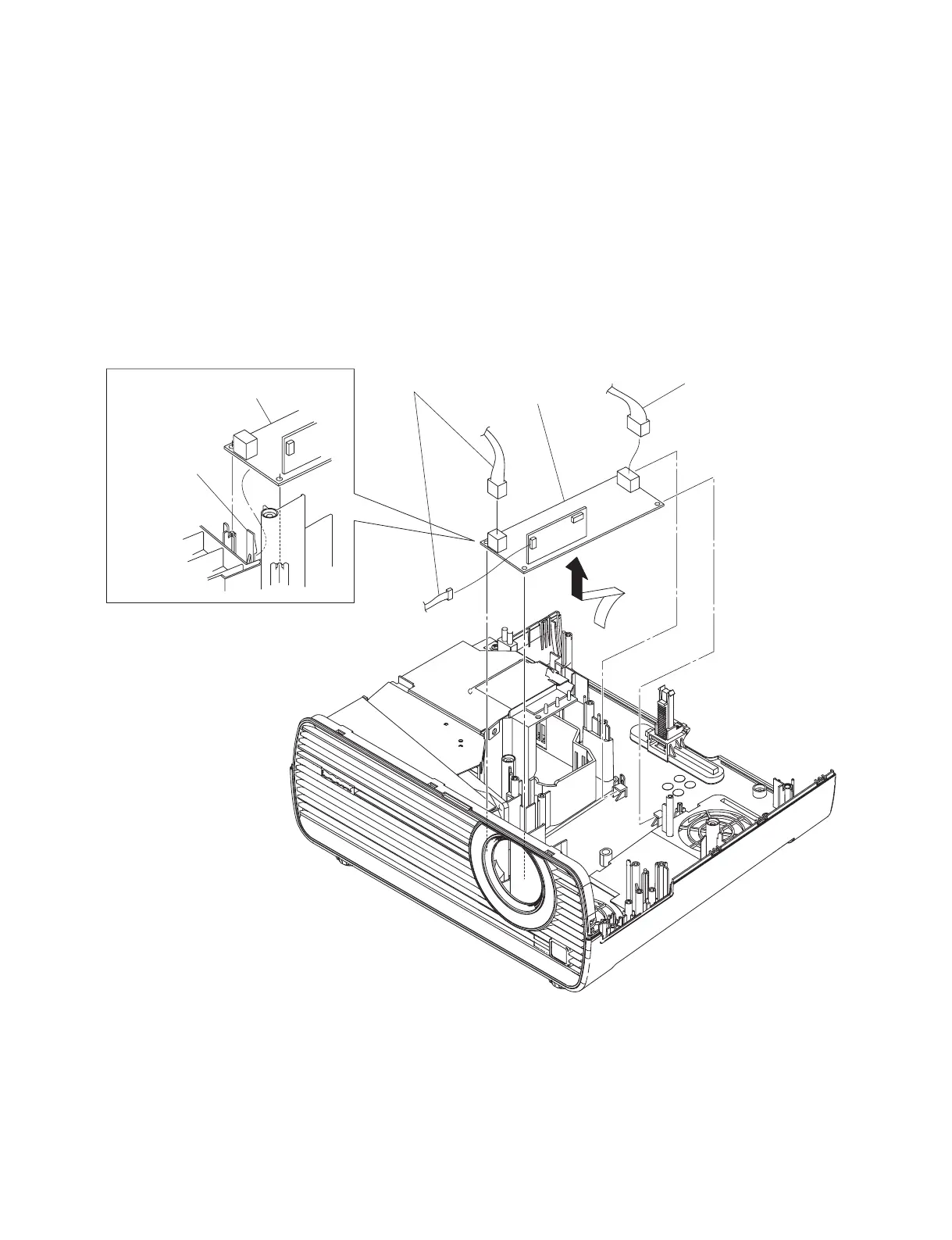

1-3-9. Power Supply (Ballast)
. Remove the upper case assembly. (Refer to Section 1-3-1.)
. Remove the rear panel. (Refer to Section 1-3-2.)
. Remove the main board. (Refer to Section 1-3-3.)
. Remove the G board. (Refer to Section 1-3-4.)
. Remove the lamp duct. (Refer to steps 1 and 2 in Section 1-3-5.)
. Remove the speaker. (Refer to Section 1-3-6.)
. Remove the optical block. (Refer to Section 1-3-7.)
. Remove the prism duct. (Refer to steps 1 to 3 in Section 1-3-8.)
