Sony VPL-EX145 - Exploded Views

4-2
VPL-EX100
Cover (VPL-EX100/EX120)

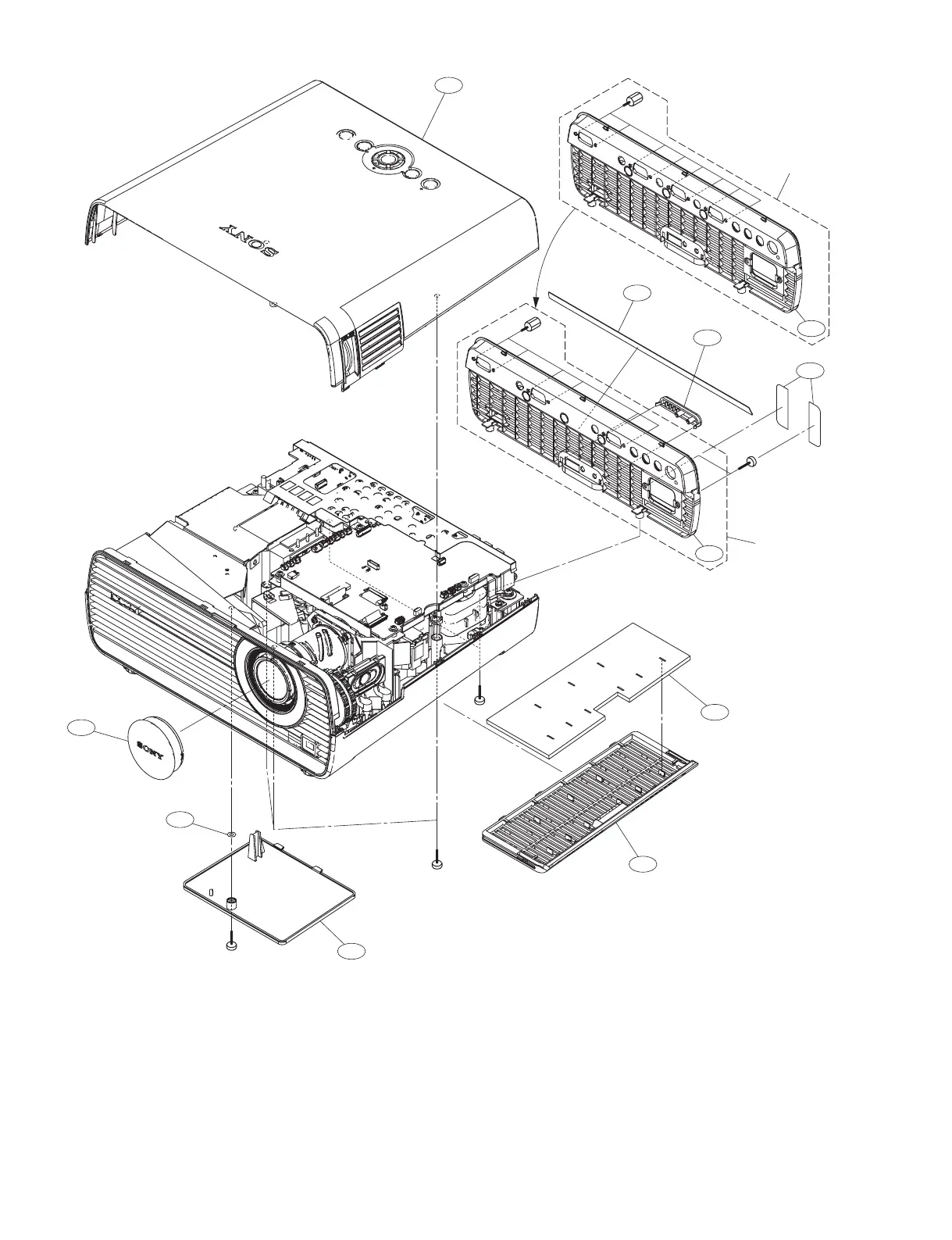

4-2. Exploded Views
K3 x 10
BVTP
3 x 10
BVTP3 x 10
P3 x 8
VPL-EX100
VPL-EX120
1
4
3
9
7
5
2
6
8
10
3
No. Part No. SP Description
1 ! X-2548-664-5 s ASSY, CASE UPPER
2 3-701-438-11 s WASHER, 2.5
3 ! 4-188-044-01 s PANEL, REAR (For VPL-EX100)
! 4-188-044-11 s PANEL, REAR (For VPL-EX120)
4 4-193-623-01 s CONNECTOR SHEET A (For VPL-EX100)
4-193-624-01 s CONNECTOR SHEET B (For VPL-EX120)
5 ! 4-194-071-01 s DOOR, LAMP
6 4-194-075-01 s CAP, LENS
7 4-194-076-02 s COVER, FILTER
8 4-194-077-01 s BUTTON, ADJUST
9 4-194-098-01 s FILTER
10 4-261-652-01 s SHEET, BLIND
7-682-249-09 s SCREW +K 3X10
7-685-647-19 s SCREW +BVTP 3X10 TYPE2 N-S
