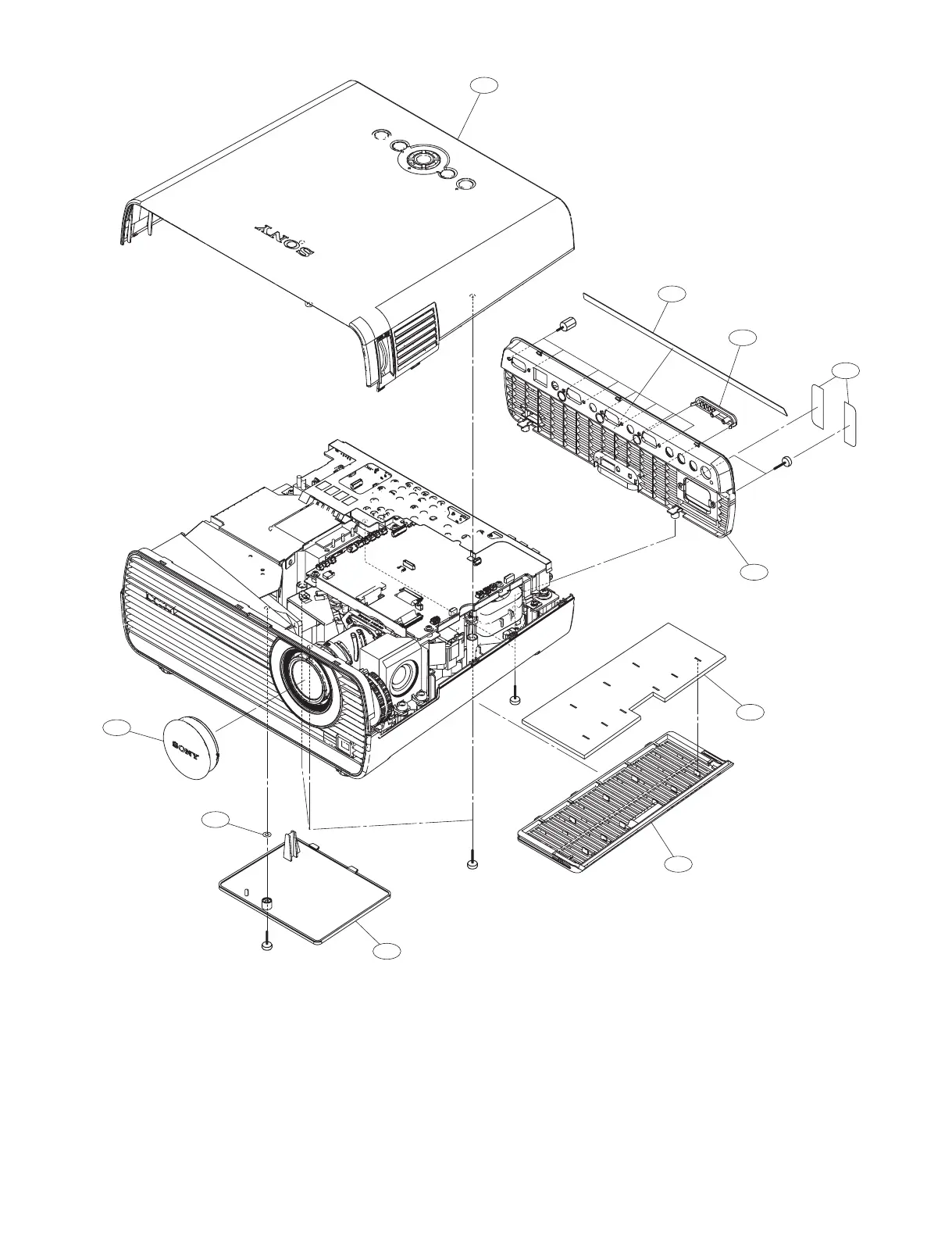

4-3
VPL-EX100
Cover (VPL-EX145/EX175)
BVTP
3 x 10
BVTP3 x 10
P3 x 8
K3 x 10
1
4
3
9
7
5
2
6
8
10
No. Part No. SP Description
1 ! X-2548-664-5 s ASSY, CASE UPPER
(For VPL-EX145 (SY, CN))
! X-2548-664-5 s ASSY, CASE UPPER
(For VPL-EX175 (SY))
! X-2560-564-1 s ASSY, CASE UPPER
(For VPL-EX175 (CN))
2 3-701-438-11 s WASHER, 2.5
3 ! 4-188-044-21 s PANEL, REAR
4 4-193-625-01 s CONNECTOR SHEET C
5 ! 4-194-071-01 s DOOR, LAMP
(For VPL-EX145 (SY, CN)/EX175 (SY))
! 4-194-071-11 s DOOR, LAMP
(For VPL-EX175 (CN))
No. Part No. SP Description
6 4-194-075-01 s CAP, LENS
7 4-194-076-02 s COVER, FILTER
(For VPL-EX145 (SY, CN))
4-194-076-02 s COVER, FILTER
(For VPL-EX175 (SY))
4-194-076-11 s COVER, FILTER
(For VPL-EX175 (CN))
8 4-194-077-01 s BUTTON, ADJUST
9 4-194-098-01 s FILTER
10 4-261-652-01 s SHEET, BLIND
7-682-249-09 s SCREW +K 3X10
7-685-647-19 s SCREW +BVTP 3X10 TYPE2 N-S
