14
(GB)

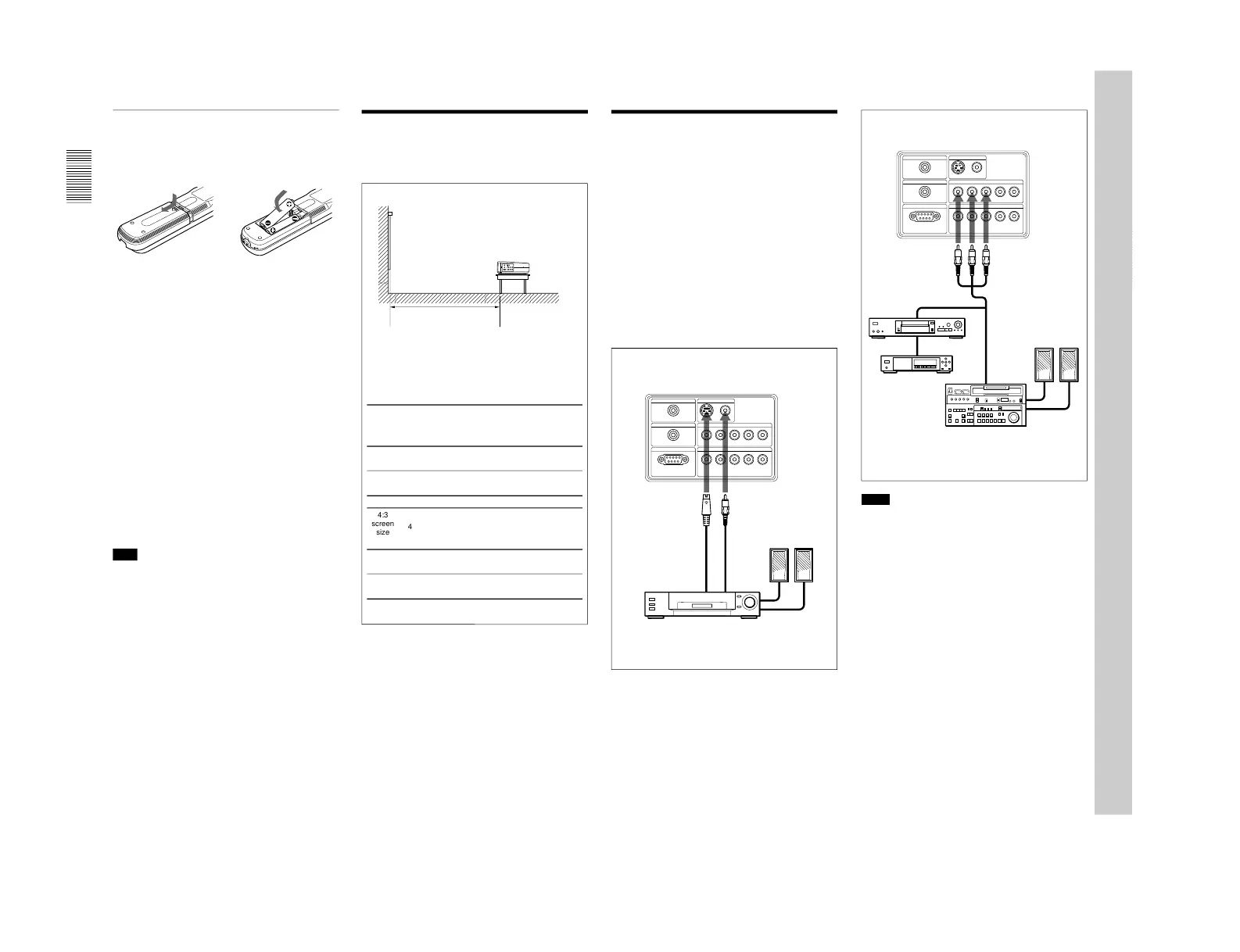

Location and Function of Controls / Installing the Projector
Be sure to
install the
battery from
the # side.
Battery installation
1
Push and slide to open the lid, then install the two
size AA (R6) batteries (supplied) with the correct
polarity.
2
Replace the lid.
Notes on batteries
•Make sure that the battery orientation is correct when
inserting batteries.
•Do not mix an old battery with a new one, or
different types of batteries.
•If you will not use the Remote Commander for a
long time, remove the batteries to avoid damage
from battery leakage. If batteries have leaked,
remove them, wipe the battery compartment dry and
replace the batteries with new ones.
Notes on Remote Commander operation
•Make sure that there is nothing to obstruct the
infrared beam between the Remote Commander and
the remote control detector on the projector.
•The operation range is limited. The shorter the
distance between the Remote Commander and the
projector is, the wider the angle within which the
commander can control the projector.
•To turn on the key light when using as a wired
Remote Commander, install the batteries.
Note
When the Remote Commander causes malfunction,
consult with qualified Sony personnel. We change the
Remote Commander as new one according to the
guarantee.
Installing the Projector
This section describes the installation arrangements
for installing the projector.
The distance between the lens and the screen varies
depending on the size of the screen.
Use the following table as a guide.
Unit: m (feet)
16:9
screen
size
40 60 80 100 120 150 200 300
(inches)
Minimum 1.3 1.9 2.6 3.3 3.9 4.9 6.6 9.9
Distance (4.1) (6.3) (8.5) (10.7) (12.9) (16.2) (21.7) (32.6)
Maximum 1.5 2.2 3.0 3.8 4.6 5.7 7.6 11.5
Distance (4.8) (7.4) (9.8) (12.4) (14.9) (18.7) (25.0) (37.7)
Distance between the screen
and the center of the lens
15
(GB)
Connecting
When making connections, be sure to:
•
turn off all equipment before making any connections.
• use the proper cables for each connection.
• insert the plugs of the cables properly; plugs that are
not fully inserted often generate noise. When pulling
out a cable, be sure to pull it out by the plug, not the
cable itself.
Connecting with a VCR/15k RGB/
Component/Progressive
Component Equipment
This section describes how to connect the projector
with a VCR, external active speakers, and 15k RGB/
component/progressive component equipment.
Also refer to the instruction manuals of the equipment
to be connected.
Connecting
Setting up and projecting
Left side
15k RGB/Component equipment
to RGB/
component/
progressive
component
output
Pin Cable
(not
supplied)
Active speakers
Notes
•Set the aspect ratio using ASPECT in the INPUT
SETTING menu according to the input signal.
•To connect a 15k RGB/component/progressive
component equipment, select the COMPUTER/
COMPONENT/DTV YP
B
P
R
/DTV GBR in the
INPUT-A or INPUT-B in the SET SETTING menu
according to the input signal.
For details on setting, see page 27 (GB).
•You can connect a high definition equipment. The
connection method is the same as above.
Connecting to an HDTV 1035/60i
Set the input setting to “DTV YP
B
P
R
/DTV GBR.”
Use the composite sync signal when you input the
external sync signal.
To Next Page
