Novus e 8. Aligning the unit
Service manual 107

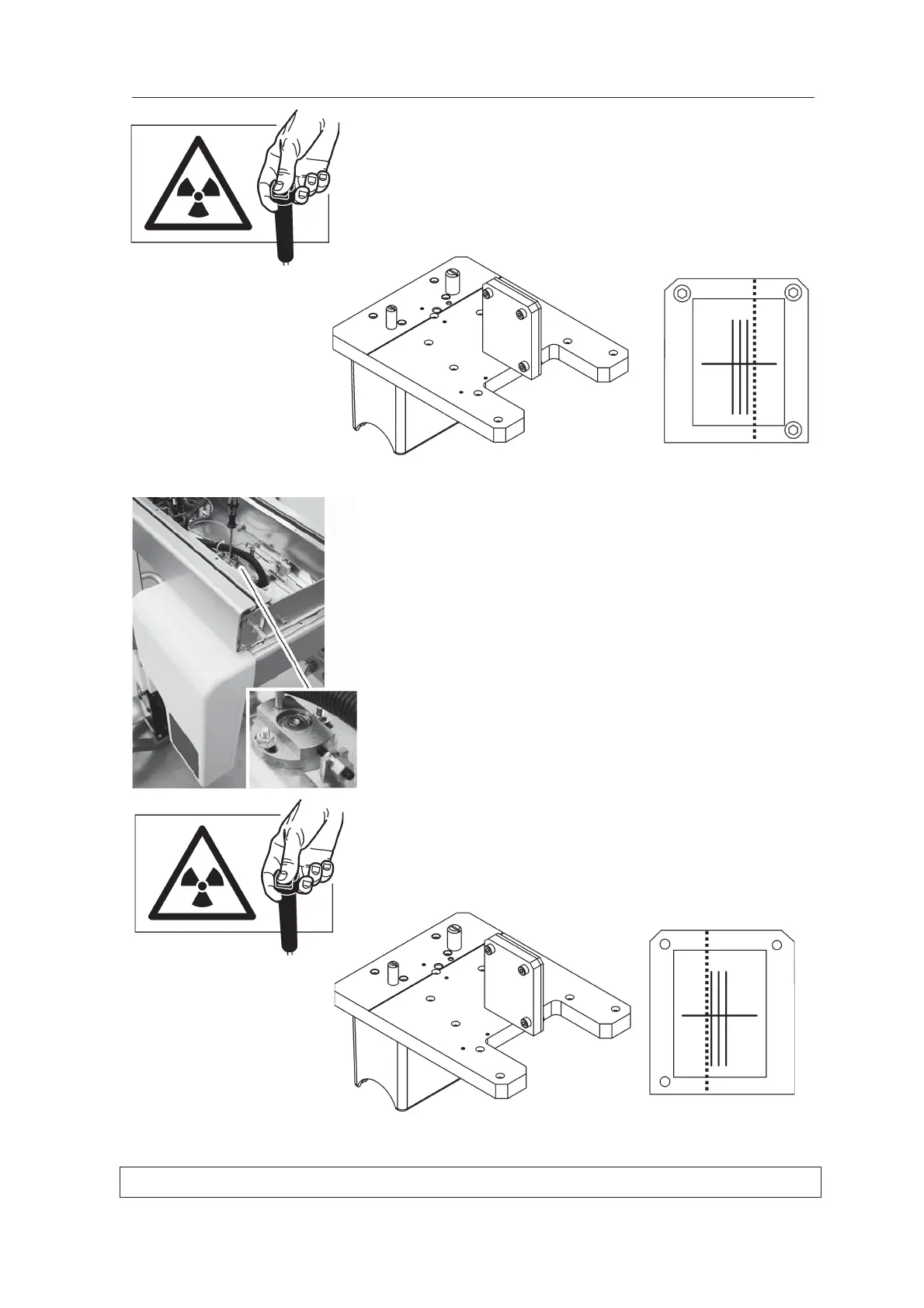

6. Protect yourself from radiation.
Darken the room and then position yourself
behind and below the tubehead.
Press and hold down the exposure switch.
Make a note of where the beam strikes the
alignment plate.
7. Remove the hexagon socket wrench from
the locking hole and then manually rotate the
Rotating Unit 180º so that it is parallel to the
front of the upper shelf and the tubehead is on
the right. Reinsert the hexagon socket wrench
into the locking hole in the Rotation bearing to
hold the rotating unit in position.
8. Protect yourself from radiation.
Press and hold down the exposure switch.
Make a note of where the beam strikes the
alignment plate on this side.
