12.2: BUS METERING
CONSOLE METERING > BUS MASTER METERING
12.2: BUS METERING

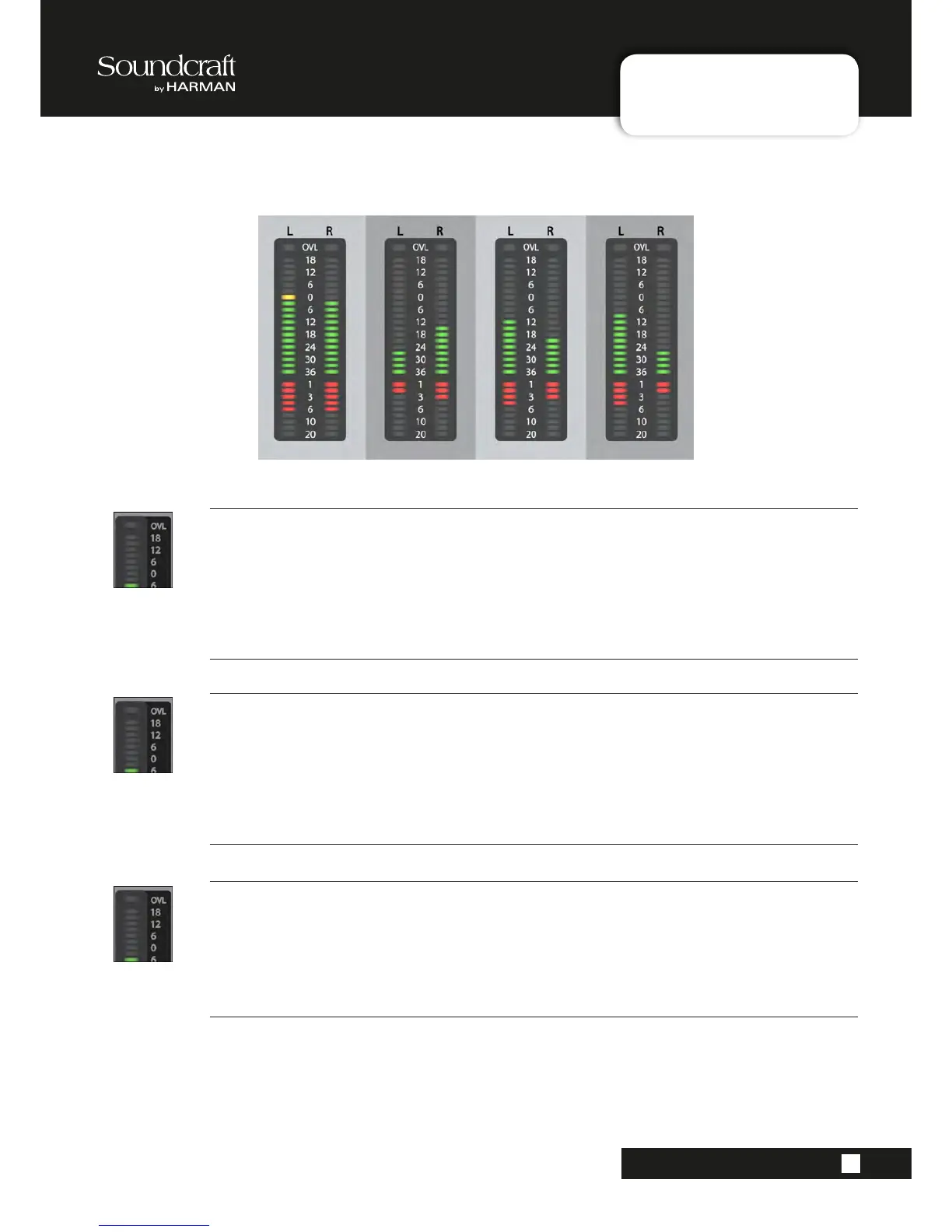

Bus Meters
Show the bus master signal levels.
Bus Masters can be configured as stereo channels, therefore the Bus Master Strip level meters have left and right
meters (i.e. the left and right channels share a single set of controls). The GRM shows the overall gain reduction of
the limiter and compressor, if they are engaged. The Dynamics from Stereo Bus Masters are always linked, there-
fore both GRMs show the same value.
The overload LED indicates a value that is higher than Full Scale (analogue output-stage clipping).
Mix Master Meters
The L, R and C Output Masters each have a Level Meter and a Gain Reduction Meter. The L and
R masters share a stereo meter, and the C master has a mono version.
The overload LED indicates a value that is higher than Full Scale (analogue output-stage clipping).
Monitor Bus Metering
The monitor section has a stereo level meter, but there is no GRM associated with the monitor.
The overload (OVL) LED indicates analogue output-stage clipping.
