7.4: GRAPHIC EQ
7.4: GRAPHIC EQ
OUTPUTS > GRAPHIC EQUALISERS (GEQ)
The console has a total of 35 high-quality BSS Graphic Equalisers (GEQ) - one for each of the 32 assignable Busses,
and one for each of the LCR Master outputs. The GEQs are all 30-Band EQs with an adjustable bandwidth control.

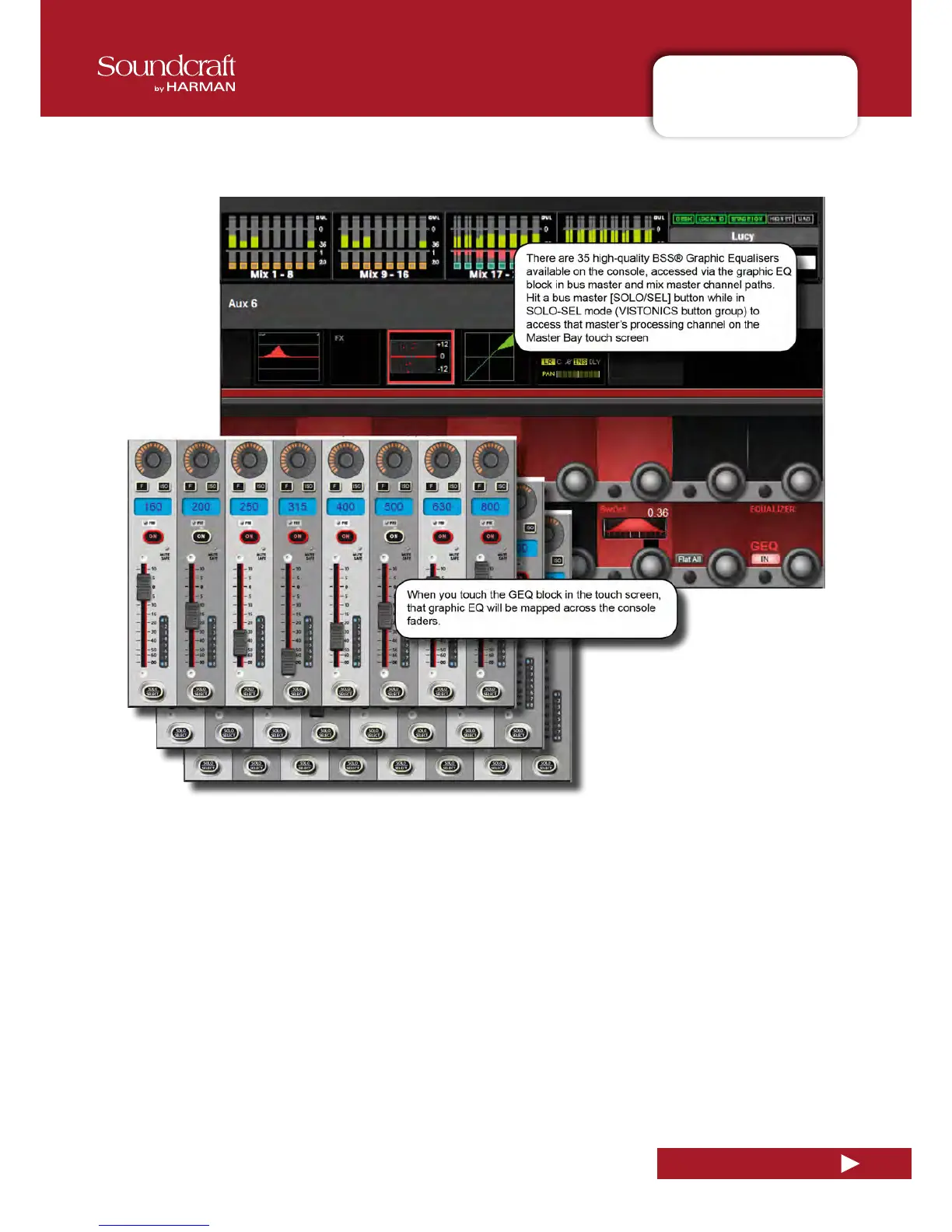

To access a GEQ, simply select a GEQ processing block from an output’s touch-screen parameter display.
Bus parameter displays can be accessed either by entering All Busses mode with the [ALLBUSS] button and selecting
the GEQ block from the corresponding channel’s touch screen area, or by selecting a bus [SOLO/SEL] button while
the Master Bay Vistonics button assign is set to Solo/Select. For more information see the Bus Output reference.
When a GEQ is selected, Bandwidth, Flatten, and In controls are mapped to the right-most VST controls, and the
Graphic EQ bands are mapped to the console faders. There are two GEQ control modes. The Large GEQ mode maps
all 30 bands across the consoles faders. The Small GEQ mode maps eight GEQ bands to the Master Bay faders -
scrollable with the Output Fader Page buttons [A] to [E]. The GEW Control mode is set in the Main Menu Settings Tab.
