ViDanteCardUser&SetupGuideV1.1 

ConnectingDanteDevices

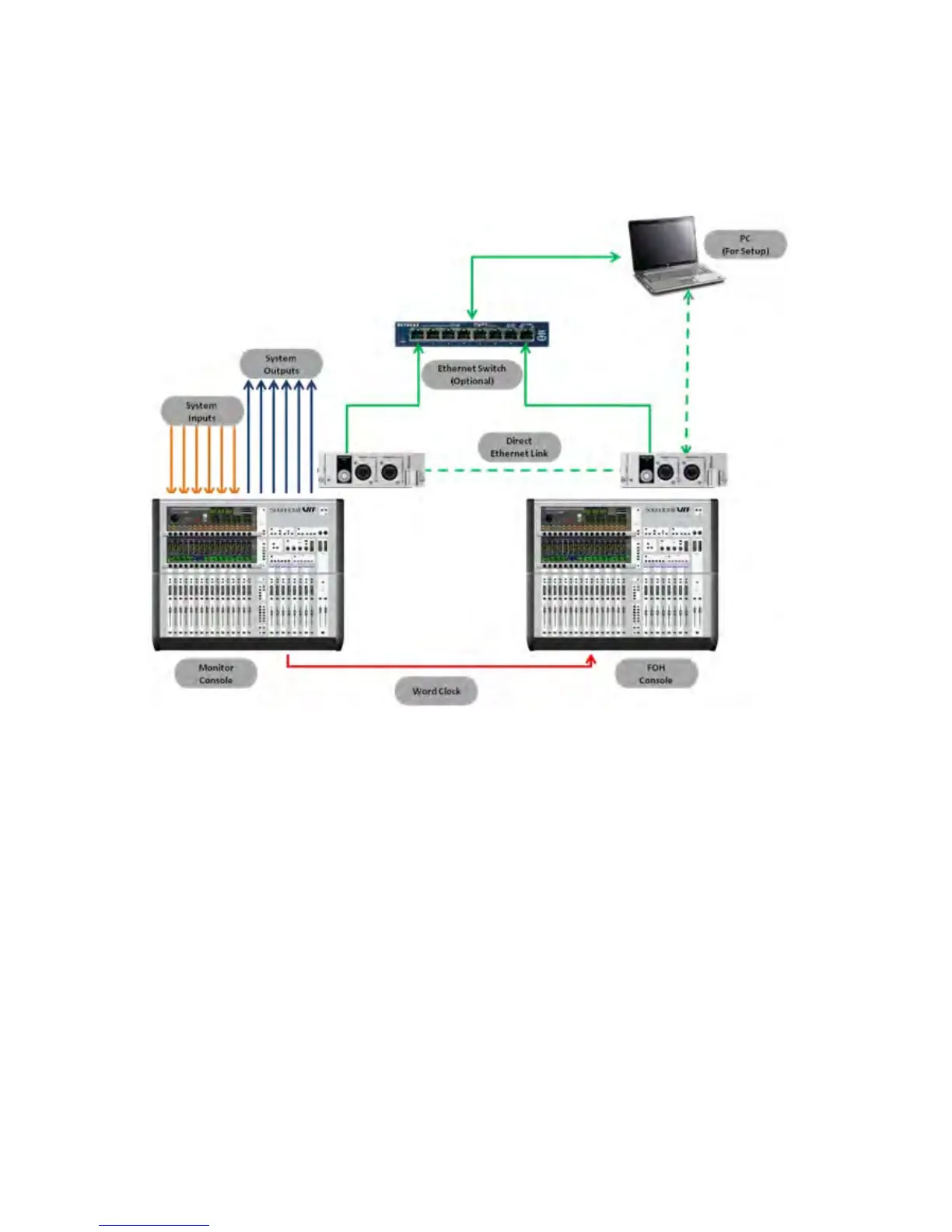

ThefollowingexampleillustratestwoVi1consoles‘House’and‘Monitor’.


Audioinputsaresenttothemonitorconsole,thesecanbeconnecteddirectlytotheconsoleorviaa
stageboxattachedviaaMADIcardtothemonitorconsole.
Adirect output fromeachinputofthe monitorconsolefeedstheFOHconsolewhichispatchedto
receiveaudiofromtheDa
nteoption
card.
The FOH console mix is returned to two spare channels of the monitor console and the direct
outputsofthoseinputsareinturnpatchedtothesystemoutputs; onceagainthesecanbedirectly
ontheconsoleorattachedviaaMADIcardtothemonitorconsole.
Thelin
kbetweentheDantecardsmaybeviaaswitchasshownwithasolidgreenlineordirectfrom
cardtocardasshownbythedottedgreenline.
NOTE:OnceconfiguredthePCisnotrequired.
NOTE:Dantemayoperateinredundantmode,thisisnotshown
forsimplicity.
