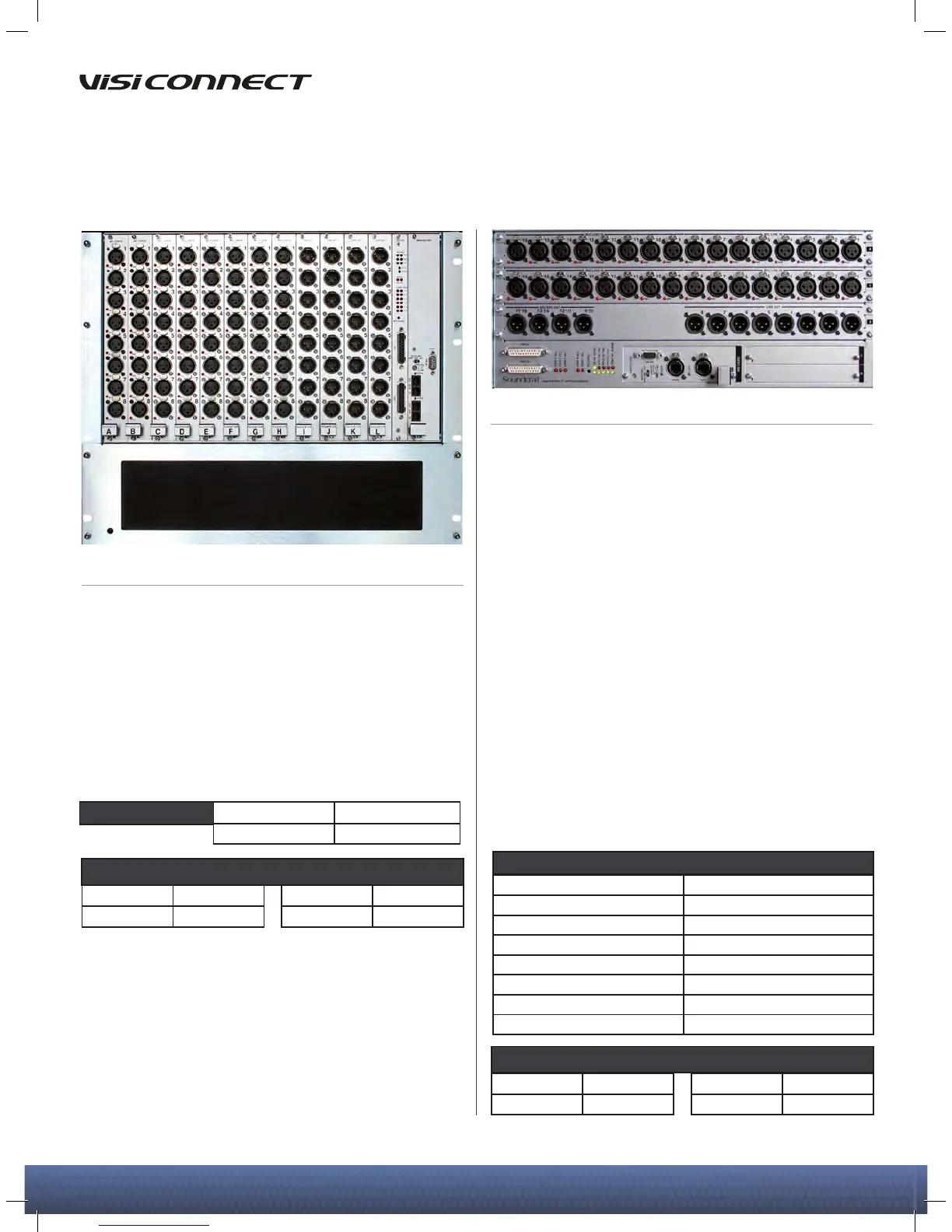

The Soundcraft Compact Stagebox offers a high density of I/O connections in
only 4U of rack space. The modular unit is congurable but is offered with a
standard conguration of 32 mic/line inputs, 16 line outputs, and 2 expansion
slots for standard Vi Local Rack I/O cards. These D21m option cards allow
connection to most popular digital formats, including CobraNet®, AVIOM
A-Net®16, Ethersound, ADAT, RockNet, Blu Link, and Dante. A MADI recording
interface can also be tted to the expansion slots. It is possible to equip the
Compact Stagebox with an additional 16 mic/line input XLR module instead of
the output module, providing 48 inputs. In this case, analogue or AES outputs
could still be obtained on D-Type connectors via D21m cards tted to the
expansion slots. The upper section of the stagebox is recongurable with a
choice of 16 channel I/O modules: 16 mic/line inputs; 16 line out; 8 line out +
8 AES out; 16 AES in + 16 AES out.
The Compact Stagebox is connected to the host console using either Cat-5
or Optical-bre MADI, the same way as the larger 64 Mic/line Vi6 Stagebox is
hooked up, and shares the same redundant MADI cable capability. (For Vi1 a
compatible card for the console is required to be purchased separately).
The unit comes complete with twin redundant power supplies, thermostatically-
controlled fan cooling and full LED status monitoring. An 8ch GPIO interface is
also provided.
EXPANSION OPTIONS FOR SOUNDCRAFT DIGITAL MIXING CONSOLES.
Stageboxes
COMPACT STAGEBOX (CSB)
CAT5 VERSION E947.350000
OPTICAL VERSION E947.351000
OPTIONAL UPPER SECTION MODULES ALSO USED ON Vi1 CONSOLE LOCAL I/O
16 MIC/LINE IN Vi1-ML1
16 LINE OUT Vi1-LO1
8 LINE OUT + 8 AES OUT Vi1-AES8
16 AES IN + 16 AES OUT Vi1-AES16
PART NUMBERS:
The 9U Vi Stagebox houses 64 mic/line inputs and 32 analogue line outputs.
Mic/line amp gain, 48 V phantom power and 100 Hz lo-cut lter before the A-D
converters can all be controlled remotely from the desk.
The Stagebox is available in Standard 64/32 conguration, or can be
recongured as part-tted or with alternative cards as required.
Optional AES/EBU, CobraNet
®
, Ethersound
®
, Aviom A-Net
®
16, Blu Link or
Dante cards are available, as well as transformer balanced options for the
mic input cards.
Vi STAGEBOX
CAT5 VERSION: RW5786C
OPTICAL VERSION: RW5786CO
PART NUMBERS:
Vi1
4
Vi2
4
Vi4
4
Vi6
4
COMPATIBILITY:
Vi1
4
Vi2
4
Vi4
4
Vi6
4
COMPATIBILITY:
