SoundCraft Vi5000 User Manual

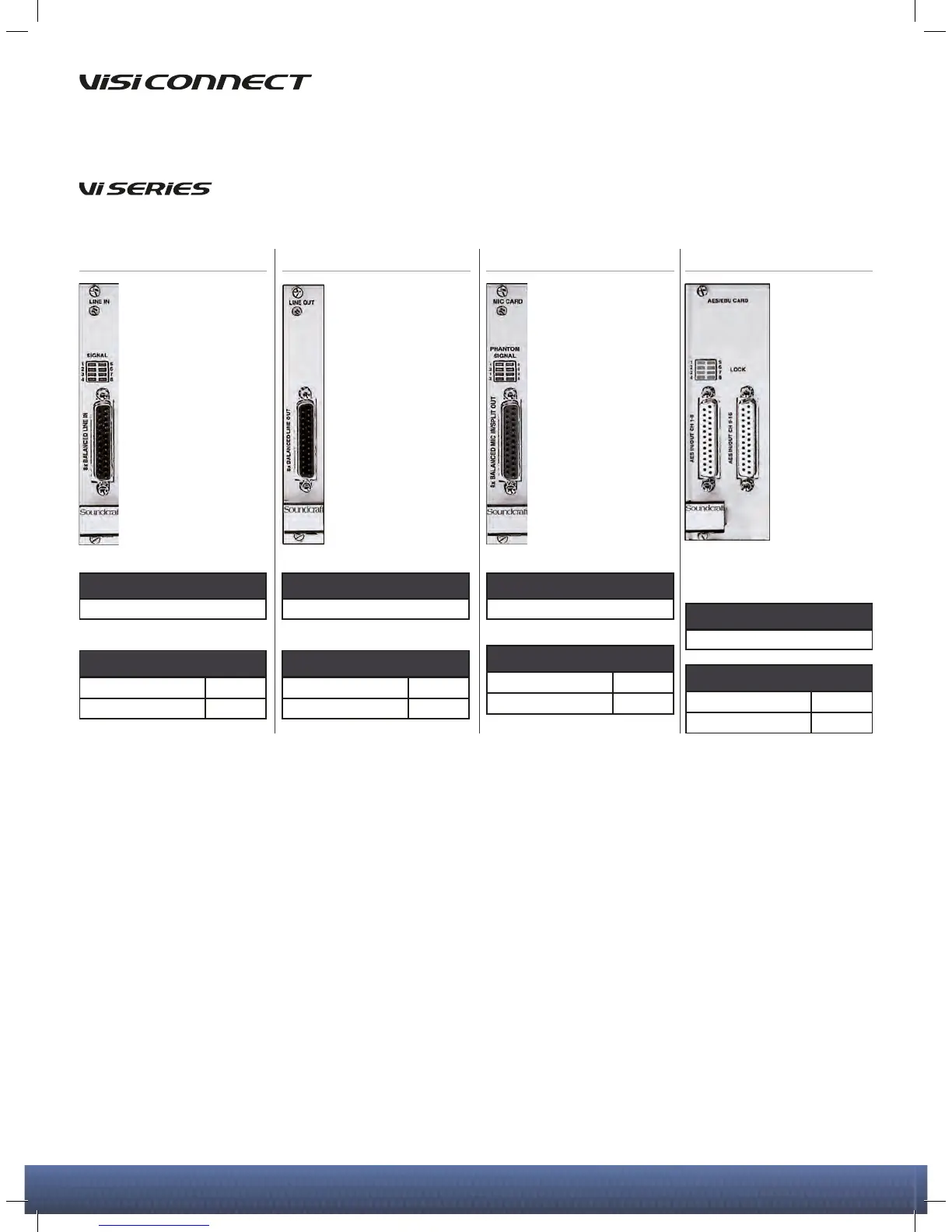

Option Cards (Local Rack/Compact Stagebox)
A series of optional interface cards, designed to t either the local rack or Compact Stagebox, and in some cases also the
ViStagebox, enable Vi Series™ consoles to interface directly with a wide range of other systems and audio networks using industry
standard protocols.
LINE IN CARD
Eight-channel line input
card with 24 bit, 48kHz
A/D Converter, delta-sigma
conversion. Transformer-
balanced inputs. 7...26 dBu
input sensitivity. “Signal
present” LED indicator. Inputs
on standard 25-pin D-type
connector (female).
LINE OUT CARD
Eight-channel, 24 bit line
output card with 24 bit
D/A converters with 48 kHz
operation. Electronically
balanced outputs. 7…26
dBu max. output level.
Outputs on standard 25-pin
D-type connector (female).
MIC IN CARD
Four analogue
microphone/line inputs,
electronically balanced,
with 24 bit, 48 kHz delta-
sigma A/D converters
(mic/line sensitivity,
gainsetting in 1 dB
steps, low-cut filter, and
48 V phantom power
on/off controlled by
console software). Green
“signal present” and
yellow “phantom power”
indicators per channel.
Inputs on standard 25-pin
D-type connector (female).
AES/EBU CARD
AES/EBU input/
output card with
16 Ch I/O. With
input SFCs only.
Input SFCs can
be bypassed
individually.
Output dither is
selectable for
every AES/EBU
output from 24
bit, 20 bit, 18 bit
or 16 bit.
Settings are
made with
jumpers. Inputs
and outputs on standard 25-pin
D-type connectors (female).
ViO-LI
PART NUMBER:
ViO-LO
PART NUMBER:
ViO-MI
PART NUMBER:
ViO-AES
PART NUMBER:
Local Rack/CSB
4
Vi Stagebox
✘
COMPATIBILITY:
Local Rack/CSB
4
Vi Stagebox
✘
COMPATIBILITY:
Local Rack/CSB
4
Vi Stagebox
✘
COMPATIBILITY:
Local Rack/CSB
4
Vi Stagebox
✘
COMPATIBILITY:
