A-NET CARD
The Soundcraft A-NET
®
16V
card provides direct digital
connection on a single
Cat5e cable from the Aux
or Group outputs into an
Aviom® A-NET® Pro16™
Series Personal Mixer
(compatible with A-16II and
A360).
The Pro16 System enables
musicians on stage to be
fed with up to 16 subgroups
of instruments or vocals
which they can then mix to
their own taste using their
own on-stage controller. The
card includes a switchable
test tone and stereo pair linking via
DIP switches.
.
Local Rack/CSB ViO-ANET
Vi Stagebox ViSB-ANET
PART NUMBERS:
Local Rack/CSB
4
Vi Stagebox
4
COMPATIBILITY:
BLU LINK CARD
The Blu Link card provides up
to 32 inputs and 32 outputs
to/from a BSS BluLink ring,
and can be used to interface
to BSS London networked
audio systems, or to the
PMC Personal Monitoring
Controller.
The Blu Link redundant
ring allows for up to 256
channels, so the Vi BluLink
card contains internal
DIP switches that allow
a block of 32 sequential
channels from the 256 to
be addressed by the card,
separately selectable for
inputs and outputs.
In addition the card can be set as
clock master or clock slave, according
to system requirements. When acting
as a slave a jumper cable (included)
must be connected from the card’s
wordclock out to the consoles
wordclock input.
BLU LINK
IN
OUT
DANTE CARD
The Dante card
allows 64 channels
to be sent to /
received from a
Dante network.
As well as providing
audio exchange
with other
Dante-enabled
equipment, the
card also allows 64
channels of audio
to be connected
directly to a PC
or Mac computer
for recording or
processing, by using
a standard Ethernet connection*.
Routing and setup of the network
is done using an external computer
running Dante Controller software
(available FOC from the Audinate
website).
A BNC sync output connector on the
card allows the console’s wordclock
input to be driven by the network clock,
if required by the clocking setup.
*Requires Dante Virtual Soundcard
software to be installed on the
computer — one licence token
supplied with each card.
PRIMARY
LINK/SPEED
WCLOCK
OUT
SECONDARY
DANTE
LINK/SPEED
CobraNet™ CARD
The CobraNet™ card
allows up to 32 channels of
input or output signals (or
a combination of both) to
be received by or sent from
console onto a CobraNet™
network. The card must be
used as the Conductor for
the network. By default, the
card is congured for 32
outputs.
PRIMARY
SECONDARY
COBRANET

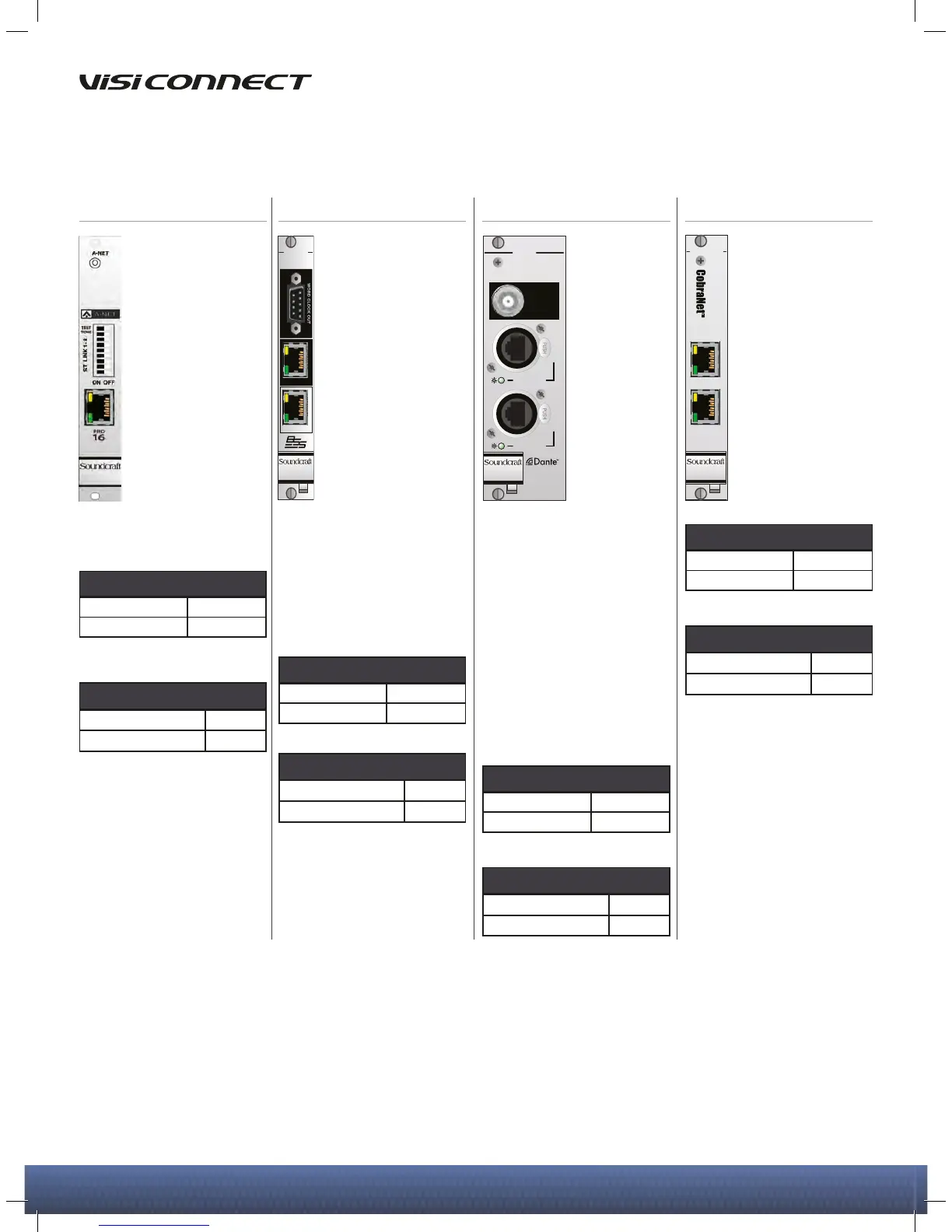

Option Cards (Local Rack/Compact Stagebox, Vi Stagebox)
Local Rack/CSB
4
Vi Stagebox
4
COMPATIBILITY:
Local Rack/CSB
4
Vi Stagebox
4
COMPATIBILITY:
Local Rack/CSB ViO-BLU
Vi Stagebox ViSB-BLU
PART NUMBERS:
Local Rack/CSB ViO-DANTE
Vi Stagebox ViSB-DANTE
PART NUMBERS:
Local Rack/CSB
4
Vi Stagebox
4
COMPATIBILITY:
Local Rack/CSB ViO-COB
Vi Stagebox ViSB-COB
PART NUMBERS:
NOTE: Images show local Rack/CSB versions — Vi Stagebox versions have same connections but have 6U high front panel.
