10.1: MONITORING CONTROLS
MONITORING > CONTROLS

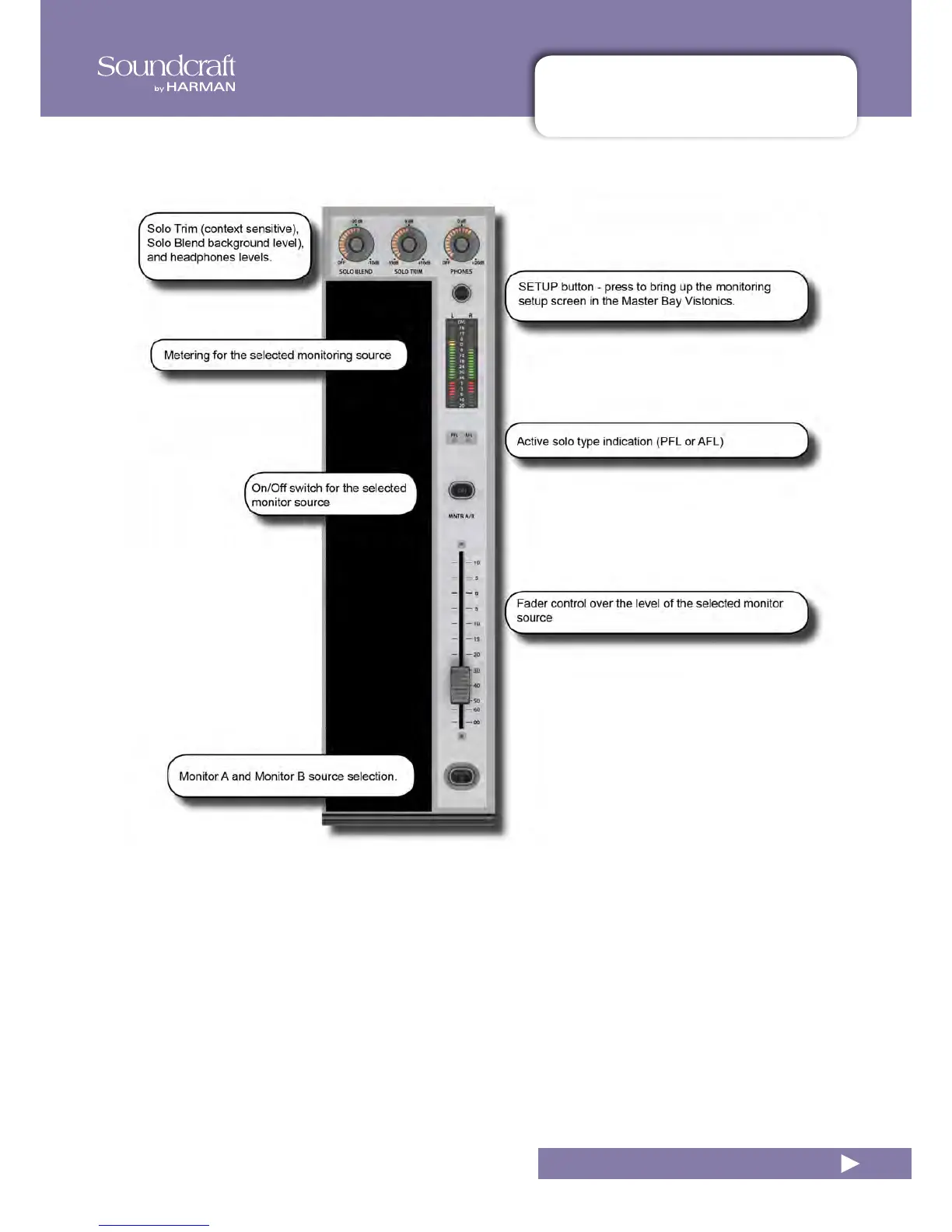

The following console monitoring controls are located to the right of the master faders in the Master Bay, except for
[INPUT PRI] (Solo Input Priority), which is located with the SOLO button group on the upper section, to the right of the
Master Bay.
There are three main monitoring outputs - A, B, and headphones. Monitor A is an LCR output, Monitor B is an LR out-
put, and the headphones output is LR to the headphone socket on the front of the console. You can select a variety of
sources for the monitoring outputs, including two user-denable sources, USER A and USER B, with separate left and
right assignments.
Solos can be blended with the main monitor feed for contextual solos, and an Auto function can be set to select PFL or
AFL depending on your solo selections.
Solo system control is described in the Monitoring SETUP section. The console’s Solo system logic and general use is
described in the next chapter (11).
