MODE Base
Riverside, CA www.speakercraft.com
MADE IN CHINA
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
SOURCE ID
ADDRESS
43
44
Figure 6

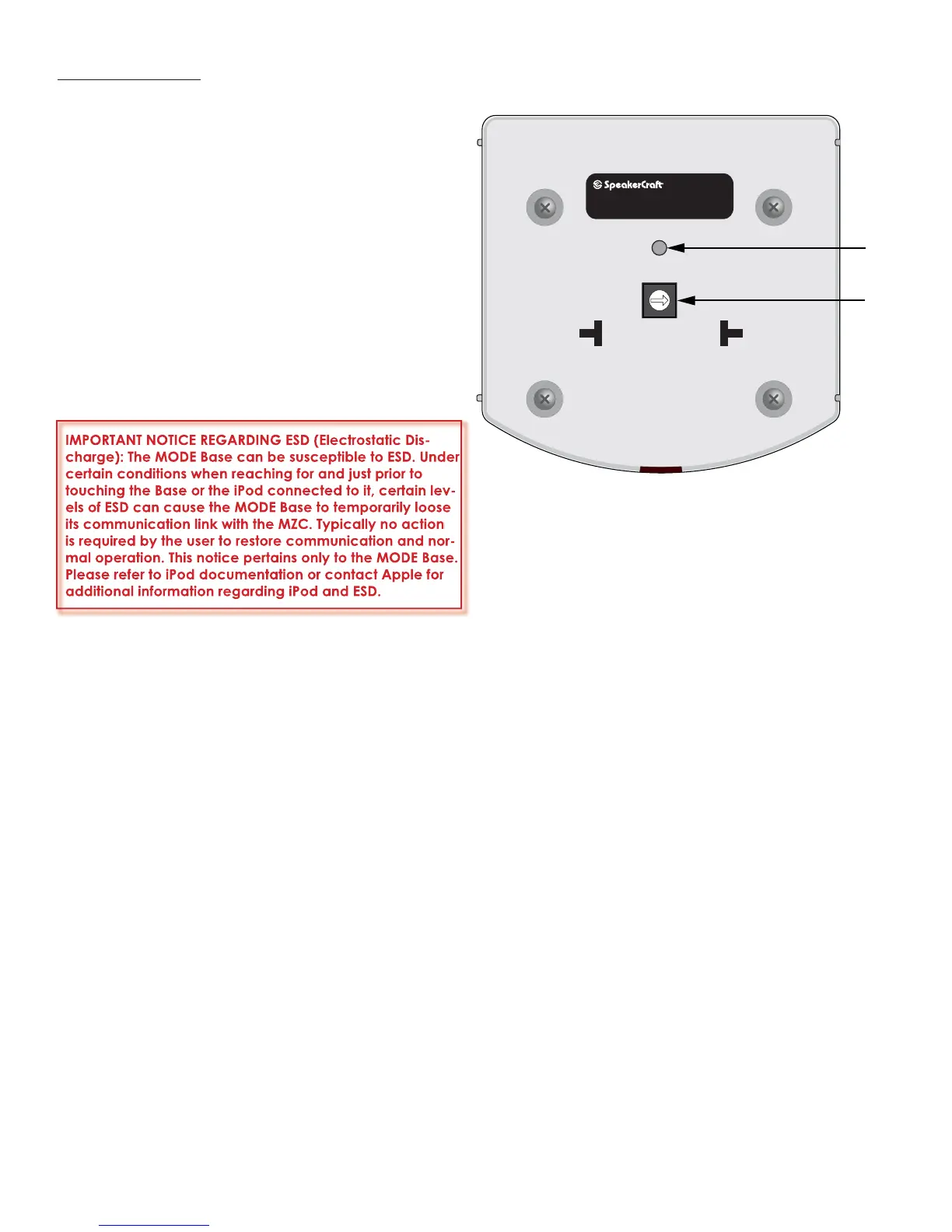

MODE Base Bottom Features
MODE FEATURES
MODE BASE FEATURES (cont)
43. SOURCE ID SWITCH - Carefully press with a pencil or
other non-conductive probe to set the MODE Base to
match the MZC Source Input to which it will be con-
nected. Source ID is displayed on the MODE Base LED.
44. ADDRESS SWITCH - A unique hex address must be set
for each MODE Base within a given system. The switch
provides up to 16 addresses (0 to F).
IMPORTANT NOTICE REGARDING ESD (Electrostatic Dis-
charge): The MODE Base can be susceptible to ESD. Under
certain conditions when reaching for and just prior to
touching the Base or the iPod connected to it, certain lev-
els of ESD can cause the MODE Base to temporarily loose
its communication link with the MZC. Typically no action
is required by the user to restore communication and nor-
mal operation. This notice pertains only to the MODE Base.
Please refer to iPod documentation or contact Apple for
additional information regarding iPod and ESD.
