MODE 3.1 RETRO BRACKET INSTALLATION
SpeakerCraft provides a MODE 3.1 Retro Bracket, (SpeakerCraft Part Number BKT14331), for use when upgrading to MODE
3.1 and the existing mounting hardware is incompatible with the MODE Mounting Bracket and MODE 3.1.
NOTE: It is highly recommended that the MODE 3.1 Keypad be installed at a height of 56” on center. This provides the best
overall position for optimum LCD viewing angle. This should be discussed with the homeowner prior to installation to avoid
rework, should the homeowner fi nd this undesirable.
The Kit includes 1 Retro Bracket and 4 mounting screws.

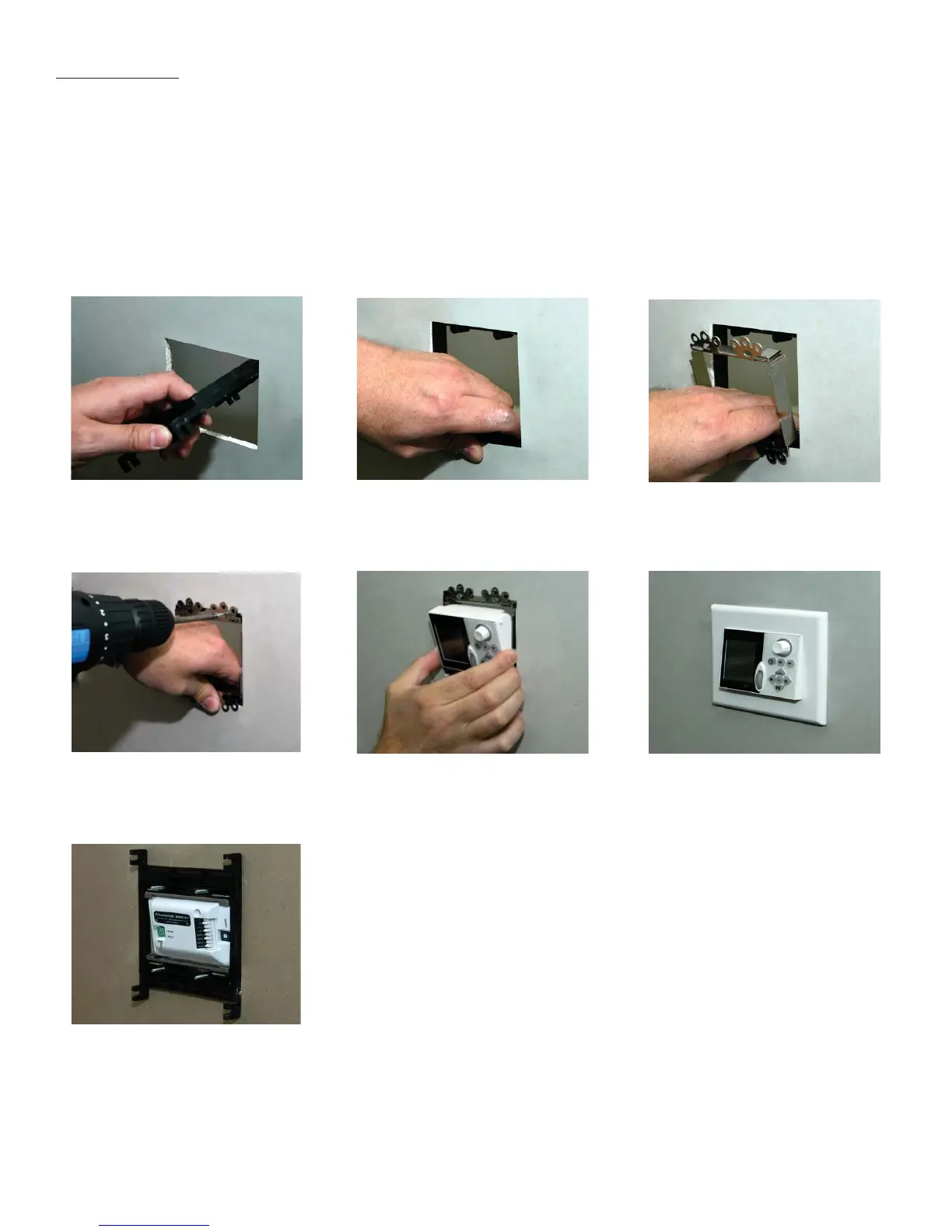

1. Cut drywall hole to 3
5
⁄8“ x W 3
7
⁄8”.
Then place bracket through the
opening with the FRONT/TOP on
the left side as shown.
2. Pull the bracket back towards the
drywall, make sure bracket fl ushes
to back of drywall.
3. While holding the main retro
bracket, add the MODE 3.1
Bracket.
4. While holding both brackets, At-
tached the MODE 3.1 bracket to
the main retro bracket using the
mounting screws provided.
5. The two brackets will sandwich the
drywall between them, thus pro-
viding a sturdy mounting system for
the MODE 3.1
6. Finished product, angle mount,
front view.
INSTALLATION
INSTALLATION
Cut-Out Size: 3
5
⁄8“ x 3
7
⁄8“ (168 mm x H 98 mm)
Note: Be sure to make the cut-out as tight as possible to insure a good fi t.
7. Finished product, angle mount,
rear view.
