40
POWER ON
1. Roll the Scroll Wheel to highlight a Source on the LCD. (If the Keypad is in ‘Standby’
rolling the Scroll Wheel or pressing any button will wake up the Keypad.)
2. Press the Click Button to select the Source. The Zone will turn ON. The Source selected
will be displayed at the top of the LCD. (Refer to Figure 38)
POWER OFF
Zone
1. Press the Zone Power Off Key for less than 2 seconds. A red OFF (red SpeakerCraft
Logo off/MODE Free) and the message: “Source Not Selected” will appear at the top
of the LCD. (Refer to Figure 37) Unless the local zone is the last zone to be turned off,
the zone will turn off and the common sources will stay on. If the local zone is the last
zone to be turned off the common sources will turn off as well. On MODE Free the cur-
rent zone will appear after a four second display of the System Status.
IPOD 1: 30G VIDEO
IPOD 2: NANO
DVD CHANGER
CD CHANGER
TUNER 1
TUNER 2
SOURCE NOT SELECTED
OPERATING MODE 3.1
The following describes basic source, zone and system control in a typical MODE/MZC installation. Functions may vary given
the programming options for the Hard keys and Virtual Buttons. The Operating MODE section applies to both MODE 3.1 and
MODE Free. Other than the Battery and the RF Signal Strength Icon (MODE Free only) in the Display Header and the Network
Settings and Sleep Timeout Setting in Keypad Settings (MODE Free, wireless mode only), the menus and screens are identi-
cal. For operational features unique to MODE Free, see: Operating MODE Free at the end of this section.
Figure 37
MODE Main Menu
Whole House
1. Press and Hold the Power Off Key for longer than 2 seconds. All zones and sources will turn off, unless “This Zone Ignores
Other Zone Initiations” is selected under Zone Setup/Whole House/Mute in EZ-Tools for a given zone. If selected, that
zone will ignore the Whole House Power Off Command and the common sources will stay on until the last zone is turned
off. The LCD on all MODE Keypads (3.1 & Free) controlling zones that have turned OFF will display the MODE Source
Menu. MODE Free will also display the current zone.
SELECT A SOURCE
1. Roll the Scroll Wheel to highlight a Source on the LCD. (If the Keypad is in ‘Standby’ rolling the Scroll Wheel or pressing
any button will wake up the Keypad.)
2. Press the Click Button to select the Source. The Zone will turn ON. The Source selected will be displayed at the top of the
LCD. (Refer to Figure 38)
ADJUST VOLUME
1. Rotate the Volume Knob clockwise to turn volume up. (The blue LEDs surrounding the knob will provide a visual refer-
ence to the volume setting.)
2. Rotate Volume Knob counter-clockwise to turn volume down. The blue LEDs surrounding the knob will provide a visual
reference to the volume setting.

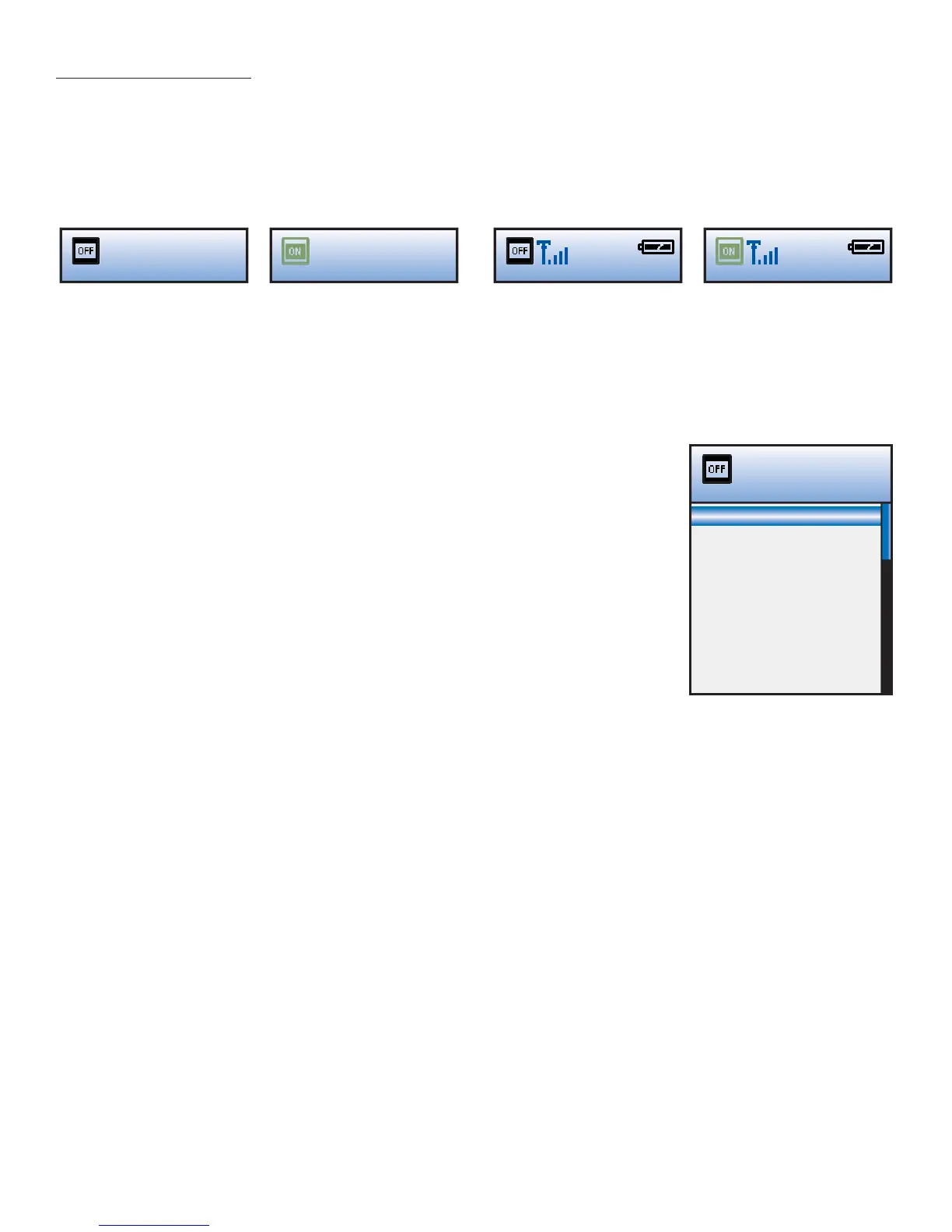

SOURCE NOT SELECTED Living
MODE 3.1 Zone OFF
MODE 3.1 Zone ON
MODE Free Zone OFF MODE Free Zone ON
The icons in the Keypad Headers indicate System, Keypad and Zone Status and are detailed in the following sections. The
main differences between MODE 3.1 and MODE Free are both indicate Zone ON Status with the green ON Icon and both
display the Source Selected. After four seconds MODE Free will change from Source Selected to the Zone for which it is
currently confi gured (MODE Free will change identities as it is docked and undocked from different Wall Docks in different
zones. MODE Free also indicates RF Signal Strength, (four bars indicates best reception). The Battery Icon will turn red with an
empty battery capacity icon to indicate low charge or a drained battery.
SOURCE NOT SELECTED Jeremys iPod
