CONNECTIONS
HEAD-END
MODE ADAPTER (Single)
1. Using a CAT5 patch cable with a pass-through confi guration, connect the Expansion Port on the MODE Adapter to the
Expansion Port on a MZC-64/66/88.
2. Using the included Stereo mini to RCA interconnect cable, connect the 3.5mm Line Out Jack on the MODE Adapter to
the appropriate Source Input on the MZC-64/66/88.
3. Using a CAT5 patch cable with a pass-through confi guration, connect the iPod Base Port on the MODE Adapter to
the Adapter Port on the MODE Base. If CAT5 cable was pulled during pre-wire and terminated with a wall plate in the
remote zone, connect the cable to the iPod Base Port on the MODE Adapter. Connect the RJ45 jack on the wall plate
to the Adapter Port on the MODE Base using a CAT5 cable with a pass-through confi guration.
4. Aux Input (optional) - Using a stereo mini to RCA interconnect cable, connect the L&R line level audio output of a
source to be added as an additional input such as a video game, XM or SIRIUS Tuner, Cable or Satellite receiver, etc.
to the 3.5mm AUX Input Jack. This will allow adding a local source to a MZC Zone and being able to play the audio
through the MZC amplifi er and Zone speakers. This input must be confi gured in EZ-Tools and is only selectable from
MODE Keypads.
5. When all connections have been made and confi rmed and the system is ready for operation, connect a SpeakerCraft
PS-3.0 power supply (sold separately) to the 24V DC jack on the MODE Adapter. Plug the PS-3.0 into an unswitched
120VAC outlet.
12V DC 1 AMP Adaptor Port
Aux. Input
USB
Line Out
Expansion
Aux. Input
iPod Base
24V DC
Adapter
Port
iPod Base
Port
Line Out
CAT5
CAT5 To MZC Expansion Port
Stereo Mini
to RCA
To MZC
Source In
SpeakerCraft
PS-3.0 24VDC
Power Supply

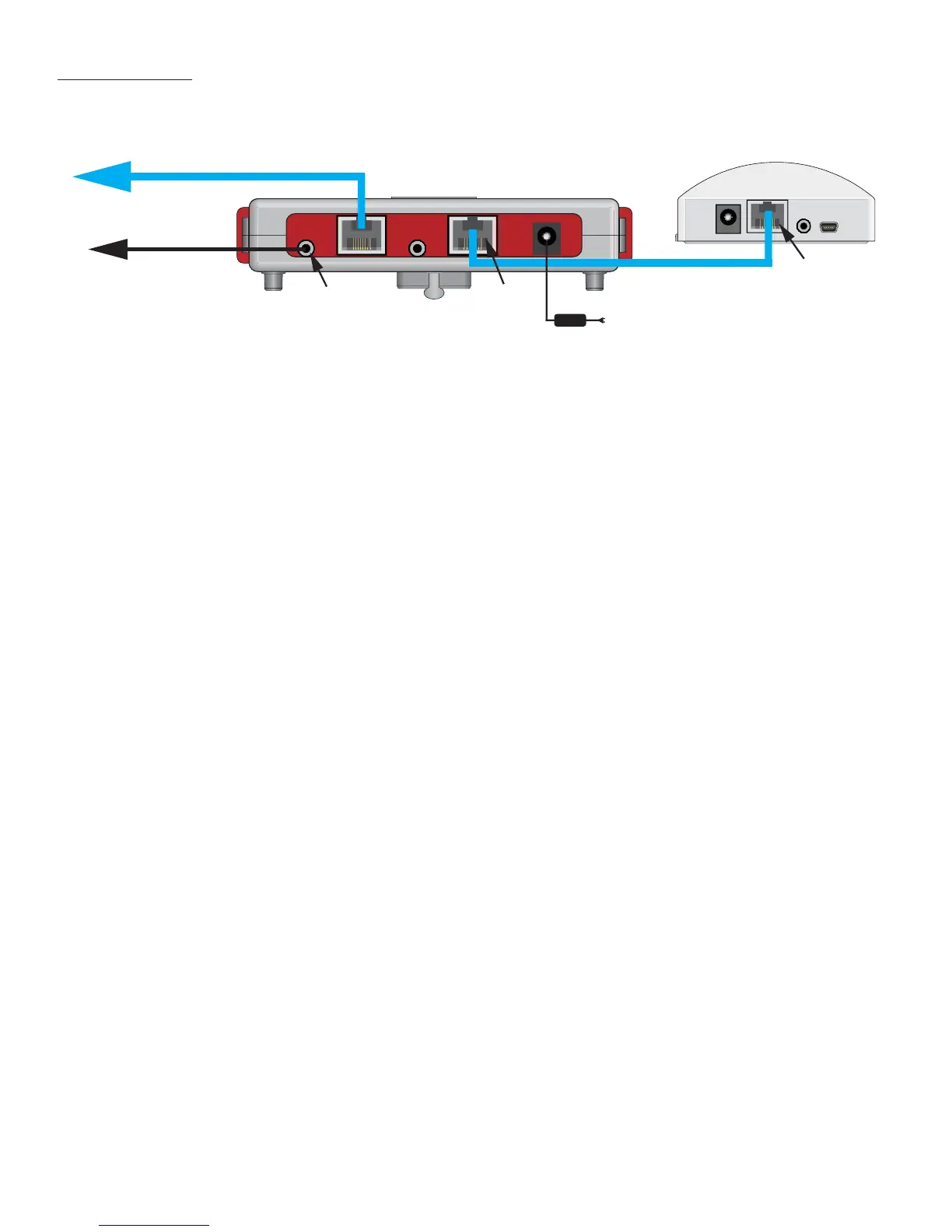

Figure 18
Single MODE Adapter/Base Connections
