17
MODE FREE WALL DOCK
Control/Metadata
CAT5 - Pull home-runs of CAT5 from each MODE Free Wall Dock location to the system head-end. MAXIMUM LENGTH:
500’
NOTE: All eight conductors of the CAT5 must be connected for proper signal strength on 500’ of cable.
MODE FREE COORDINATOR
Expansion Port
CAT5 - Pull CAT5 from the MZC to where the MODE Free Coordinator will be installed. For installations where the Coordi-
nator will be at the system head-end, a CAT5 patch cable can be used at time of installation and hook-up. For installa-
tions where the Coordinator will be in a remote location, pull CAT5 during pre-wire
and terminate with a proper wall
plate. MAXIMUM LENGTH: 50’.
WIRING (Pre-wire)
TV
TV
MODE Free
Coordinator
MODE Free
Keypad &
Table Dock
WIRELESS COVERAGE AREA 100’ RADIUS
MODE Free
Keypad &
Table Dock
Bedroom 1
Bedroom 2
Full
Bath
Den
Living
Room
Patio
Dining Room
Kitchen
Entry
Master Suite
Master
Bath
Deck
Half
Bath
Pantry
Closet
Garage
OUT OF
RANGE
Back Yard
Area
Fornt Yard
Area

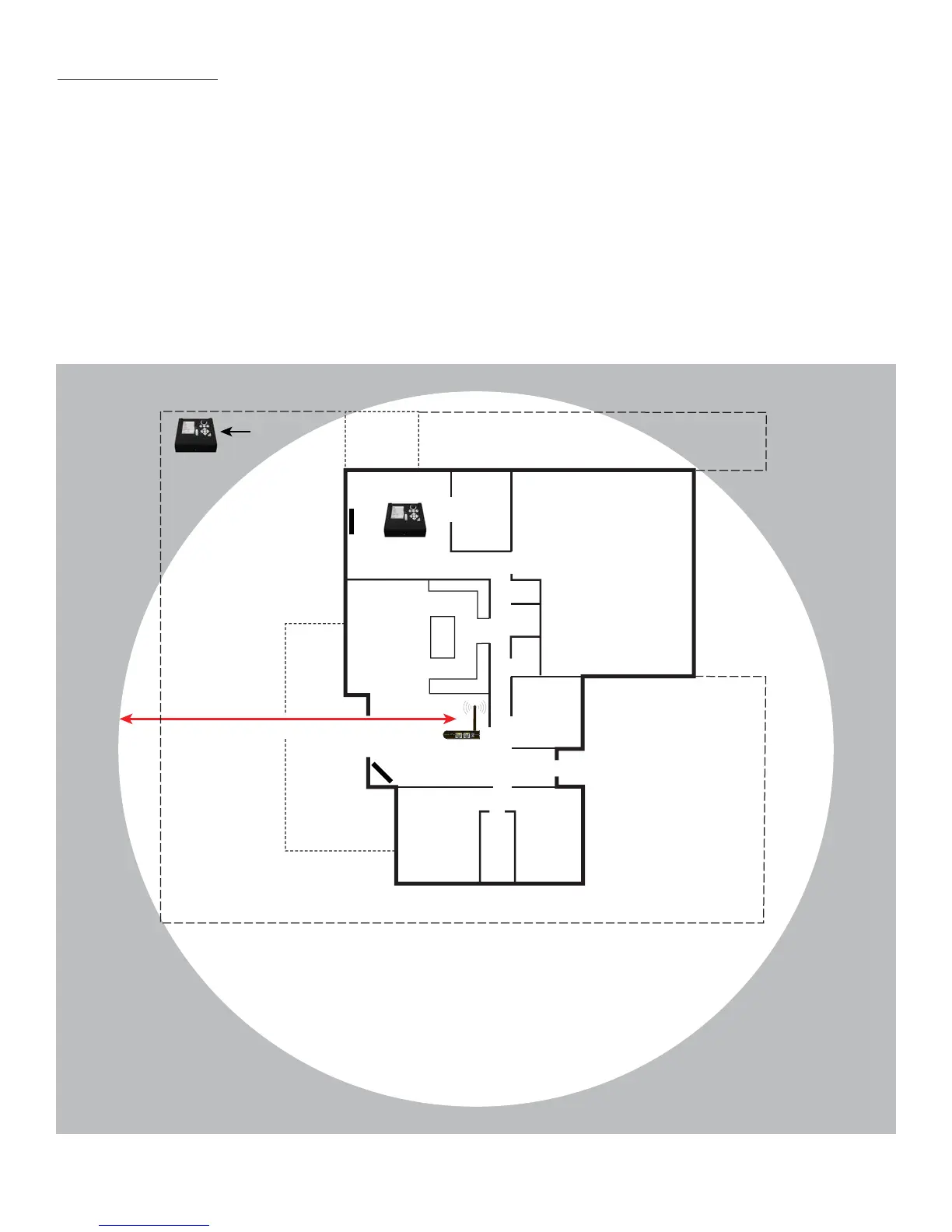

MODE Free Coordinator Wireless Coverage Area
WIRELESS COVERAGE AREA 100’ RADIUS MAY VARY GIVEN
RF ENVIRONMENT, BUILDING CONSTRUCTION MATERIALS
AND THE PRESENCE OF LARGE METAL OBJECTS SUCH AS
REFRIGERATORS.
