DG813/DG613
Components
SF803
DG613
DG813
RC803
Recharge
kit
1
3
Table of Contents

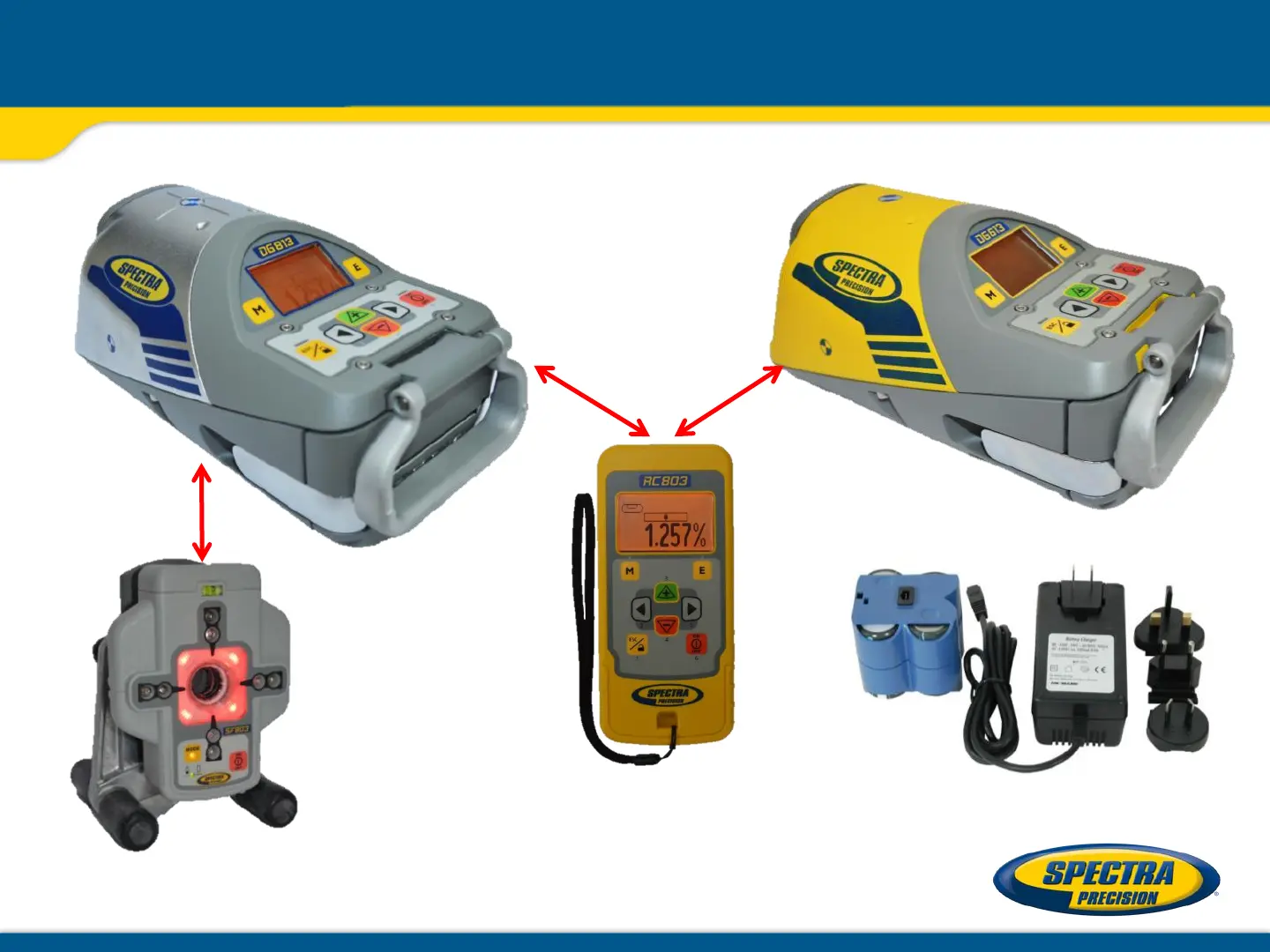

DG813/DG613 Components
2
Powering the Laser
3
Installing Batteries
4
Powering the Remote Control RC803
5
Using the Remote Control RC803
6
Powering the Spot Finder SF803
7
Components Spot Finder SF803
8
Battery Compartment
9
Battery Door Latches
9
LCD Graphic Display
9
Grade Axis Pivot Marker
9
Axis Alignment Markers
10
Mounts for Scope Adapter
10
5/8”-11 Threaded Mount
10
Remote Receiver Window
10
DG813/DG613 Controls
11
Power Button
11
M – Menu Button
11
E - Enter Button
11
Left Line Control Button
12
Plus Button
12
Minus Button
12
Right Line Control Button
12
SF803 – Controls, Features and Functions
13
Battery LED
13
Mode LED
13
Red Direction Leds
13
Pairing DG813/DG613 with RC803
14
Pairing DG813 with SF803
15
DG813/DG613 Setup
16
Line Alert
18
Standard Display Laser and RC803
19
Menu Functions – Radio Controlled
20
Menu Functions Available at the DG813
20
Menu Functions Available at the DG613
20
Menu Functions – Radio and IR Controlled
21
Menu Functions
22
IR-Menu Functions Available at the DG613
22
Menu Functions – Entering Grade
23
Digit Select Mode (Default)
23
Step + Go Mode:
24
Menu Functions – Spot Align (Only DG813)
25
Automatic Spot Align
25
Spot Align at the Jobsite - First Day Setup
27
Spot Align at the Jobsite
28
Menu Functions – Spot Match (Only DG813)
30
Automatic-Spot-Match
30
Spot Match at the Jobsite
31
Menu Functions – Spotlok (Only DG813)
33
Menu Functions – Manual Spot Search (Only DG813)
34
Spot Search
34
Menu Functions – Line Scan / Line Set Check
35
Line Scan
35
Line Set/Check -
35
Menu Functions – Reference Check / Standby Mode
37
Start Reference Check
37
Standby Mode
37
Menu Functions – Info
38
Menu Functions – Service / Entering Setting Details
39
Service
39
Setting Menu Details
39
Settings – Grade Entry / Grade Display
40
Settings – Sensitivity / Line Alert
41
Sensitivity Selection
41
Settings – User Name / Set Password
42
Settings – Password On/Off / RF Channel
43
Settings – Language / Position Info
44
Troubleshooting DG813/DG613
45
Laser Setup - Existing Accessories
46
Laser Setup Using 1230/1239
47
Laser Setup Using T-Bar/1239
48
T - Bar with 1239 Fixed Pole for Big Pipes
48
