Spot Search mode is used for pipe laying by detecting the beam manually using the
Spot Finder SF803 and can be activated in automatic and manual mode.
Using the “Over the Top” application, the Spot Finder detects the fan beam while the remote
control’s display provides the information for positioning the pipe correctly at the required
direction and elevation.

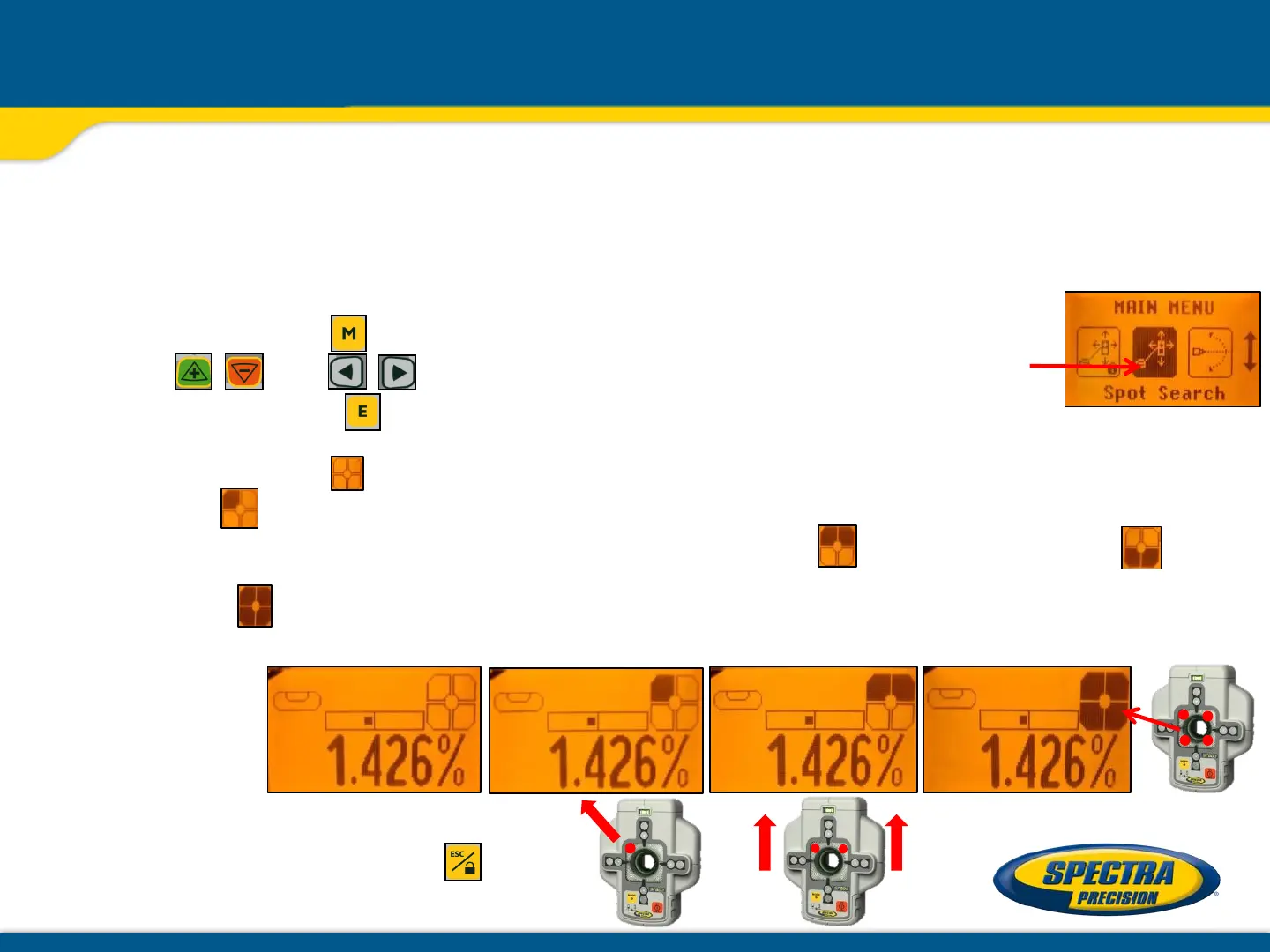

Press and release the button at the standard display and select Spot Search
using the and buttons.
Pressing and releasing button starts the manual Spot Search mode while the
beam becomes a rotating fan beam.
The empty SF symbol indicates the Spot Search mode has been activated.
A black block at the SF symbol indicates the beam position at the Spot Finder and gives the
direction for finding the center of the beam. Two black blocks on top or the bottom of the
SF symbol confirm the correct direction.
4 black blocks at the SF symbol confirm the Spot Finder has been adjusted to the center of
the beam which means the pipe has been placed correctly.
Manual Spot Search can be exited any
time by pressing and releasing button.
Menu functions – Manual Spot Search (only DG813)
