6.6 Replacing parts of sample probe
Caution! Risk of burns!
 Contacting the electrode increases the risk of burn injuries. During normal
operation, the electrode will heat up to several hundred degrees.
 Never touch the electrode with your bare hands, even after shutting
down the spectrometer. Always use pliers.
 If an adapter is used for several measurements in a row, it can get hot.
 Touch the adapter only after it has sufficiently cooled.
 A sample can get hot if it is measured several times.
 Touch the sample only after it has sufficiently cooled.
6.6.1 General arrangement of test probe parts

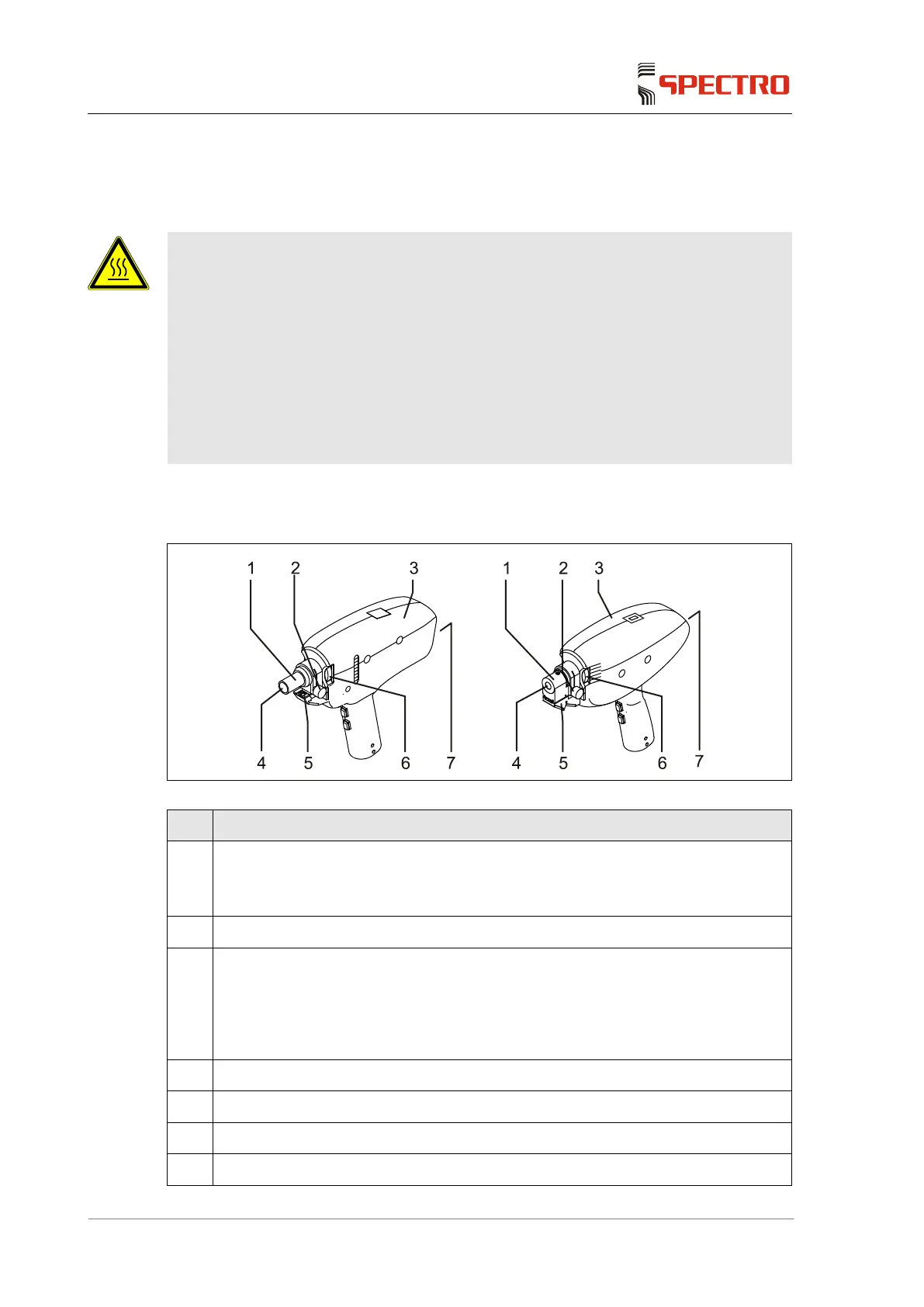

Fig. 6
No. Display
1
Adapter
 In the illustration on the left-hand side is the adapter for the arc excitation
 In the illustration on the right-hand side is the adapter for the arc excitation
2
Knurled screw for the adapter
3
Test probe
 In the illustration on the left-hand side is the standard test probe for the
arc/spark excitation
 In the illustration on the right-hand side is the test probe for the arc/spark
excitation incl. UV optics
4
Electrode
5
Holder for light-sensitive surface, air optics
6
Locking wheel for the electrode
7
Air filter
