Theory of Operation
Theory of Operation
Introduction
The water system consists of the hot and cold water inlet valves and the dispenser distribution system
along with a traditional pressure switch.
Water Inlet Valves
The hot and cold water inlet valves are located at the back, top-left of the washer. These valves receive a
control signal from the Module Board to manage the temperature of incoming water. The temperatures
are determined by the specifi c wash temperature selected. (See chart on next page)
Dispenser Distribution System
All wash and rinse water is introduced into the drum through a Dispenser Distribution System that di-
verts the incoming water to one or more of the follow water inlet modes: Detergent Dispensing, Bleach

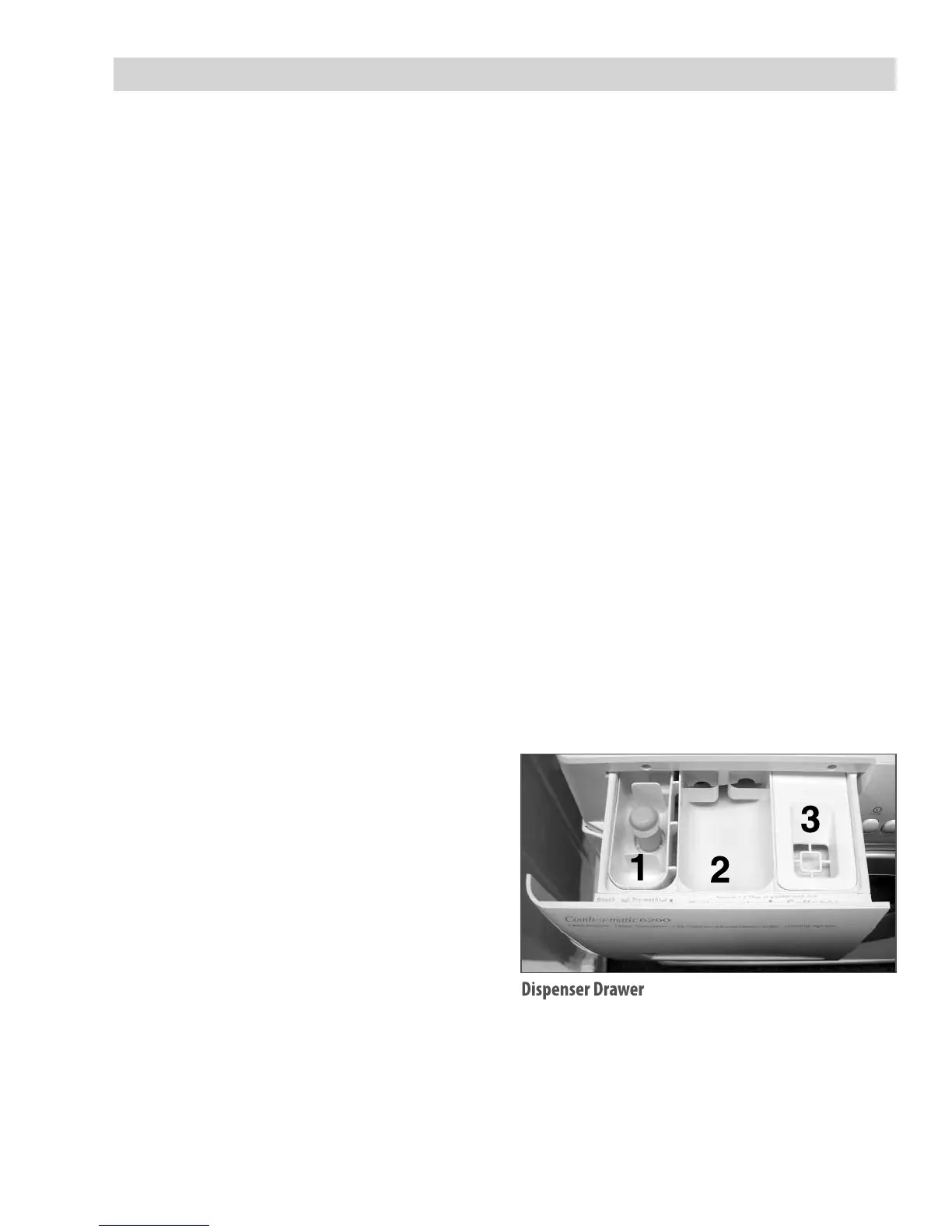

Dispensing, Fabric Softener Dispensing. The dispenser drawer has three separate compartments (plus
one removable bin) for adding laundry products to the wash load. These compartments are:
1. Prewash Detergent (w/re-
movable Bleach Bin)
2. Main Wash Detergent
3. Fabric Softener Compartment
All of the water fl ows through
the dispenser assembly. Laundry
products are diluted and
dispensed automatically at the
proper time during the wash cy-
cle. Refer to “Use and Care Guide”
that came with the appliance for
proper use of laundry aids.
The Splendide Front-Loading Washer-Dryer models present many new features and characteristics that
are diff erent from previous models. In addition to the introduction of electronic controls, the washer-
dryer contains a number of unique operating features designed to off er extremely high water and
energy conservation while increasing fabric cleaning results.
Water System
