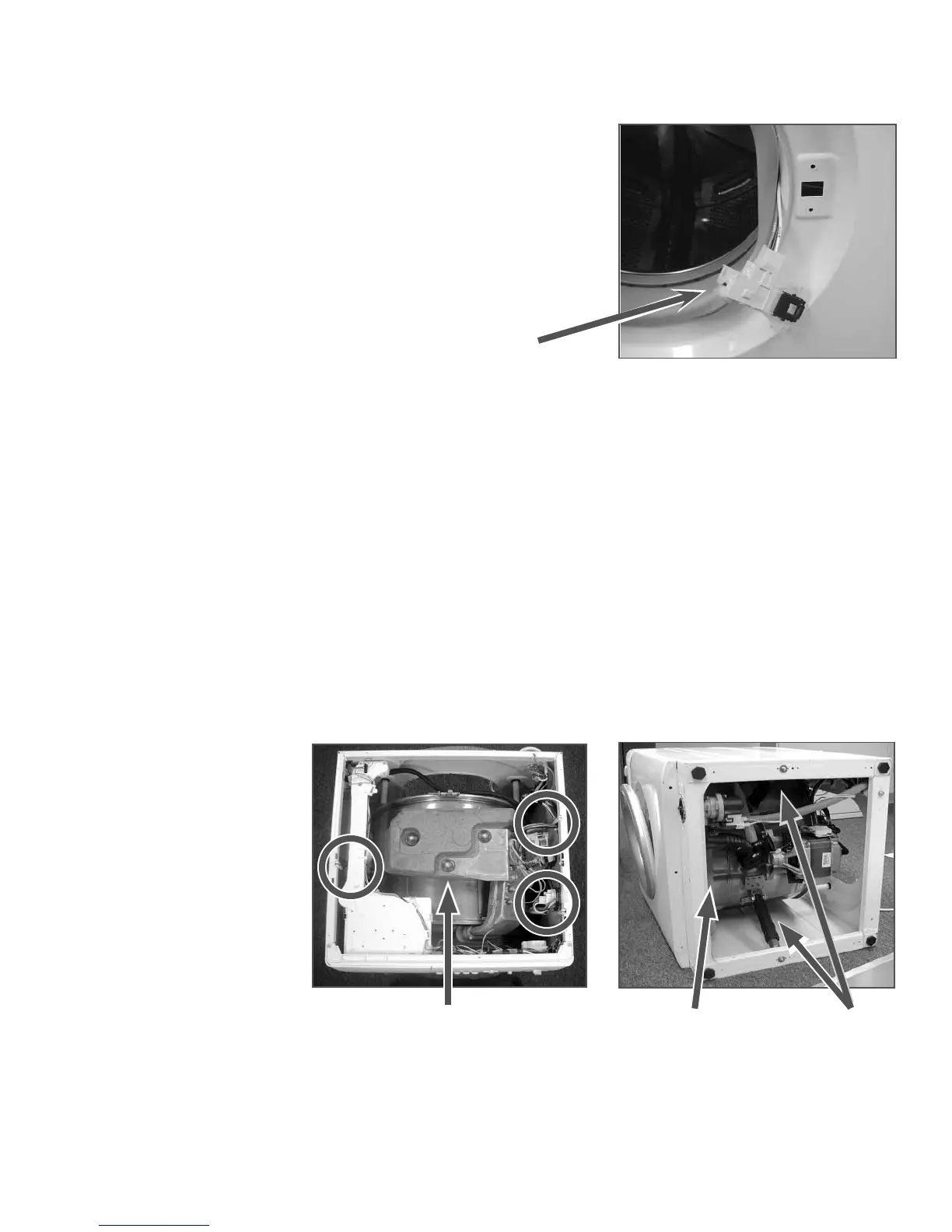

Theory of Operation
The Door Lock/Switch Assembly is located on
the right side of the door opening. The assembly
contains a bi-metal operated latching mechanism
that will electrically lock the door during a wash
or dry cycle.
The drum assembly is held in position with two shock absorbers attached to the bottom sides of the
tub assembly. In addition, the drum is suspended from the top frame of the washer with three springs
attached to the sides of the case.
Stability for this suspension system is provided by two concrete counter weights. One is located at the
top and one at the bottom-front of the outer drum.
Door Lock/Switch Assembly
Shock Absorbers
Door Lock/Switch Assembly
Suspension System
Top Counter Weight
Springs
Bottom/Front
Counter Weight
