Component Testing Procedures

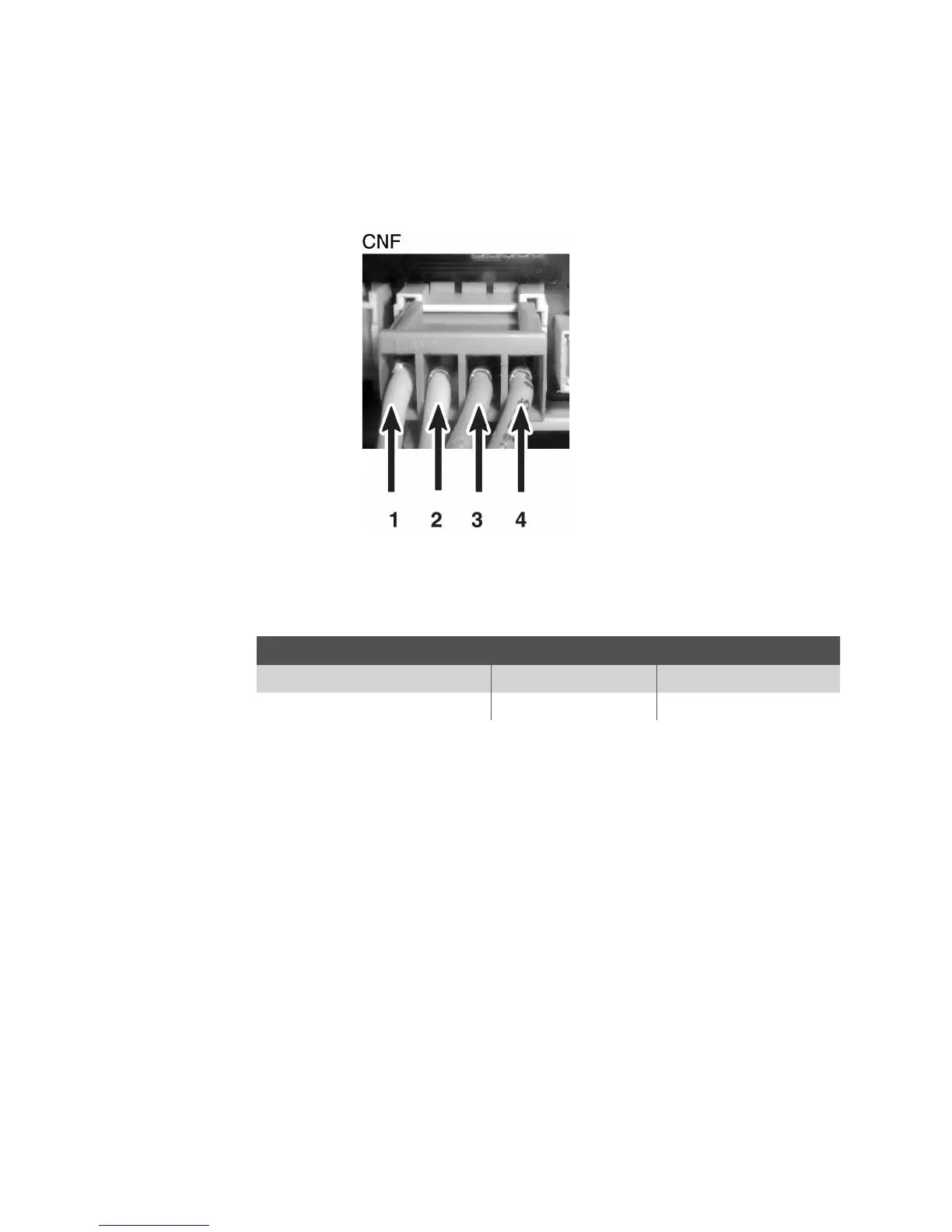

Fan Motor and Water Pump Test Points are located on the CNF connector on the Module Board
(See “Connector Locations on the Module Board”).
Fault Codes: F05, F11, F13
. Fan Motor / Water Pump Test
Test Points Reading
CNF Connector (Fan Motor) 1 to 2 7.5 ohms
CNF Connector (Water Pump) 3 to 4 22.5 ohms
