Splendide WD2100 - Page 58

Component Testing Procedures

Dry Time Selector Test Points Reading
0 min. 9 to 10 4.6K ohms
30 min. 9 to 10 2.5K ohms
50 min. 9 to 10 919 ohms
70 min. 9 to 10 0 ohms
90 min. 9 to 10 INFINITY (OL)
100 min. 9 to 10 50.2K ohms
110 min. 9 to 10 12.94K ohms
120 min. 9 to 10 8.02K ohms
Water Temp. Selector Test Points Reading
Hot 11 to 12 4.6 K ohms
Warm 11 to 12 INFINITY (OL)
Cold 11 to 12 8.02K ohms

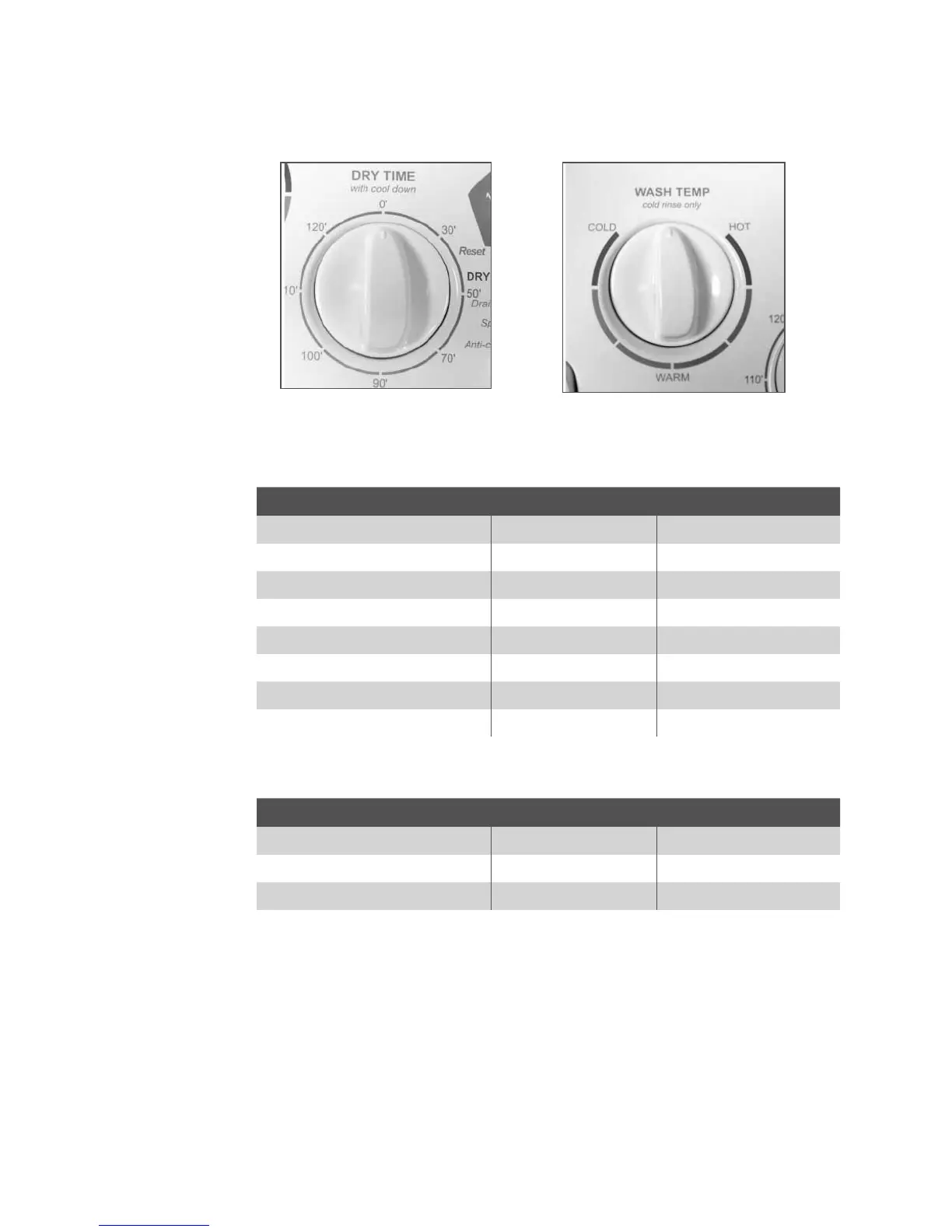

Dry Time Selector
Wash Temp Selector
