ST B-U585I-IOT02A User Manual

MIPI10 STDC14 pin CN9 Designation
- 13 T_VCP_RX Target RX used for VCP (UART supporting bootloader)
- 14 T_VCP_TX Target TX used for VCP (UART supporting bootloader)
TAG connector
The CN10 TAG connector is implemented on the B-U585I-IOT02A Discovery kit. The TAG connector is a 10‑pin
footprint supporting SWD mode, which is shared with the same signals as the ST-LINK. The TC2050-IDC-NL
cable is the recommended one to link ST-LINK and TAG connectors on the B-U585I-IOT02A Discovery kit so that
the MCU can be easily programmed and debugged without any extra accessories.

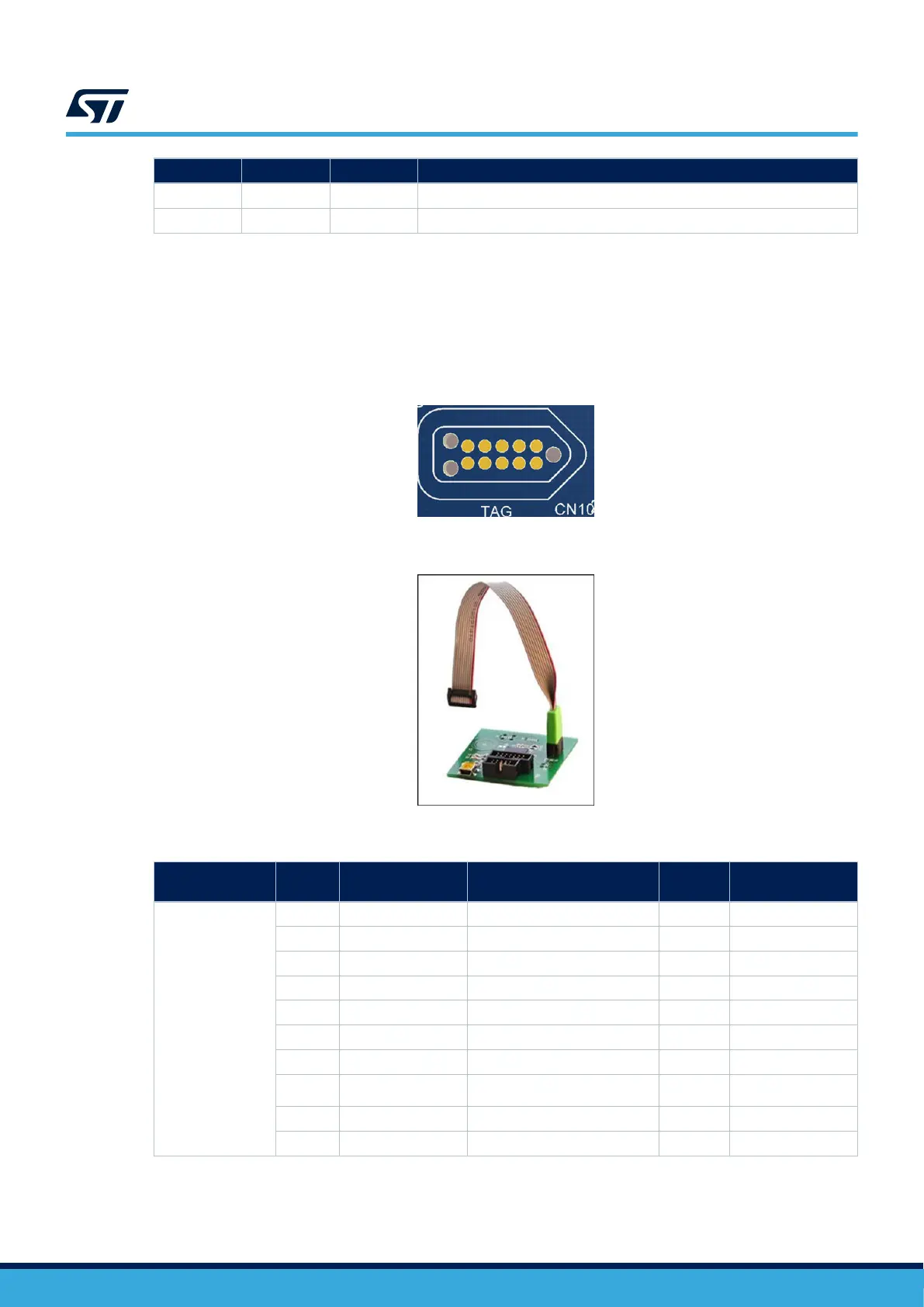

Figure 8. TAG connector
Figure 9. TC2050-IDC-NL cable
Table 5. TAG connector pinout
Connector
Pin
number
Pin name Signal name
STM32U5
pin
Function
CN10
1 3V3 3V3 - Power
2 SWD T.SWDIO PA13 Serial wire data I/O
3 GND - - Ground
4 SWCLK T.SWCLK PA14 Serial wire clock
5 GND - - Ground
6 SWO T.SWO PB3 Serial wire output
7 NC - - -
8
JTDI
T.JTDI PA15 Serial wire input
9 NC - - -
10 NRST NRST NRST RESET
UM2839
Embedded STLINK-V3E
UM2839 - Rev 4
page 14/54
