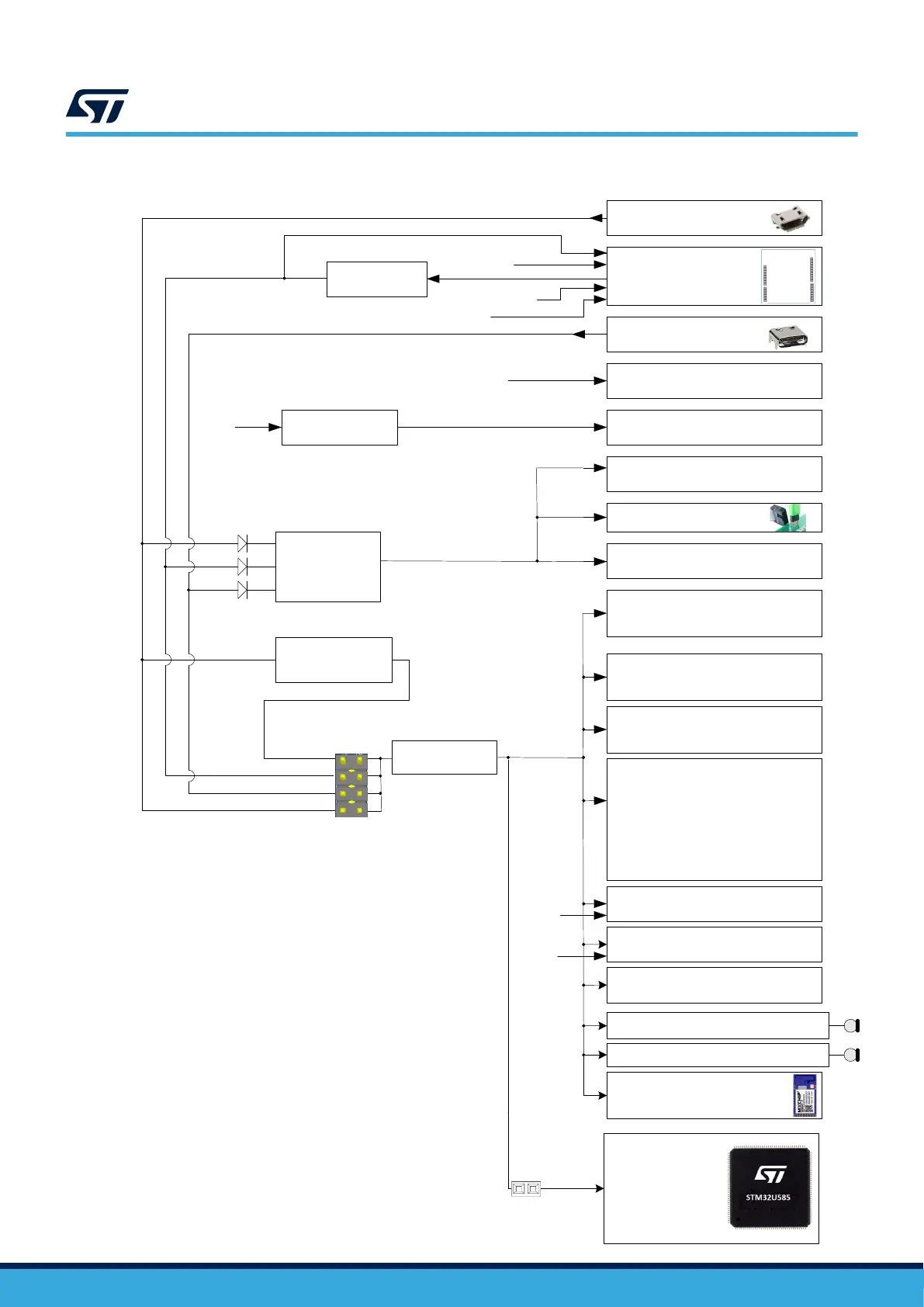

Figure 14. Power tree

DT55062V1

TAG

USB_ST_LINK

5V_UCPD

ARDUINO

2*STMod+ connectors

STLINK-V3E

Camera connector

STM32U585AII6Q

MCU

ST_LINK debug

MP23DB01MMTR digital microphone

MXCHIP EMW3080BP

Wi-Fi

module

APS6408L-xOB

64-Mbit Octo-SPI SRAM

MEMS:

IIS2MDCTR gyroscope,

ISM330DHCX magnetometer,

LPS22HH barometer,

HTS221 humidity and temperature,

VL53L5 time-of-flight,

and VEML6030 ambient light

sensors

M24256-DFMC6TG I

C memory.

Pmod™ connector

STSAFE-A110

authentication and security

MP23DB01MMTR digital microphone

ST1L05APU33R

3V3

VDD_MCU

JP3

U19

JP4

STMPS2151STRP

5 V/500 mA

power switch

U18

LD3985M33R

LDO

U35

5V_USB_STLK

5V_VIN

5V_UCPD

5V_USB_CHGR

LD1117S50TR

LDO

U38

5V_VIN

VREFP

VIN

3V3

5V_VIN

5V_USB_STLK

3V3_STLK

LD1117STR

U36

5V_UCPD

MX25LM51245GXDI00

512-Mbit Octo-SPI flash

STM32WB5MMGH6TR

Bluetooth

module

2V8

CN13

CN14

CN17

CN16

UM2839

Power supply

UM2839 - Rev 4

page 18/54
