ST B-U585I-IOT02A User Manual

7.11
ARDUINO
®
Uno V3 connectors
CN13, CN14, CN16, and CN17 are female connectors (SMD component devices) compatible with ARDUINO
®
standard. Most shields designed for ARDUINO
®
can fit the B-U585I-IOT02A Discovery kit board.
The ARDUINO
®
connector on the B-U585I-IOT02A Discovery kit board supports the ARDUINO
®
Uno V3.
The I/Os of the STM32U585AII6Q microcontroller are 5V tolerant, so no issue with ARDUINO
®
compatibility.

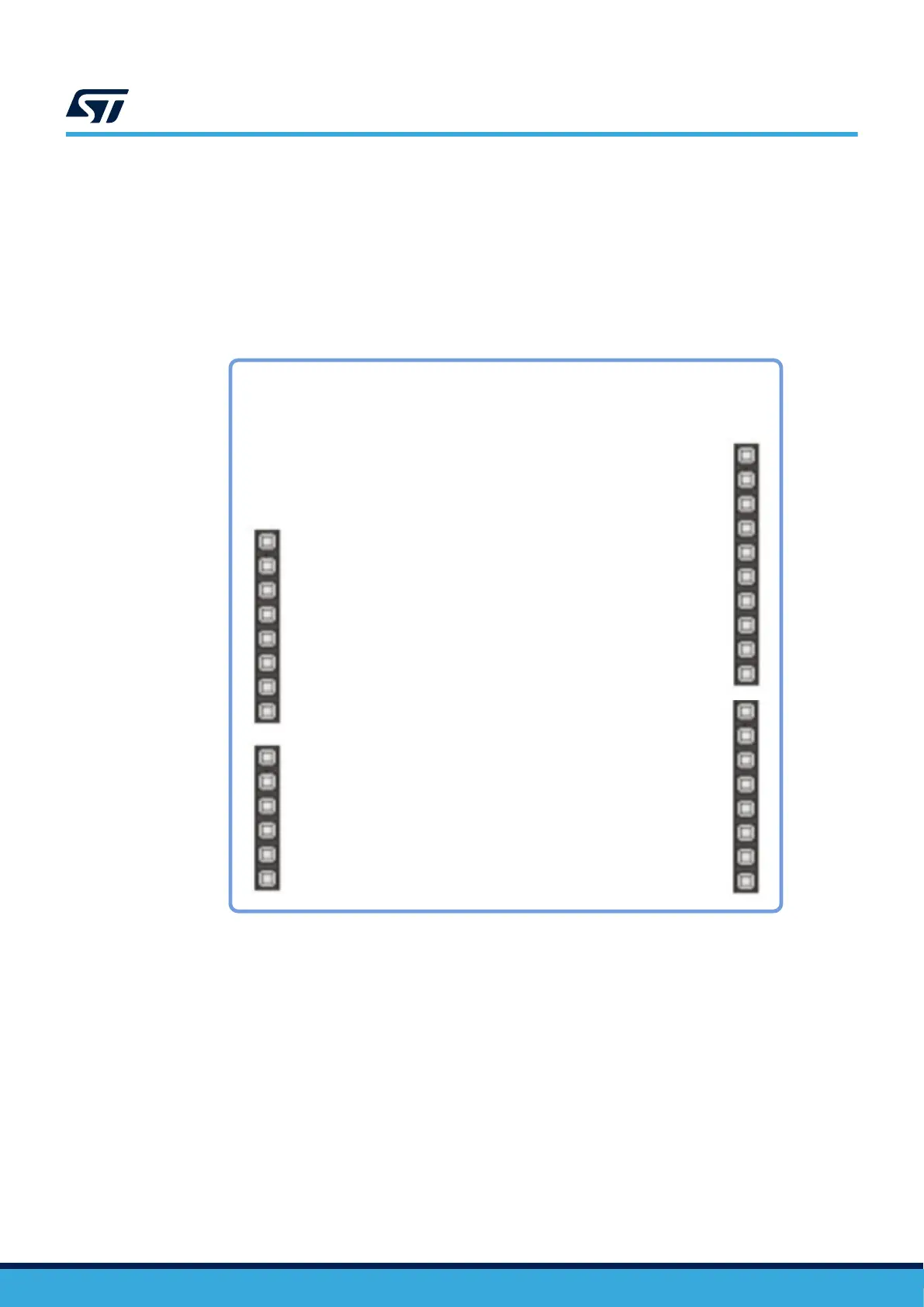

Figure 25. ARDUINO
®
connector (front view)
CN13
CN14
CN17
CN16
1
10
1
8
1
6
1
8
UM2839
ARDUINO® Uno V3 connectors
UM2839 - Rev 4
page 32/54
