7.14 Camera daughterboard connector
On the B-U585I-IOT02A Discovery kit, it is possible to connect a camera module such as B-CAMS-OMV using
the CN7 camera connector.

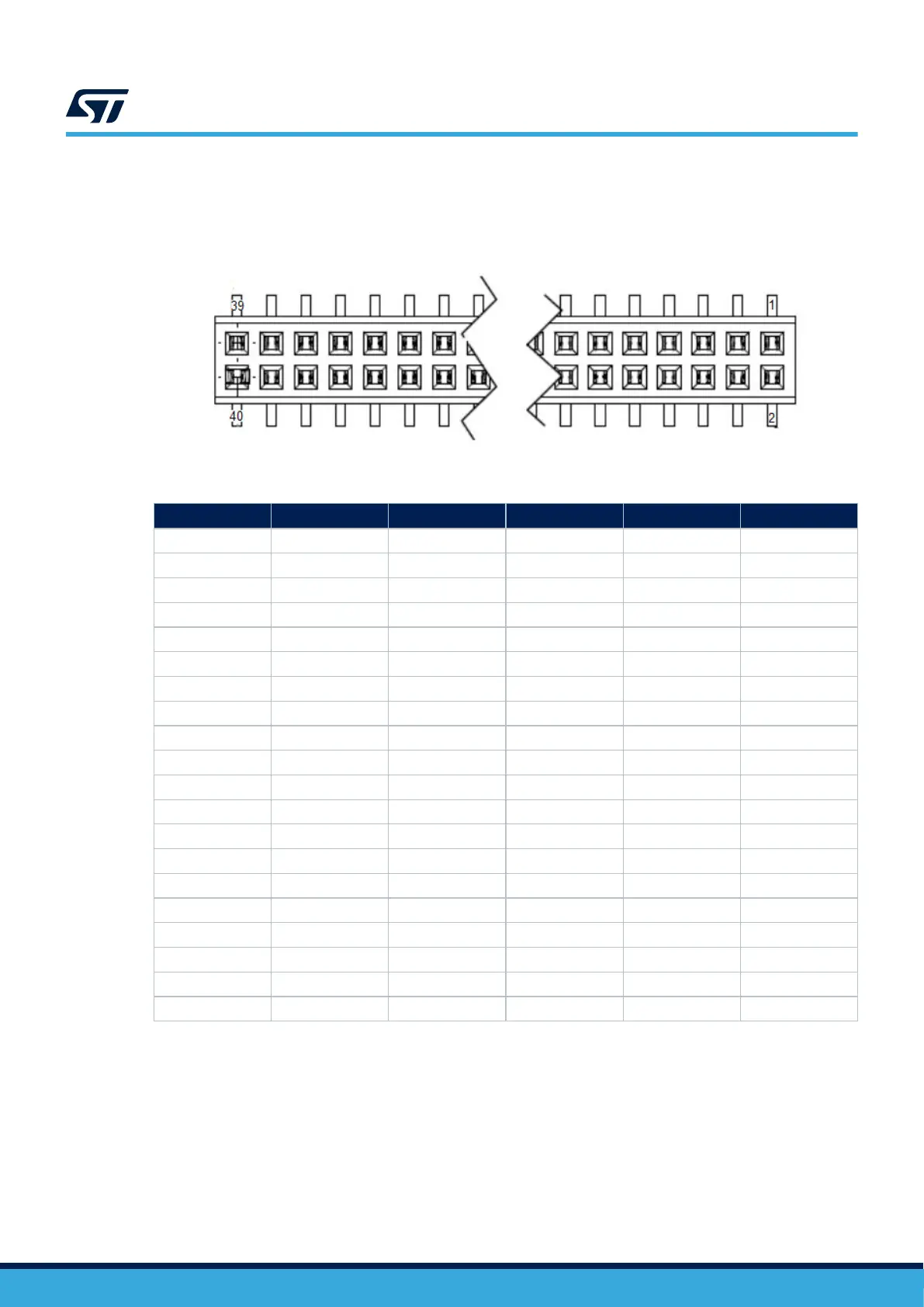

Figure 26. CN7 camera daughterboard connector (top view)
Table 28. CN7 camera daughterboard connector pinout
Pin number Description Pin connection Pin number Description Pin connection
1 TP7 - 2 TP4 -
3 GND GND 4 GND GND
5 - - 6 D11 PH15
7 GND GND 8 GND GND
9 - - 10 - -
11 GND GND 12 GND GND
13 I2C_SCL PB8 14 I2C_SDA PB9
15 PLUG PI1 16 GND GND
17 RSTI PI2 18 TP6 -
19 XSDN PI3 20 TP8 -
21 GND GND 22 GND GND
23 D0 PC6 24 D1 PC7
25 D2 PC8 26 D3 PE1
27 D4 PH14 28 D5 PI4
29 D6 PI6 30 D7 PI7
31 HSYNC PH8 32 VSYNC PB7
33 PIXCLK PA6 34 TP9 -
35 TP11 - 36 TP10 -
37 GND GND 38 GND GND
39 2.8 V 2V8 40 2.8 V 2V8
UM2839
Camera daughterboard connector
UM2839 - Rev 4
page 36/54
