– 13 –
A
Paper Guide
3-7-2. Using57.5mmWidthPaperRoll
When using a paper roll with 57.5 mm width, install the supplied paper guide on the printer.
To change the eective print width (roll paper width), change the setting at memory switch
conguration Utility. For details on the setting of the memory switches, refer to the soware
manual located in the “Documents” folders on the CD-ROM.

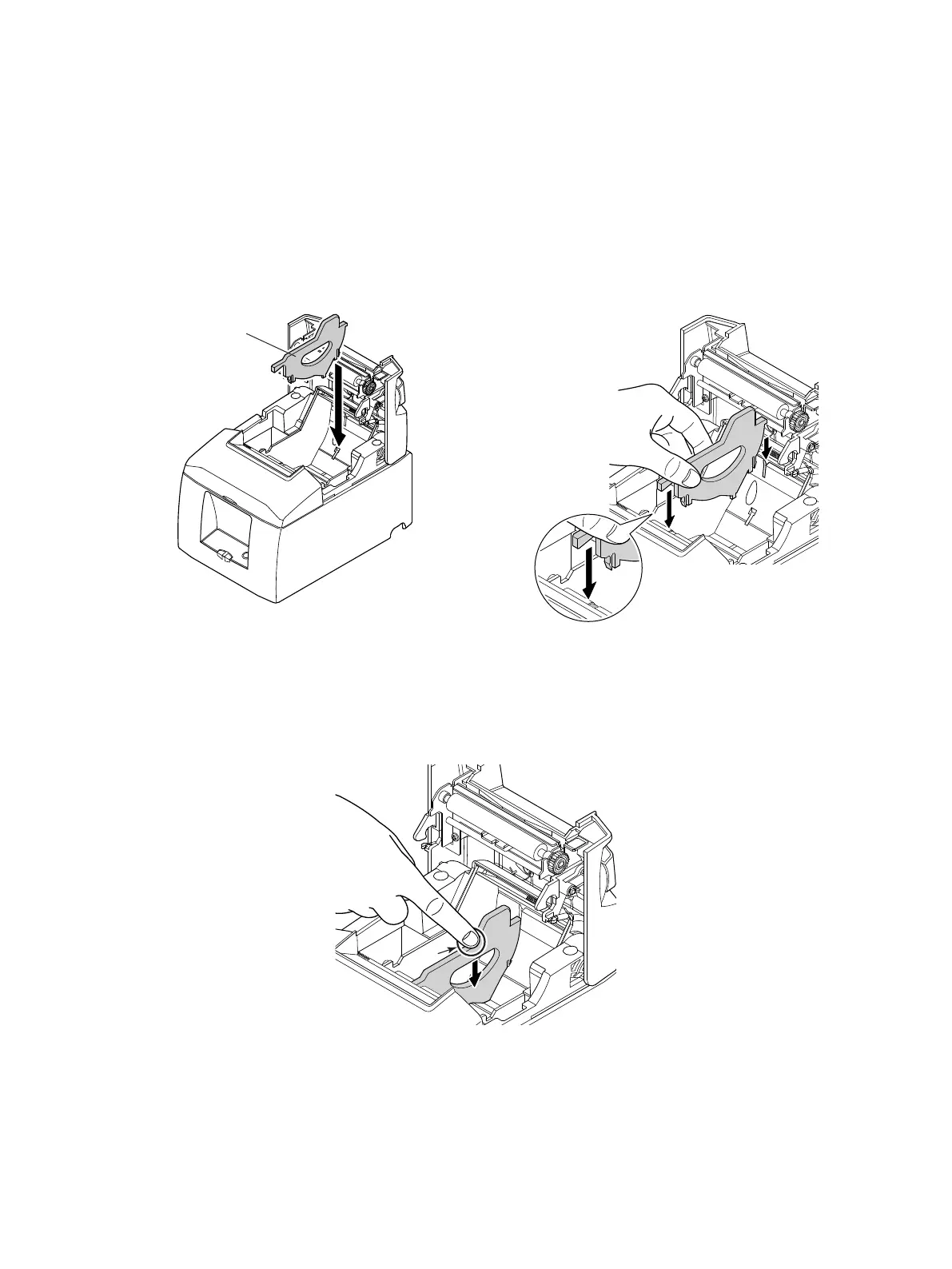

1 Insert the paper guide along the groove in the unit as shown.
2 Insert the paper guide by pushing the area marked “A” down until it clicks into place.
Note: Aer using a paper roll with a width of 57.5 mm, do not change to a paper roll
with a width of 79.5. (is is because the printer head has deteriorated as a result of
a portion of the head having been in direct contact with the platen.)
