Star TSP650 - 10-2. Auto Cutter Specifications; 10-3. Interface; 10-4. Electrical Characteristics (AC adapter)

– 30 –

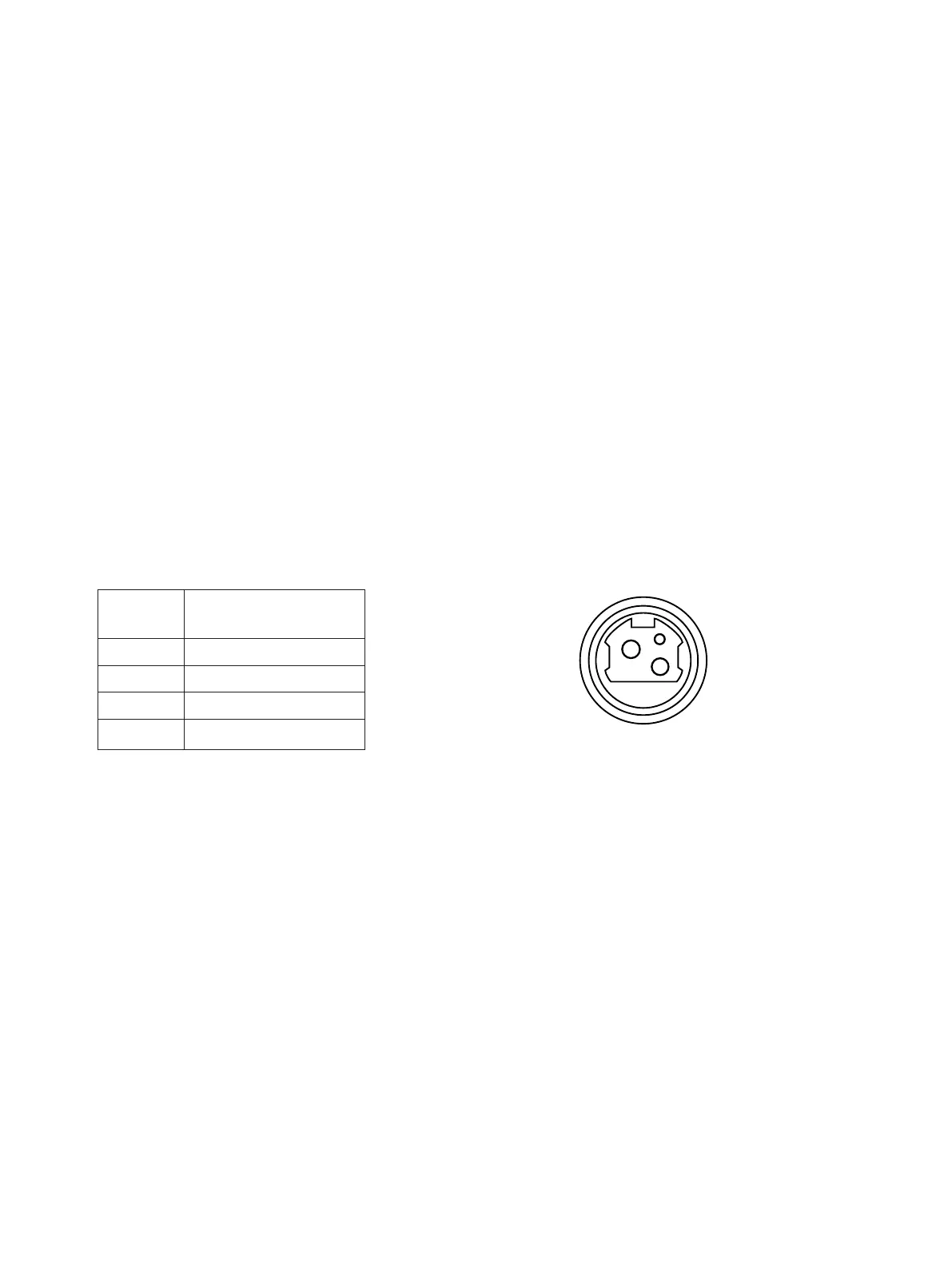

<Viewed from Connector Surface>
1
2
3
10-2. AutoCutterSpecications
(1) Cutting Modes Partial cut (leaves one uncut portion in center of paper)
(2) Cutting Duty Min. 3 seconds/cut
(3) ickness of paper 0.065 ~ 0.085 mm
10-3. Interface
RS-232C serial interface / Two-way parallel interface (IEEE1284)
10-4. ElectricalCharacteristics(ACadapter)
(1) Input: 100 to 240 V AC, 50/60 Hz
(2) Output: DC 24 V ± 5%
(3) Current Consumption (DC 24 V at room temperature)
Standby: Approx. 0.15 A
ASCII printing: Approx. average 1.7 A
(Approx. 17.5% printing rate)
100% print duty: Approx. peak 9.0 A
(Solid printing): Approx. average 5.0 A
(Continuous solid printing should be 10 seconds or less.)
(4) Power Connector
Pin
No.
Function
1 Drive power (24 V)
2 Signal GND
3 N.C.
Shell Frame ground
Note:
• When using a printer power supply other than the optional AC adapter (PS60A-24 series),
be sure that the following cautions are observed.
• Use a power supply of DC 24 V ± 5% and more than 2.0 A (5.0 A Load 10 sec. Min.) with
SELV output and LPS or Class 2 output approved by IEC60950.
• Be careful about installing the printer in an area where there is noise. Take the appropri-
ate measures to protect against electrostatic AC line noise, etc.
