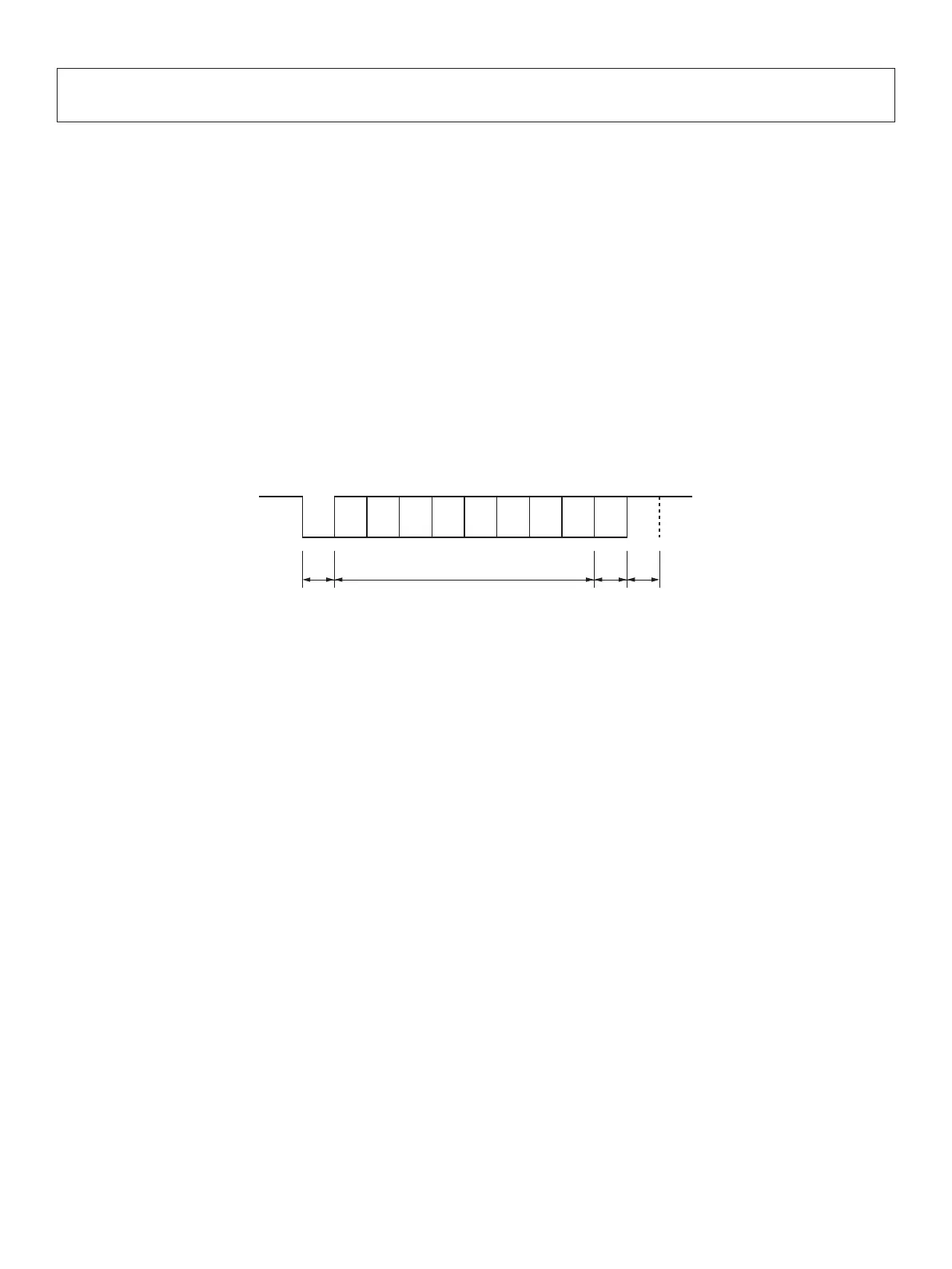

A: Start bit
B: Data bit
C: Parity bit
D: Stop bit
A B C D
b0 b1 b2 b3 b4 b5 b6 (b7)
MARK “1”
SPACE “0”
13. RS-232C Serial Interface
13-1.InterfaceSpecications
1 Data transmission method: Asynchronous serial interface
2 Baud rate: Selectable from 4800, 9600, 19200, 38400 bps
(Refer to “11. DIP Switch Setting”.)
3 Word length Start bit: 1 bit
Data bit: 7 or 8 bits (selectable.)
Parity bit: Odd, even or none (selectable.)
Stop bit: 1 bit length
4 Signal polarity RS-232C
MARK: Logic “1” (–3 V to –15 V)
SPACE: Logic “0” (+3 V to +15 V)
