– 25 –
C
C
B
A

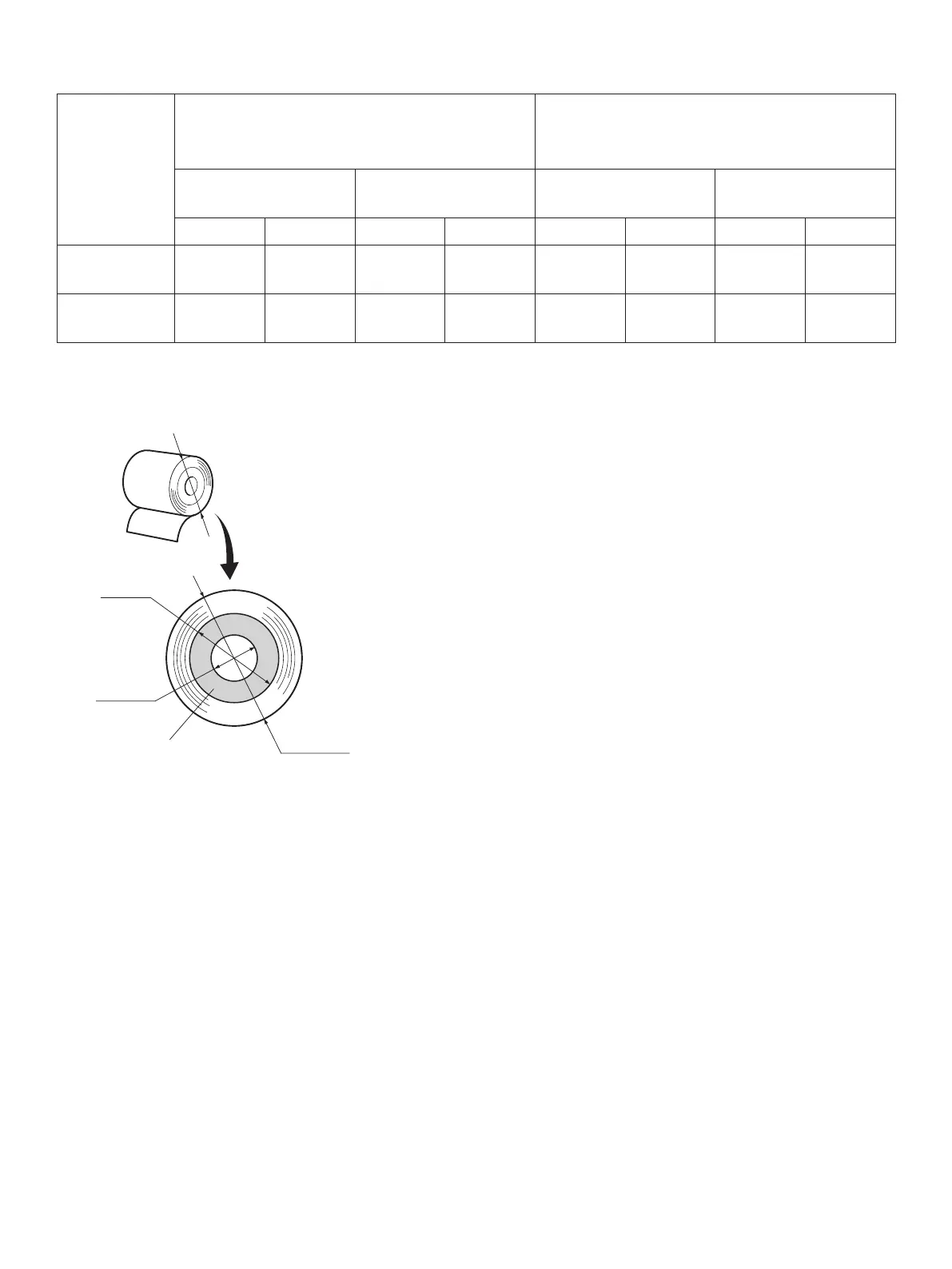

Paper roll core
Adjustment value according to the paper you are using
Paper Width
(μm)
Horizontal (standard) Layout
ø12 (A) inner diameter / ø18 (B) outer di-
ameter core roll paper
Vertical Layout or Wall-Mount
ø12 (A) inner diameter / ø18 (B) outer di-
ameter core roll paper
Detected diameter
(C) (mm)
Remaining paper
length (m)
Detected diameter
(C) (mm)
Remaining paper
length (m)
Level 1 Level 2 Level 1 Level 2 Level 1 Level 2 Level 1 Level 2
65 Approx.
ø23
Approx.
ø29
Approx.
2.5
Approx.
6.3
Approx.
ø23
Approx.
ø29
Approx.
2.5
Approx.
6.3
85 Approx.
ø23
Approx.
ø29
Approx.
1.9
Approx.
4.8
Approx.
ø23
Approx.
ø29
Approx.
1.9
Approx.
4.8
Notes:
1) e adjuster is factory-set at level 1.
2) e detected diameter and remained paper length
given in the table are calculated values, and there are
some variances depending on the rolled state of the
paper, the actual mechanism, or the printing pat-
tern.
3) If thick paper is used (paper thickness between
80 μm and 85 μm), the paper roll may loosen and
cause variances in the detected values. erefore,
setting the adjuster to Level 2 is recommended.
