Steris SYSTEM 1E - Page 141

To Next Page

To Previous Page

764333-676

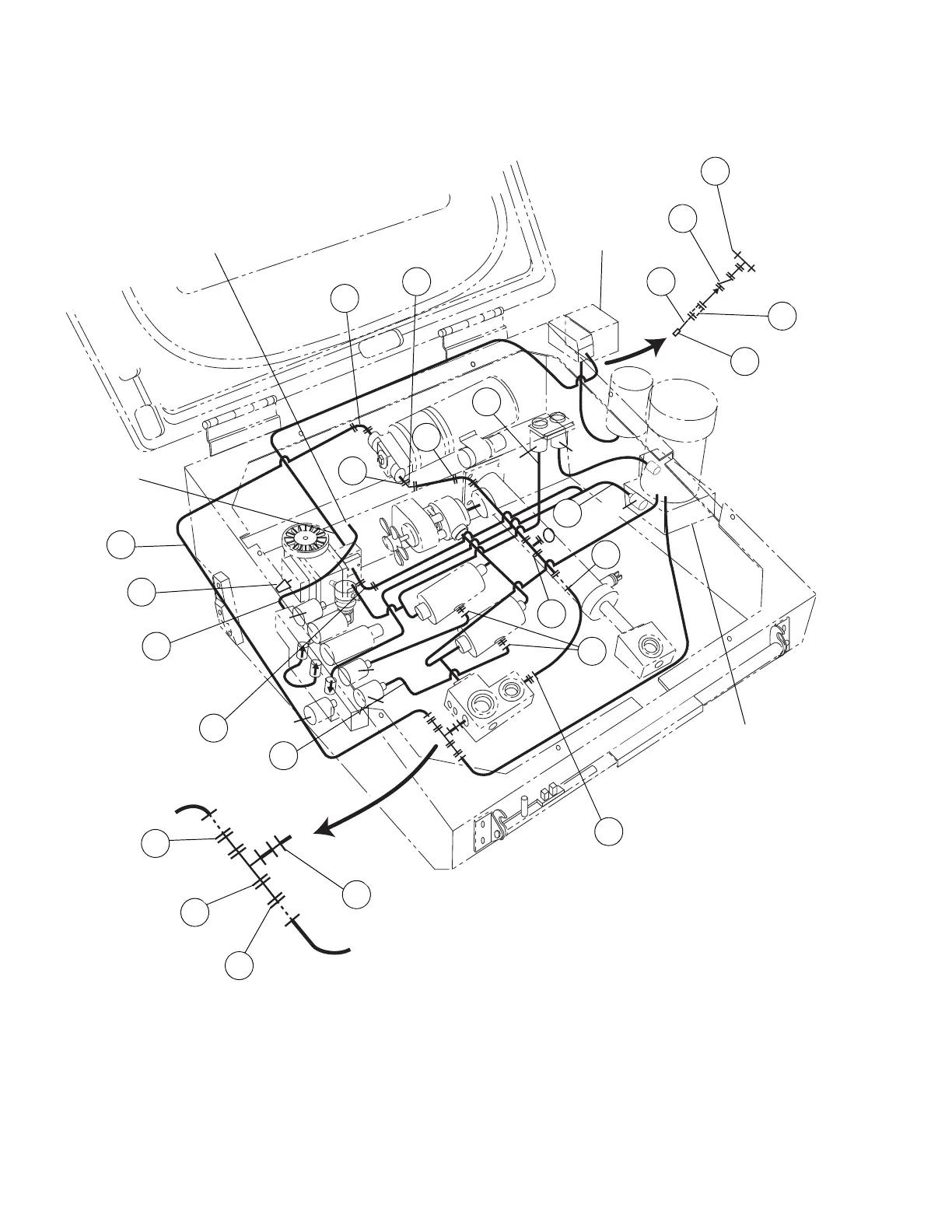

Figure 11. Piping and Components

See Figure 8 Sterile

Filter Housing

Assembly

SOL1

See Figure 9

Drain Block

See Figure 7

Float Block

Assembly

To Bulk Head Connector

See Figure 12

SOL3

SOL4

LS5

LS2

CK6

CK5

CK7

SOL2

COMP

CK8

TC2

CP1&2

CK4

LS6

SOL8

HTR1

SOL5

CK2

LS3

FLT2

FLT1

CK4

CK11

SOL7

CK1

CK3

PR2

CK11
