33
764333-676
S
V
C
DESCRIPTION
FIG. &
ITEM
NO.
PART
NUMBER
UNITS PER
ASSEMBLY

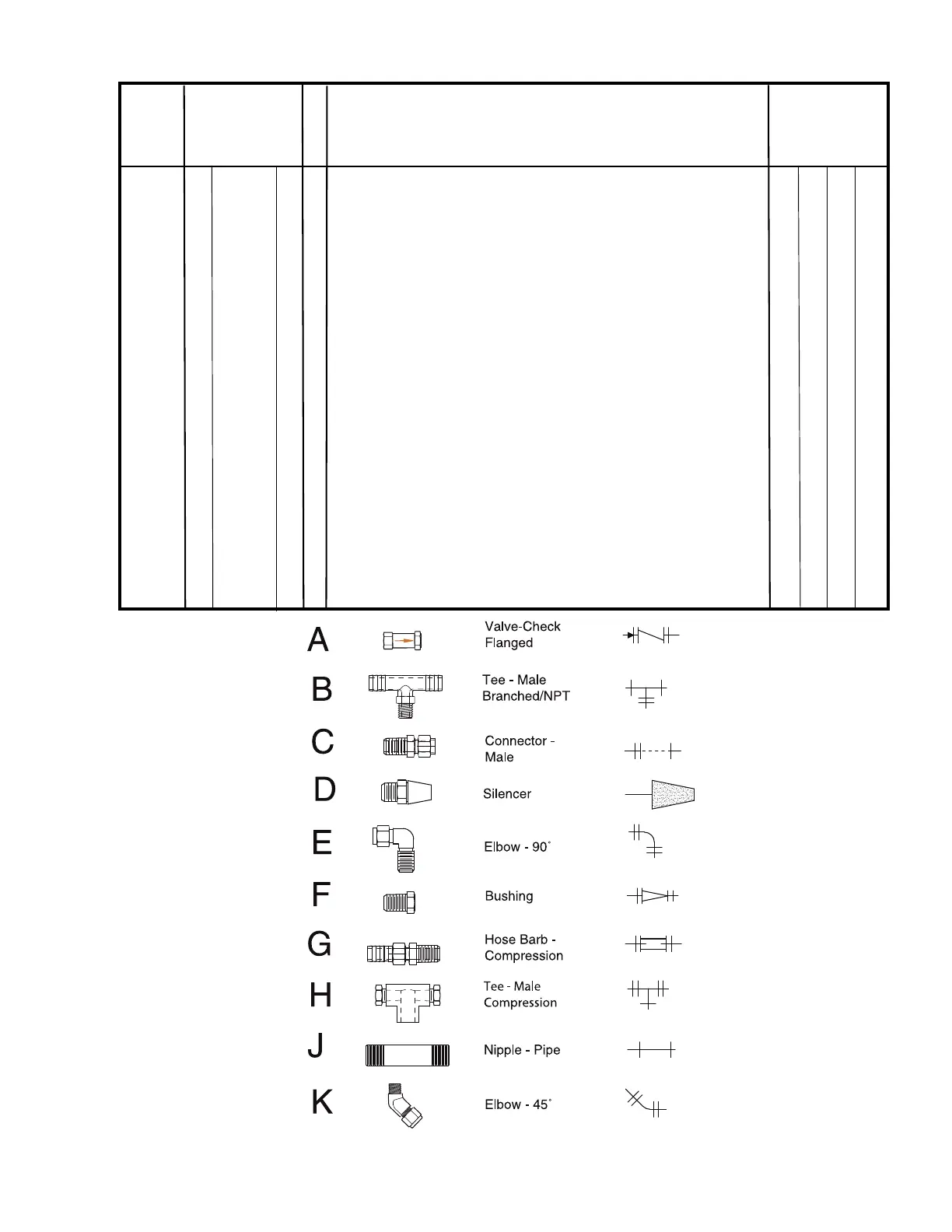

11- PIPING AND COMPONENTS ........................................................... X
(Locations represented by schematic designations)
1 100459 CONNECTOR, Tubing, Modified, (CK10)........................................... 1
2 400219 VALVE, Anti-siphon Check (CK10) (Type A)...................................... 1
3 400426 TEE, Male Branch (CK10) (Type B).................................................... 1
4 400427 HOSE, Barb (CK10) (Type G)............................................................. 1
5 400267 SILENCER, Air (COMP) (Type D) ...................................................... 1
6 400142 ELBOW, Male (COMP) (Type E) ........................................................ 1
7 400272 BUSHING (P2) (Type F) ..................................................................... 1
8 400088 TEE, Union, 1/8" NPT (LS6) (Type H) ................................................ 1
9 400087 NIPPLE, Pipe (TC2) (Type J).............................................................. 1
10 400141 CONNECTOR, Male (CP1 and 2) (Type C)........................................ 1
11 400366 CONNECTOR, Male (CP1 and 2) (Type C)....................................... 1
12 400375 CONNECTOR, Male (CP1 and 2) (Type C)....................................... 1
13 400376 ELBOW, Male, 90° (P2) (Type E) ....................................................... 2
14 450836 ELBOW, Male, 45° (P2) (Type K) ....................................................... 2
15 400143 CONNECTOR, Male (Pinch Valve) (Type C)..................................... 2
16 613009 TUBING, Polyethylene, 3/16" ID x .25 OD.......................................... A/R
17 613027 TUBING, Polyethylene, 1/4" ID x .25 OD............................................ A/R
18 613007 TUBING, Polyethylene, 1/4" ID x .375 OD.......................................... A/R
19 400245 PADDING, Foam, Black (Not Shown)................................................. A/R
To Next Page
