Stihl GS 461

29GS 461

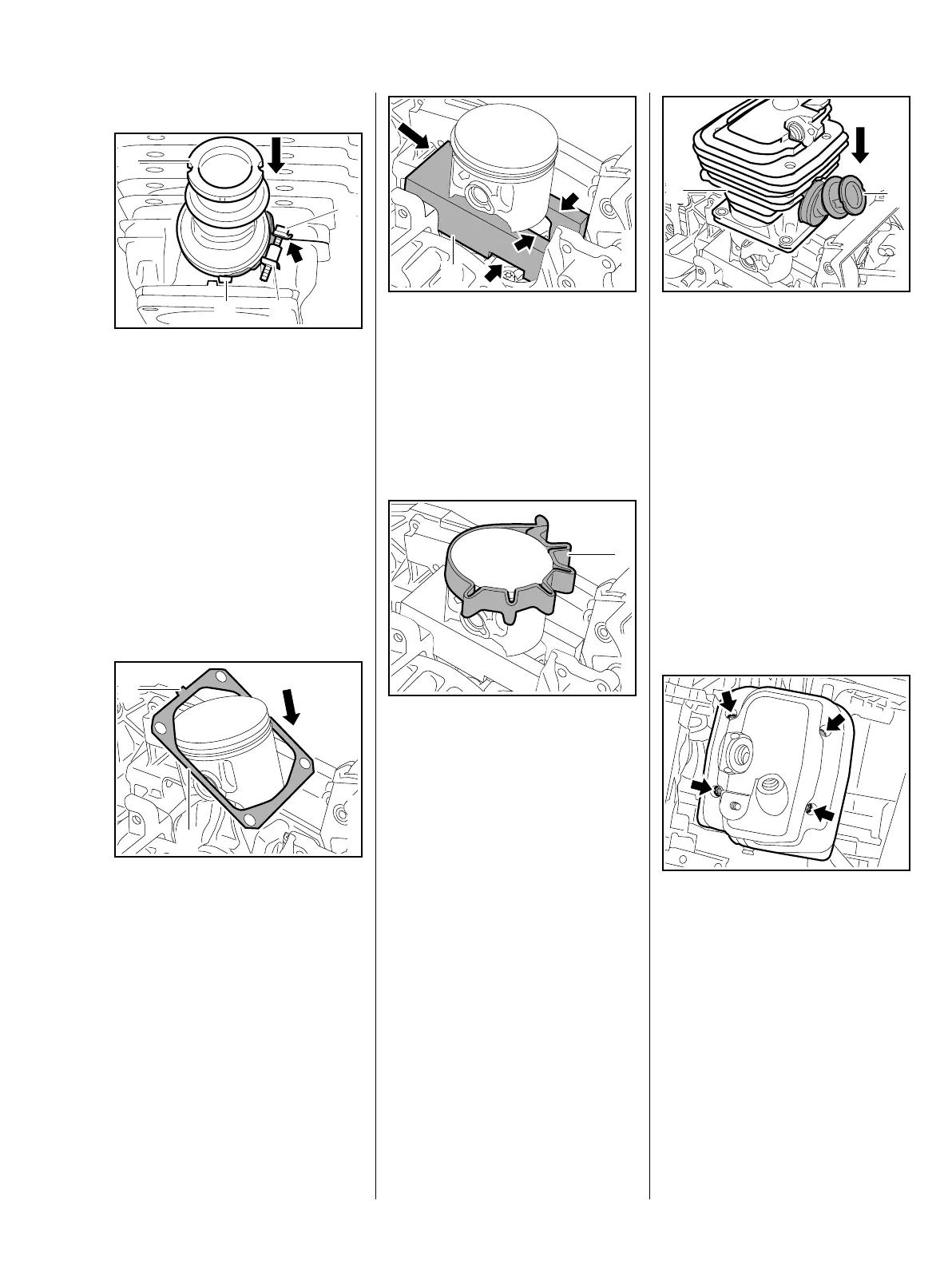

Installation
– Apply STIHL press fluid to the
inside of the intake elbow, b 12
: Push intake elbow (1) onto the
intake stub so that the tab (2) on
the right rests against the raised
part
: Push on hose clip (3) – the screw
head (4) must align with the
cooling fin (arrow)
: Tighten screw (4) as far as
possible
: Align new cylinder gasket (1) so
that the embossing faces
upwards
: Guide new cylinder gasket (1)
over the piston so that the tab (2)
faces the guard
3443RA092 TG
2
3
1
4
1
3443RA093 TG
2
: Align piston support (1)
5910 893 5300 so that the
recesses (arrows) engage over
the flange, then push between
piston and crankcase
Avoid damage to the cylinder
gasket.
– Coat piston, piston rings and
inside of cylinder with oil, b 12
– Ensure that piston rings are
correctly positioned, b 5.8
: Use the clamping strap (1)
0000 893 2600 to compress the
rings around the piston
The clamping strap (1) must be
fitted in such a way that the piston
rings do not protrude beyond the
piston sides.
1
3443RA094 TG
3443RA095 TG
1
: Orient cylinder (1) so that the
intake elbow (2) faces the tank
casing
When fitting the cylinder over the
piston, ensure that the clamping
strap securely encloses the piston
and that none of the piston rings
protrudes
– danger of breakage.
: Slide cylinder over piston; the
clamping strap is removed at the
same time
– Remove clamping strap and
piston support
: Fit screws (arrows) and secure
cylinder with gasket.
: Tighten the screws through the
holes (arrows) crosswise
3443RA096 TG
2
1
3443RA099 TG
