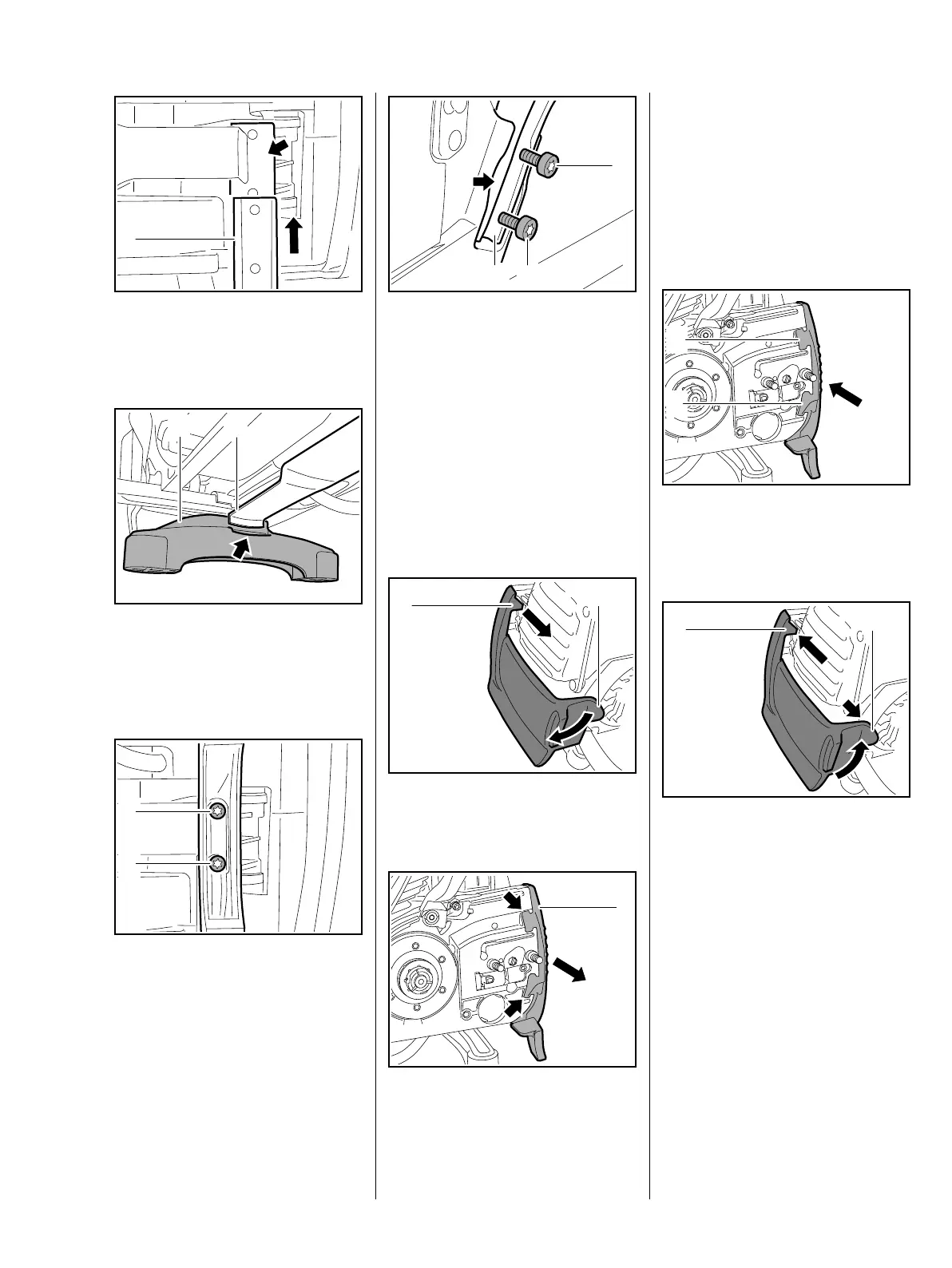

: Fit handlebar (1) on the bottom of
the tank housing into the handle
mount (arrow)
: Orient support (1) on the bottom
of the tank housing so that it
engages with the recess (arrow)
in the tab (2)
: Screw in screws (1) on the
bottom of the tank housing
1
2411RA090 TG2411RA091 TG
1
2
1
1
2411RA092 TG
: Position handlebar (1) on the
side handle mount (arrow)
: Screw in screws (2)
– Tighten all 4 screws
8.3 Guard
– Remove side plate, b 8.1.2
: Prise out plug (1) and pull out
tab (2)
: Pull guard (1) out of the mounts
(arrows) and remove
3443RA354 TG
1 2
2
2411RA093 TG
2
1
2411RA094 TG
1
– Check guard, replace if
necessary
Installation
– Use STIHL press fluid to simplify
the following assemblies, b 12
: First, press the bottom stud (1),
then the top stud (2) completely
into the mounts
: Press in tab (1) between the
housing fins and press the
plug (2) on the ignition side into
the opening (arrow) so that the
profiles engage with each other
– Reassemble remaining parts in
reverse order
