Stihl GS 461

57GS 461

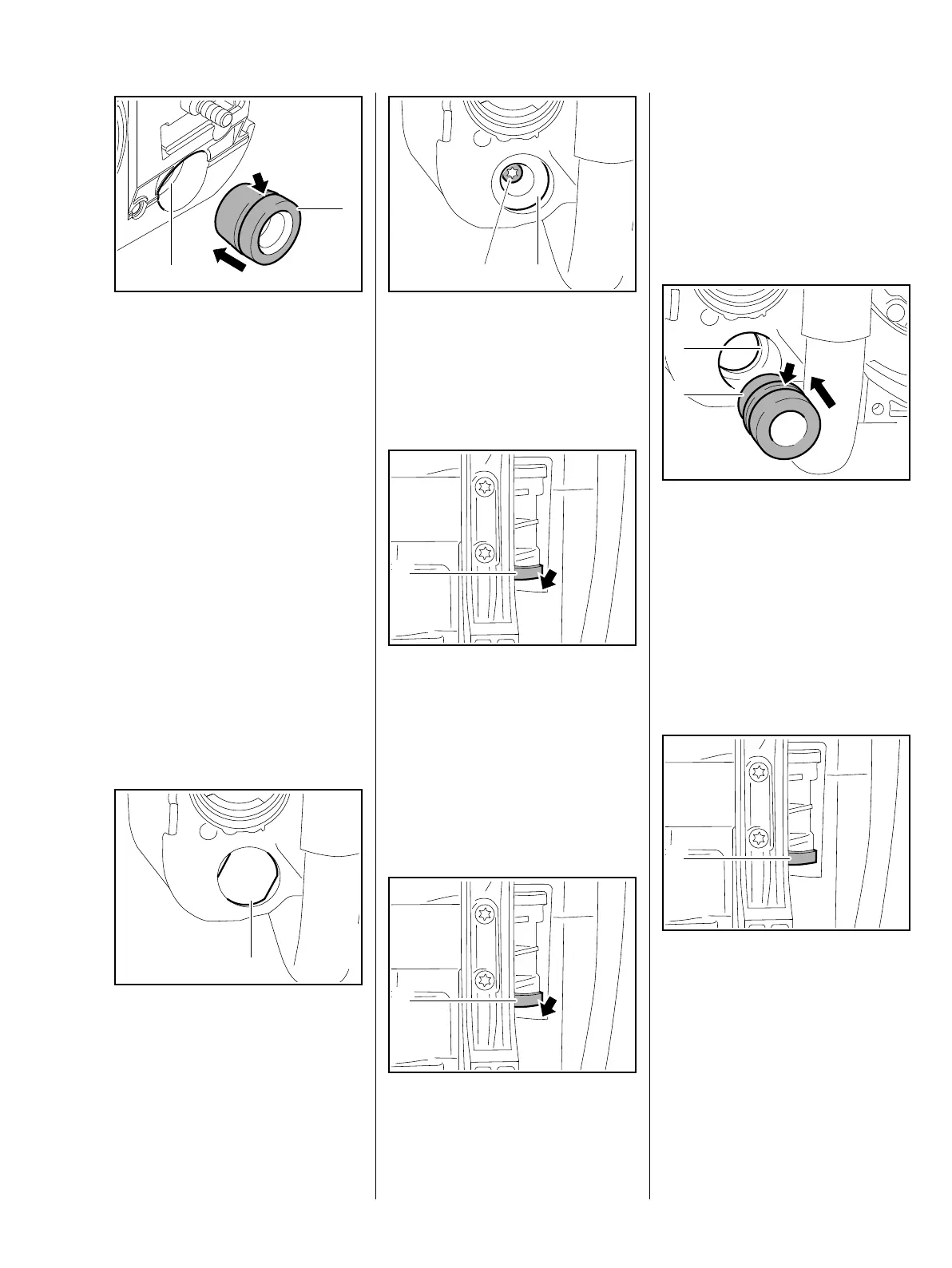

– Use STIHL press fluid to simplify
assembly, b 12
: Press ring buffer into the hole
with the smaller diameter (1)
pointing towards the housing until
the groove (arrow) is completely
flush with the ridge (2)
– Insert and tighten the screw
– Press plug into the ring buffer as
far as it will go
– Reassemble remaining parts in
reverse order
8.1.3 Ring buffer guard /
ignition side
– Remove guard, b 8.3
: Pry out plug (1)
2411RA081 TG
2
1
1
2411RA082 TG
: Remove screw (1) and prise out
ring buffer (2)
– Examine the ring buffer, replace if
necessary
: Remove rubber ring (1) from stop
dome of the tank housing and pull
through the hole (arrow) of the
crankcase
– Check rubber ring, replace if
necessary
Installation
– Use STIHL press fluid to simplify
assembly, b 12
2411RA083 TG
1 2
2411RA084 TG
1
2411RA084 TG
1
: Push rubber ring (1) through the
hole (arrow) of the crankcase and
press as far as it will go onto the
stop dome of the tank housing
Rubber ring must not become
jammed between the ring buffer and
tank housing.
– Use STIHL press fluid to simplify
assembly, b 12
: Press ring buffer into the hole
with the smaller diameter (1)
pointing towards the housing until
the groove (arrow) is completely
flush with the ridge (2)
– Insert and tighten the screw
Rubber ring (1) must be fitted
between the tank housing and
crankcase.
– Reassemble remaining parts in
reverse order
2411RA086 TG
2
1
1
2411RA087 TG
